Most x-ray tubes in use today are "filled" with a vacuum. In a typical vacuum x-ray tube, electrons accelerated from a heated cathode toward a metal anode by a large potential difference. Changing the filament temperature changes the electron current — a hotter cathode releases more electrons than a cold one..
In this regard, why does the X ray tube contain a high vacuum?
The X-ray tube contains a vacuum in order to accelerate the electrons with maximum efficiency. The electrons are accelerated across a potential difference ranging from 40 to 120 kV in a diagnostic X-ray tube.

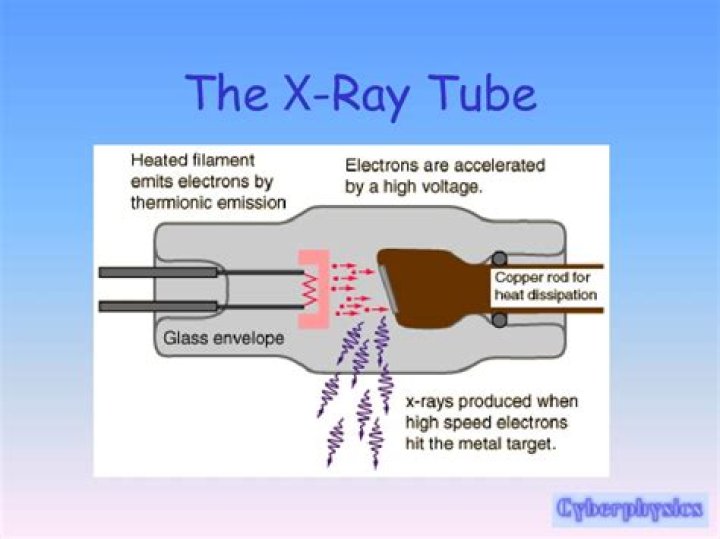

Also Know, how are X rays produced in vacuum tubes? X-rays are produced when fast electrons hit matter. Fast electrons are produced in a high vacuum tube by setting them free from the cathode, accelerating them through a high voltage, and having them hit the metal anode. These tubes basically consist of a filament inside an anode cylinder.
Similarly one may ask, what is the purpose of the X ray tube?
It functions as a shield and absorbs radiation, except for the radiation that passes through the window as the useful x-ray beam. Its relatively large exterior surface dissipates most of the heat created within the tube.
Why does the anode rotate in an X ray tube?
The anode rotates because the electrons are focused onto a small area of the anode to generate an intense X-ray source. However, this also creates very large heating effects which affect the X-ray radiation intensity. The rotating anode tube is an improvement of the Coolidge tube.
Related Question Answers
Do vacuum tubes emit radiation?
Radiation cannot be caused unless there is a heated cathode, and an anode, contained in a special vacuum tube. But ozone can be smelled then.What is anode and cathode?
Definition: The anode of a device is the terminal where current flows in from outside. The cathode of a device is the terminal where current flows out. By current we mean the positive conventional current. Since electrons are negatively charged, positive current flowing in is the same as electrons flowing out.Why is a rotating anode used?
The reason behind the introduction of rotating anodes is related to the dispersal of heat. In the case of a rotating anode tube, the heat of the incoming cathode beam is dispersed evenly across the entire surface of the anode as it rotates. This enables rotating anode users to perform longer scans and at higher doses.How are Xrays created?
X-rays can be generated by an X-ray tube, a vacuum tube that uses a high voltage to accelerate the electrons released by a hot cathode to a high velocity. The high velocity electrons collide with a metal target, the anode, creating the X-rays.What is the anode made of?
The anode (positive electrode ) is made from impure copper and the cathode (negative electrode) is made from pure copper.What do you mean by anode?
An anode is the electrode in a polarized electrical device through which current flows in from an outside circuit. Cathodes get their name from cations (negatively charged ions) and anodes from anions (positively charged ions). In a device that consumes electricity, the anode is the charged positive electrode.How fast does the anode rotate?
Rotating Anode X-ray Tubes. During operation, a large disk-shaped tungsten anode is rotated at high speed (3000 to 9000 revolutions per minute). The motive force for the rotation is provided by an induction motor the windings of which are housed outside the tube.
