Why pneumatic test is dangerous than Hydrotest?

Pneumatic tests are potentially more dangerous than hydrostatic tests because of the higher level of potential energy stored during compressing the gas. Care must be exercised to minimize the chance of brittle failure during testing by initially assuring the system is suitable for pneumatic testing.

.

Also asked, why hydro test is required?

A hydrostatic test is a way in which pressure vessels such as pipelines, plumbing, gas cylinders, boilers and fuel tanks can be tested for strength and leaks. Testing of pressure vessels for transport and storage of gases is very important because such containers can explode if they fail under pressure.

Subsequently, question is, why do we do the pressure testing for piping and vessels? Pressure testing is required by most piping codes to verify that a new, modified, or repaired piping system is capable of safely withstanding its rated pressure and is leak tight.

Also Know, what is pneumatic pressure testing?

The purpose of pneumatic strength testing is to verify that a system may be safely subjected to its maximum operating pressure by testing it beyond its designed pressure limit. The pneumatic strength test uses air, or an inert gas medium such as nitrogen, to pressurize the system to 110% of its designed pressure limit.

Can you Hydrotest against a valve?

Ball valves and gate valves are to be tested in the ½ open position (preferred position). Plug valves may be tested in either the full open or full closed position. Pressure testing against any closed ball or gate valve shall not be permitted.

Related Question Answers

Is hydrostatic testing NDT?

Hydrostatic Pressure Testing is a nondestructive (NDT) method of finding leaks or verifying performance and durability in pressure vessels such as pipe, tubing, and coils. The test also can be performed with pressurized air, but is generally done with the vessel under water for safety reasons.

Why pneumatic test is dangerous?

Pneumatic tests are potentially more dangerous than hydrostatic tests because of the higher level of potential energy stored during compressing the gas. Care must be exercised to minimize the chance of brittle failure during testing by initially assuring the system is suitable for pneumatic testing.

How much is hydrostatic testing?

The cost of a hydrostatic test through an existing cleanout averages between $250 and $400.

What is Hydrotest pressure?

What is hydrotest pressure and how to calculate the hydrotest pressure. 08:07:00 Posted by Piping Desiging. Hydro Test Pressure. Hydro test is the technique in which pipes, pressure vessels, gas cylinders, tanks are tested at required design pressure of the system or pipes or vessel to check the leak and strength.

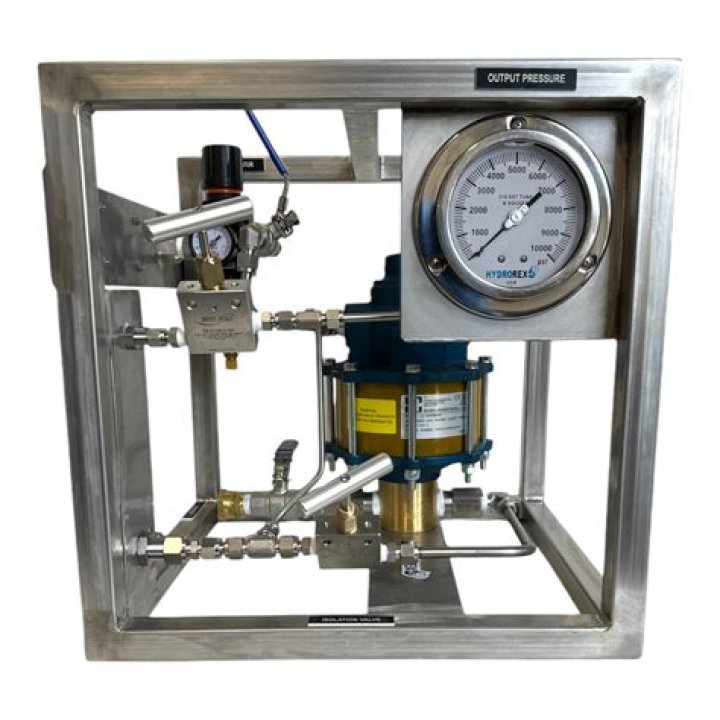

What is Hydrotest manifold?

A manifold which can be hired out individually or with a pump for testing pressures between 1000 and 3000psi. A built in unloader valve lets the operator to turn up the pressure during test.

Why is nitrogen used for pressure testing?

The two main areas nitrogen gas is used within HVAC are for brazing and pressure testing copper coil. Nitrogen is used during the brazing process to purge oxygen from the brazed surface. Nitrogen also prevents the formation of moisture during the leak testing process, thereby eliminating oxidation of the metal.

How do you calculate test pressure?

Hydrostatic Test Pressure Calculation

1. Hydrostatic Test Pressure, P = 2St / D. where,
2. P = Hydrostatic test pressure in psi. S = pipe wall stress in psi.
3. Current computation using 15 KSI : S for 304 = 50 % of 205 N/mm2 = 102.5 N/mm2 = 14.86 KSI ~ 15KSI.
4. Nominal Wall Thickness = 4.57 mm. Nominal Outside Diameter = 323.85 mm.
5. P = {2 (14862.5) (4.57) } / 323.85.

What is the maximum pneumatic test pressure?

The pneumatic test pressure shall not be less than 1.2 nor more than 1.5 times the design pressure of the piping system. It shall then be reduced to the lower of design pressure or 100 psig [700 kPa (gage)] and held for such time as may be necessary to conduct the examination for leakage.

What is the test pressure?

Test Pressure is the pressure required so that engineers can conduct a hydrostatic test under safe pressure conditions. Hydrostatic Testing usually consists of visual detection which may be carried out on a vessel such as a pipe. This is a common test conducted to verify the safety of the pressure vessels.

Where does hydrostatic pressure come from?

Hydrostatic pressure is the pressure that is exerted by a fluid at equilibrium at a given point within the fluid, due to the force of gravity. Hydrostatic pressure increases in proportion to depth measured from the surface because of the increasing weight of fluid exerting downward force from above.

What is pneumatic pipe testing?

Pneumatic testing involves the hazard of released energy stored in compressed gas. Particular care must therefore be taken to minimize the chance of brittle failure during a pneumatic leak test. Test temperature is important in this regard and must be considered when the designer chooses the material of construction.

How do you calculate the energy stored in a pneumatic test?

SAFE DISTANCE COMMONLY USED FOR PNEUMATIC TESTS For Stored Energy Less than 27,134KJ Minimum safe Distance= +100Ft =31Mtr For Stored Energy Greater than 27,134KJ Minimum safe Distance= +150Ft =46Mtr The maximum calculated stored energy of any vessel or piping system being pneumatically pressure tested should not be

How do you calculate Hydrotest pressure for a pipe?

Hydrostatic Pressure Calculation for Piping: Hydrostatic Pressure = 1.5 x Design Pressure. if the stress value of the Pipe material at design temprature is less than the stress value at test temprature then hydrostatic pressure should increase proportionaly.

What is the difference between hydraulic and hydrostatic?

A hydraulic drive system is a quasi-hydrostatic drive or transmission system that uses pressurized hydraulic fluid to power hydraulic machinery. The term hydrostatic refers to the transfer of energy from pressure differences, not from the kinetic energy of the flow.

What is a leak test?

Leak Test Solutions. Leak testing is used to determine whether products pass a specified leak limit. Leaks occur when a gas or liquid flows from a higher pressure side to a lower pressure side of a part and are caused by holes, cracks, weak seals or permeable areas in a product.

What is the purpose of pressure testing?

The purpose of the pressure testing is to investigate the various limits of the pipeline which will test areas such as the reliability, maximum capacity, leaks, joint fittings and pressure. When pressure testing, the amount of pressure put onto the vessel is always considerably more than the normal operating pressure.

What is design pressure?

Design pressure is the maximum pressure that the system that can be exposed to and sets the system relief valve at the same pressure. This should be below MAWP and based on company standards can vary from 10% to 25% above the maximum operating pressure of the system.

What is test package in piping?

A test package is a series of documents and forms that describe how you perform the required tests/inspections and record the results.

What is hydro test in piping?

Hydrostatic (Hydro) Testing is a process where components such as piping systems, gas cylinders, boilers, and pressure vessels are tested for strength and leaks. Hydro tests are often required after shutdowns and repairs in order to validate that equipment will operate under desired conditions once returned to service.
