Why is negative feedback used in RC coupled amplifier?

In an RC coupled amplifier ,even though it givesus a better voltage gain, current gain , bandwidth, faithfulamplification,we need to minimise or maximise the gain in order tothat process we need feedback. NEGATIVE Feedback:feedback signal is subtracted from sourcesignal.

In respect to this, why is negative feedback used in amplifiers?

The applied negative feedback can improve itsperformance (gain stability, linearity, frequency response, stepresponse) and reduces sensitivity to parameter variations due tomanufacturing or environment. Because of these advantages, manyamplifiers and control systems use negativefeedback.

what are the advantages of RC coupled amplifier? Advantages of RC Coupled Amplifier The frequency response of RC amplifier providesconstant gain over a wide frequency range, hence most suitable foraudio applications. The circuit is simple and has lower costbecause it employs resistors and capacitors which arecheap.

Also to know is, why is RC coupling used in amplifiers?

Resistance-capacitance (RC) coupling inamplifiers are most widely used to connect the outputof first stage to the input (base) of the second stage and so on.This type of coupling is most popular because it is cheapand provides a constant amplification over a wide range offrequencies.

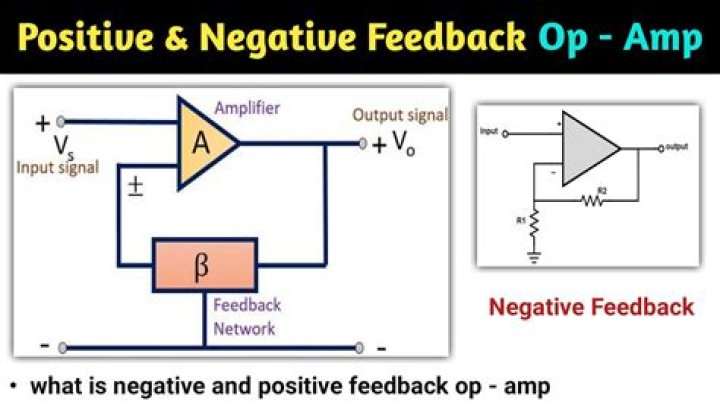

What is positive and negative feedback amplifier?

well positive feedback is when a part of theoutput is given back to the input so that the output increasesmore. this is done to produce oscillations. and negativefeedback is when a part of the output is given back to theinputs so that the output decreases more. this is done to stabilizethe gain of an amplifier.

What is the advantage of negative feedback?

There are many advantages to usingfeedback within a systems design, but the mainadvantages of using Negative Feedback in amplifiercircuits is to greatly improve their stability, better tolerance tocomponent variations, stabilisation against DC drift as well asincreasing the amplifiers bandwidth.

What is an example of a negative feedback loop?

Examples of processes that utilise negativefeedback loops include homeostatic systems, such as:Thermoregulation (if body temperature changes, mechanisms areinduced to restore normal levels) Blood sugar regulation (insulinlowers blood glucose when levels are high ; glucagon raises bloodglucose when levels are low)

Which oscillator uses both positive and negative feedback?

The oscillator uses positive and negativefeedback. The positive feedback helps the oscillationsto build up when the power is turn on. After the output signalreaches the desired level the negative feedback reduces theloop gain is 1. The positive feedback is through the leadlag network to the non-inverting input.

What are the characteristics of negative feedback amplifier?

Current-Shunt Feedback As the feedback circuit is connected in serieswith the output, the output impedance is increased and due to theparallel connection with the input, the input impedance isdecreased. Let us now tabulate the amplifier characteristicsthat get affected by different types of negativefeedbacks.

What is feedback factor?

Feedback factor is the fraction of. the amplifieroutput signal fed back to the amplifier input. In. the figure, afeedback voltage divider defines this fraction. through theoutput to input transfer response.

What are the disadvantages of negative feedback?

Disadvantages of negative feedback amplifiers are asfollows:

Reduction in gain.
Reduction in input resistance in case of voltage shunt andcurrent shunt type amplifiers.
Increase in output resistance in case of current shunt andcurrent series feedback amplifiers.

What are the units of slew rate?

In electronics, slew rate is defined as thechange of voltage or current, or any other electrical quantity, perunit of time. Expressed in SI units, the unitof measurement is volts/second or amperes/second or the unitbeing discussed, (but is usually expressed inV/μs).

Which feedback is used in oscillator?

Originally Answered: why is only positivefeedback is used in oscillators? Positive feedback isused to have more gain . For oscillator the gain should be atmaximum to have sustained oscillations . On other hand negativefeedback decreases the gain but gives stability to the system.

What is the advantage of RC coupled amplifier?

There are some disadvantages of RC coupledamplifier which are given below, It has low voltage and powergain. It is unsuitable for low frequency application. It has poorimpedance matching because its output impedance is several timeslarger than the device, at its end terminal.

What is RC coupled mean?

A Resistance Capacitance (RC) CoupledAmplifier is basically a multi-stage amplifier circuit extensivelyused in electronic circuits. This is further amplified and ispassed-on as an output of the second stage and is available at thecollector terminal of Q₂ after being shift by180^o in its phase.

What is 3dB bandwidth?

3dB bandwidth is the range of frequencyconsidered useful where the signal is above half of its maximumpower. see the attached frequency/power graph.

Why do we need multistage amplifier?

The impact of input and output loading can be minimizedby cascading two amplifiers with appropriate input andoutput characteristics. Multistage cascading can be used tocreate amplifiers with high input resistance, low outputresistance and large gains.

What is loading effect in RC coupled amplifier?

Jan 19, 2004 220 0. loading refers to thephenomena that occurs when a load circuit having loweffective impedance is connected to a supply circuit having highereffective impedance. this happens because the net parallelresistance is lower than any individual resitors making up theparallel combination.

What is resistance capacitance coupling?

Capacitive coupling is the transfer ofalternating electrical signals or energy from one segment of acircuit to the other using a capacitor. When used forcoupling, the capacitor offers a highresistance or impedance to the d.c voltage whileproviding a low resistance path for the desired acsignal.

What is the use of coupling capacitor?

A coupling capacitor is a capacitor whichis used to couple or link together only the AC signal fromone circuit element to another. The capacitor blocks the DCsignal from entering the second element and, thus, only passes theAC signal.

What do you mean by amplifier?

An amplifier is an electronic device thatincreases the voltage, current, or power of a signal. Amplifiersare used in wireless communications and broadcasting, and inaudio equipment of all kinds. They can be categorized aseither weak-signal amplifiers or poweramplifiers.

What do you mean by transistor?

A transistor is a device that regulates currentor voltage flow and acts as a switch or gate for electronicsignals. Transistors consist of three layers of asemiconductor material, each capable of carrying a current. Atransistor regulates current or voltage flow and acts as aswitch or gate for electronic signals.

Why the gain of RC coupled amplifier is constant in mid frequency region?

In mid-frequency range, the reactance ofcoupling capacitor decreases and the gain increases.As the two different effects neutralise each other, gain of RCcoupled amplifier is constant in mid-frequencyrange.
