Which seismic wave can penetrate core but refracts?

P-waves pass through both mantle and core, but are slowed and refracted at the mantle / core boundary at a depth of 2900 km. S-waves passing from the mantle to the core are absorbed because shear waves cannot be transmitted through liquids. This is evidence that the outer core does not behave like a solid substance.

Keeping this in view, which seismic wave refracts and Cannot penetrate the core?

Answer: P waves and S waves travel through the interior of the earth. P waves are the Primary waves and S waves are the Secondary waves. P waves can travel in both solid as well as in liquid (outer core) whereas S wave can travel only through solid.

which type of seismic wave Cannot pass through Earth's core? The secondary seismic waves cannot pass through the liquid outer core and are not detected more than 104° (approximately 11,570 km or 7,190 mi) from the epicenter. P-waves that have been converted to S-waves on leaving the outer core may be detected beyond 140 degrees.

Beside above, which seismic wave can penetrate the outer and inner core?

The P-wave shadow is not quite so simple. These waves can penetrate the outer core but being a liquid its seismic propagation velocity is slow relative to the lower mantle (Figure 3.3. 1) meaning that the P-wave speed actually drops in the outer core.

Why can S waves not travel through liquids?

S-waves cannot travel through liquids. When they reach the surface they cause horizontal shaking. Liquids don't have any shear strength and so a shear wave cannot propagate through a liquid. Think of a solid material, like a rock.

What are two types of surface waves?

The two main types of surface waves are Love waves and Rayleigh waves.

In what direction do S waves move?

S waves move rock particles up and down, or side-to-side--perpendicular to the direction that the wave is traveling in (the direction of wave propagation).

Which seismic wave can travel to the mantle?

P-waves pass through both mantle and core, but are slowed and refracted at the mantle / core boundary at a depth of 2900 km. S-waves passing from the mantle to the core are absorbed because shear waves cannot be transmitted through liquids.

How are earthquake waves produced?

Seismic waves are usually generated by movements of the Earth's tectonic plates but may also be caused by explosions, volcanoes and landslides. When an earthquake occurs shockwaves of energy, called seismic waves, are released from the earthquake focus.

Which seismic waves stay on Earth's surface?

There are three major kinds of seismic waves: P, S, and surface waves. P and S waves together are sometimes called body waves because they can travel through the body of the earth, and are not trapped near the surface. A P wave is a sound wave traveling through rock.

Do waves move out through the ground from the source of an earthquake?

For instance, seismic waves carry energy from the source of the shaking outward in all directions (not in one direction only as the setup shows). 7. (Optional) Both primary and secondary waves are body waves (pass through the interior of the Earth). Surface waves travel along the Earth's surface.

Are faults only found near the edges of tectonic plates?

Earthquakes can also occur far from the edges of plates, along faults. Faults are cracks in the earth where sections of a plate (or two plates) are moving in different directions. Faults are caused by all that bumping and sliding the plates do. They are more common near the edges of the plates.

Which of the following are secondary causes of damage from an earthquake?

Landslides - In mountainous regions subjected to earthquakes ground shaking may trigger landslides, rock and debris falls, rock and debris slides, slumps, and debris avalanches. These are secondary effects. Liquefaction - Liquefaction is a processes that occurs in water-saturated unconsolidated sediment due to shaking.

What waves can penetrate and propagate through the Earth's core?

Types of wave Seismic waves are fundamentally of two types, compressional, longitudinal waves or shear, transverse waves. Through the body of the Earth these are called P-waves (for primary because they are fastest) and S-waves (for secondary since they are slower).

Where is the Earth's core located?

Earth's core is the very hot, very dense center of our planet. The ball-shaped core lies beneath the cool, brittle crust and the mostly-solid mantle. The core is found about 2,900 kilometers (1,802 miles) below Earth's surface, and has a radius of about 3,485 kilometers (2,165 miles).

What type of faulting would be most likely to occur along transform faults?

The fracture zone that forms a transform plate boundary is known as a transform fault. Most transform faults are found in the ocean basin and connect offsets in the mid-ocean ridges. A smaller number connect mid-ocean ridges and subduction zones.

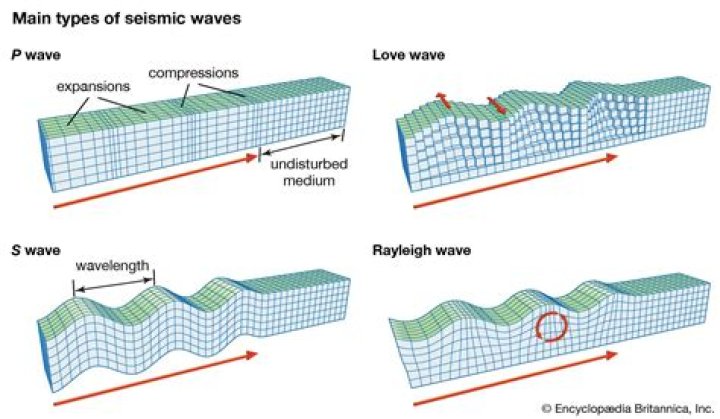

What are the 4 types of seismic waves?

Four types of seismic waves| Specifications of all types of seismic waves.

P- Waves (Primary waves)
S- Waves (Secondary waves)
L- Waves (Surface waves)
Rayleigh waves.

Do S waves travel through liquid?

S-waves are shear waves, which move particles perpendicular to their direction of propagation. They can propagate through solid rocks because these rocks have enough shear strength. This is why S-waves cannot propagate through liquids.

Can P waves travel through the inner core?

P-waves travel through the fluid layers of the Earth's interior, and yet they are refracted slightly when they pass through the transition between the semisolid mantle and the liquid outer core.

What are the 3 types of seismic wave?

Earthquakes produce three types of seismic waves: primary waves, secondary waves, and surface waves. Each type moves through materials differently. In addition, the waves can reflect, or bounce, off boundaries between different layers.

What materials can S waves travel through?

P waves are compressional waves. Therefore, they too can travel through solids, liquids and gases. Shear waves can travel only through solids. Thus, S waves (which are a type of shear wave)will travel through solids and but will be absorbed by liquids and gases.

What layers can S waves travel through?

Unlike P waves, S waves don't move straight through the Earth. They only travel through solid material, and so are stopped at the liquid layer in the Earth's core.

What is the difference between P waves and S waves?

Wave Speeds P waves travel at speeds between 1 and 14 km per second, while S waves travel significantly slower, between 1 and 8 km per second. The S waves are the second wave to reach a seismic station measuring a disturbance. The difference in arrival times helps geologists determine the location of the earthquake.

What is P wave and S wave?

P-waves and S-waves are body waves that propagate through the planet. On the other hand, S-waves are shear waves, which means that the motion of the medium is perpendicular to the direction of propagation of the wave. The energy is thus less easily transmitted through the medium, and S-waves are slower.
