Which network topology provides the greatest redundancy?

Mesh Topology

.

Also, which network topology is best and why?

In a Star Network the best advantage is when there is a failure in cable then only one computer might get affected and not the entire network. Star topology is used to ease the probabilities of network failure by connecting all of the systems to a central node.

Furthermore, which topology is the most redundant and most expensive? Star topology is the most popular way to connect a computer in a workgroup. It is expensive due to the cost of the hub. Star topology uses a lot of cables, which makes it the most costly network to set up as you also have to trunk to keep the cables out of harm.

Beside above, which network topology provides the highest security and reliability?

A full mesh topology provides a connection from each node to every other node on the network. This provides a fully redundant network and is the most reliable of all networks.

What is the best topology to use for a LAN?

If you look at the evolution of the industry, “star” is by far the most common LAN topology.

• Eliminates searching entire buildings for breaks, such as in a “bus” layout (thick or think coax ethernet).
• Typically utilizes inexpensive UTP cabling.
• Centralizes the required electronics for troubleshooting.

Related Question Answers

Which topology is fastest?

Theoretically the fastest topology should be mesh topology. But the best topology is star topology.

What are the 5 network topologies?

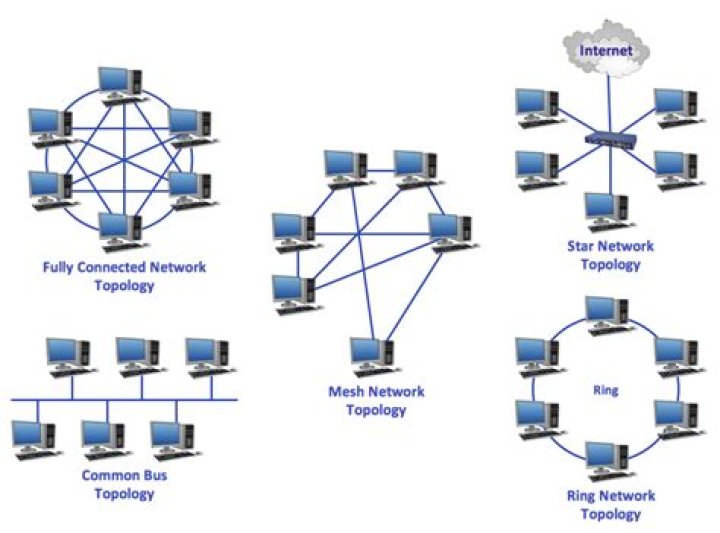

Computer Network Topology – Mesh, Star, Bus, Ring and Hybrid

• There are five types of topology in computer networks:
• In mesh topology each device is connected to every other device on the network through a dedicated point-to-point link.
• In star topology each device in the network is connected to a central device called hub.

How many topology are there?

There are four categories: Star topology, Bus topology, Ring topology and Mesh topology. Hybrid combinations of these topologies also exist. Star topology – all computers and devices are connected to a main hub or switch. The hub or switch amasses and disburses the flow of data within the network.

Where is ring topology used?

Ring topologies may be used in either LANs (local area networks) or WANs (wide area networks). Depending on the type of network card used in each computer of the ring topology, a coaxial cable or an RJ-45 network cable is used to connect computers together.

How do you do topology?

Creating a topology using the Catalog window or ArcCatalog

1. Right-click the feature dataset to which you want to add a topology, point to New, then click Topology.
2. Click Next.
3. Name the new topology and specify the cluster tolerance.
4. Click Next.
5. Next, choose the feature classes that will participate in the topology.

Why is a topology important?

Importance of network topology Plays a crucial role in performance. Helps reduce the operational and maintenance costs such as cabling costs. A network topology is a factor in determining the media type to be used to cable a network. Error or fault detection is made easy using network topologies.

Which topology is the cheapest?

Bus (line) topology:

• The simplest and cheapest to install and extend.
• Well suited for temporary networks with not many nodes.
• Very flexible as nodes can be attached or detached without disturbing the rest of the network.
• Failure of one node does not affect the rest of the bus network.

What mean by topology?

Network topology refers to the physical or logical layout of a network. It defines the way different nodes are placed and interconnected with each other. Alternately, network topology may describe how the data is transferred between these nodes. There are two types of network topologies: physical and logical.

Which topology gives highest reliability?

The topology with highest reliability is mesh topology. A network setup where each computer and network device is interconnected with one another, allowing for most transmissions to be distributed, even if one of the connections go down.

Which topology is most widely used?

Star topology is the most popular network topology in businesses today. It consists of nodes connected to a central switch or hub.

Which topology is used in Ethernet?

Bus

What is the least popular topology?

Bus topology is the type of network that contains a common communication line or cable called bus, and all the computers are connected to the bus. The bus topology is least popular because: Breaks in the communication line or cable can disable the entire network.

Which topology has the toughest fault identification?

Explanation: The star topology has a single hub. 7. Which topology has the toughest fault identification? Explanation: In the bus topology, fault identification is tougher.

Is bus topology expensive?

Disadvantages of a Star Topology Requires more cable length than a linear topology. If the hub, switch, or concentrator fails, nodes attached are disabled. More expensive than linear bus topologies because of the cost of the hubs, etc.

What is redundant topology?

Redundant Network Design Topologies. Last Updated on Tue, 29 Oct 2019 | Network Design. Redundant network designs let you meet requirements for network availability by duplicating elements in a network. Redundancy attempts to eliminate any single point of failure on the network.

How does star topology work?

In a star network, every host is connected to a central hub. In its simplest form, one central hub acts as a conduit to transmit messages. Data on a star network passes through the hub before continuing to its destination. The hub manages and controls all functions of the network.

What topologies can a can use?

For example, advantage of in the Ring Topology with dual-ring networks is, if one of the communication wire becomes shorted or broken, all the modules or nodes can still communicate.

Commonly used topologies are:

• Line / Bus Topology.
• Star Topology.
• Ring Topology.

Which type of topology has the greatest number of physical connections?

Ch 1. chapter review

Question	Question
which type of topology has the greatest number of physical connections?	a. point-to-multipoint b. star c. point-to-point d. mesh
what type of topology gives you a direct connection between two routers so that there is one communication path?	a. point-to-point b. star c. bus d. straight

What is the most common topology and technology combination in use today?

star topology
