Which is thicker 14 or 16 gauge steel?

Few people know why the thickness of steel diminishes as the gauge increases (ie: 16 gauge steel is thicker than 20 gauge steel). The 1″ thickness of the steel was measured in diminishing fractions such as 1/14″ thick, 1/16″ thick, 1/20″ thick, and so on.

In this regard, what thickness is 14 gauge steel?

15 U.S. Code § 206. Standard gauge for sheet and plate iron and steel

Number of gauge	Approximate thickness in fractions of an inch	Weight per square foot in kilograms
13	3/32	1.701
14	5/64	1.417
15	9/128	1.276
16	1/16	1.134

Also Know, what is thicker 16 gauge or 18 gauge? Gauge is the standard unit of measure for sheet steel and wire products. The lower the number, the thicker the steel. Therefore, 16 gauge is thicker than 18 gauge steel. The reason we promote using 16 gauge steel for your sinks versus 18 gauge is 16 is more rigid.

Similarly one may ask, what gauge of steel is thicker?

There are several different gauge systems used today, with specific gauge designations used for specific metal types. For example, in one gauge system, 18 gauge steel measures 0.0478 inches thick, but 18 gauge aluminum is 0.0403 inches thick.

How do I know what gauge my metal is?

How to Measure Sheet Metal Gauge Thickness

Use a tape measure to find the thickness of your sheet metal piece.
Multiply the number of millimeters by 0.03937 to convert to inches.
Compare the thickness of your sheet metal in inches to a sheet metal gauge chart to find the proper gauge of that particular piece.

How many mm is 14 gauge?

Wire Gauge to Inches and Millimeters Conversion

Gauge	Inches	Millimeters
11	0.091	2.31
12	0.081	2.06
13	0.072	1.83
14	0.064	1.63

What is 20 gauge in mm thickness?

Metal Thickness conversion chart

Conventional Gauge	Inches	Metric
24	.020 -.026"	0.5 - 0.6 mm
22	.027 - .032"	0.7 - 0.8 mm
20	.033 - .037"	0.8 - 0.9 mm
19	.038 - .042"	0.9 - 1.1 mm

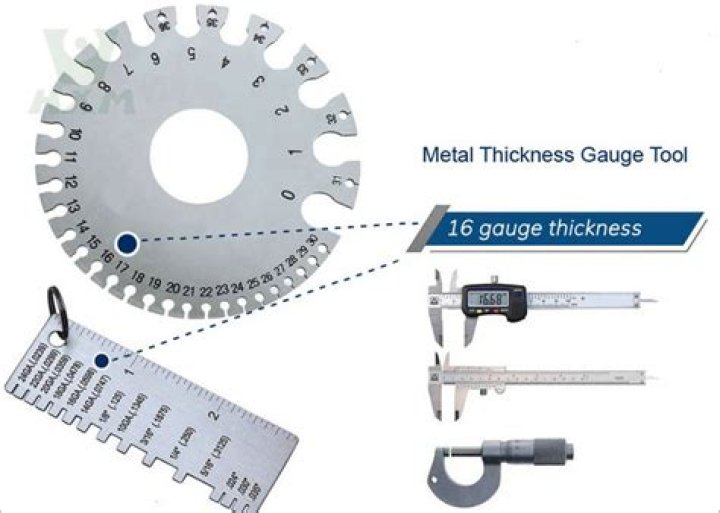

How do you measure sheet metal thickness?

Similar to wire, sheet metal thickness is measured in gauges, with a higher number indicating a thinner sheet. To measure the thickness, you can use a sheet metal gauge, which will show you thickness in both gauge number and thousandths of an inch.

What gauge sheet metal is used on cars?

Automotive sheet metal once ran in the range of 18-gauge, which was 48 thousandths of an inch thick (actually 0.0478 inch). 20-gauge became common in more recent times, and this meant 0.0359-inch-thick metal—still a lot to work with in-bumping and metal finishing.

How much is a sheet of stainless steel?

Type 304

Stainless Steel Gauge Width and Length	Weight Lbs. per Sq. Ft.	Estimated Weight per Sheet
7 ga. (.1874") x 48 x 120	7.871	314.8
10 ga. (.135") x 48 x 120	5.670	226.8
11 ga. (.120") x 36 x 120	5.040	151.2
11 ga. (.120") x 48 x 96	5.040	161.3

What is gauge thickness?

A sheet metal gauge (sometimes spelled "gage") indicates the standard thickness of sheet metal for a specific material. As the gauge number increases, the material thickness decreases. Sheet metal thickness gauges for steel are based on a weight of 41.82 pounds per square foot per inch of thickness.

How much does a 4x8 sheet of 16 gauge steel weigh?

Wire Gauges and Sheet Metal Gauges / Weights Ga = Gauge | Wgt = Weight

Ga#	Sheet Steel	Aluminum
Ga#	Ga (in.)	Wgt (lb/ft²)
18	0.0478	0.569
17	0.0538	0.639
16	0.0598	0.717

How do you convert gauges to inches?

Because you want to convert inches to mm, multiply by 25.4 so that the inch units cancel out [inches times (mm÷inches)]. So, multiply the gauge thickness in inches, 0.1644, by the conversion factor 25.4, or 0.1644x25. 4=4.17576 mm. Rounding to significant numbers gives the gauge thickness in millimeters as 4.18.

How thick is 3 32 inches?

3/32 is 0.094, which is a hair thicker than 2mm.

What is the maximum thickness of sheet metal?

6.35 mm

How strong is 12 gauge steel?

The bending strength of steel increases by approximately the square of its thickness. 12-gauge (. 106) steel is 2.86 times stronger than 14-gauge (. 075), even though it is only .

What is light gauge steel?

Light gauge steel construction is very similar to wood framed construction in principle - the wooden framing members are replaced with thin steel sections. The steel sections used here are called cold formed sections, meaning that the sections are formed, or given shape at room temperature.

What gauge is standard ductwork?

The thinnest acceptable sheet metal for ductwork used in a single dwelling is 28 gage or 0.013 and 0.018 inches for galvanized and aluminum, respectively. This measurement is for around duct smaller than 12 inches in diameter and a rectangular section no bigger than 8 inches.

What is the meaning of Ms Steel?

Definitions. A type of steel in which carbon is the primary alloying element, with the level of carbon contained in a steel being one of the most important factors governing its mechanical properties. Mild steel has no more than 1.65% manganese, 0.6% silicon or 0.6% copper.

How much does a sheet of metal cost?

Usually, the sheet metal fabrication cost ranges from $754 to $1,624 for materials and labor, at an average of $1,189. A small project using sheet metal costs as little as $300, while a large project costs as much as $2,500.

How thick is a piece of paper?

The average paper thickness in 1/10th of a millimeter (0.0039 inches.) If you perfectly fold the paper in half, you will double its thickness.

How is galvanized steel made?

Galvanized steel is a carbon steel that has been coated with zinc. The most common method of zinc coating is the hot-dip process. When the material is removed from the zinc bath and cooled a reaction to the oxygen in the air occurs. The reaction causes the zinc to become part of the steel (an iron-zinc alloy bond).

What is the best stainless steel sink gauge?

The 16 and 18 gauge makes the best stainless steel kitchen sink. Their difference is not that much and the price range is almost the same. 16 gauge has 0.0625 inches thickness while the 18 gauge has 0.05 thick. Between the two gauges, the price is the most determined when shopping for a stainless steel sink.

How can you tell the quality of a stainless steel sink?

There are two sets of numbers that indicate how much of these metals are present: the ratio and the series. The ratio indicates the percentage of chromium and nickel, for example, a 20:10 sink has 20 percent chromium and 10 percent nickel. Ideally, the ratio should be between 18:8 and 20:10.
