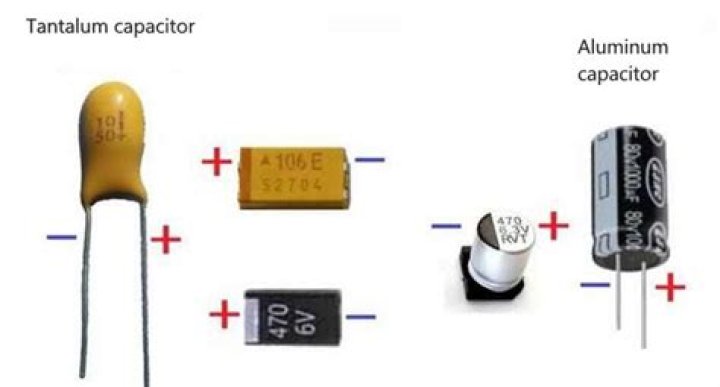

The negative pin of the cap is usually indicated by a "-" marking, and/or a colored strip along the can. They might also have a longer positive leg. Below are 10µF (left) and a 1mF electrolytic capacitors, each of which has a dash symbol to mark the negative leg, as well as a longer positive leg..
Correspondingly, which end of axial capacitor is positive?
Axial cans will have a line on one side with arrows pointing to the negative lead, or an indented band that designates the positive lead. Surface mount tantalum chips will have a line and/or a notch on the positive end. Axial will have a notch on the positive side.
does it matter which way you wire a capacitor? In an AC circuit it does not matter if a capacitor (intended for that circuit) is wired backwards. In a DC circuit, some capacitors can be wired backwards, others cannot.
Simply so, which side of capacitor symbol is positive?
The typical polarized capacitor will look like the image below on the schematic. The positive or anode side of the capacitor is marked with a “+” symbol. Since electrolytic capacitors are polarized, I use a symbol (shown below) on my schematics.
What is the difference between bipolar and polar capacitors?
Ceramic, mica and some electrolytic capacitors are non-polarized. You'll also sometimes hear people call them "bipolar" capacitors. A polarized ("polar") capacitor is a type of capacitor that have implicit polarity -- it can only be connected one way in a circuit. Polarized capacitors are generally electrolytics.
Related Question Answers
What happens if you put a capacitor in backwards?
When hooked up “backwards” (i.e., with reversed polarity), the capacitor's dielectric may be destroyed, a heavy DC current may then flow through the capacitor, and gases produced by electrolysis and internal heating may cause the capacitor to vent, spewing steam and nasty-smelling electrolyte everywhere.How do you check a capacitor with a meter?
To test the capacitor with a multimeter, set the meter to read in the high ohms range, somewhere above 10k and 1m ohms. Touch the meter leads to the corresponding leads on the capacitor, red to positive and black to negative. The meter should start at zero and then moving slowly toward infinity.What is the symbol for capacitor?
There are two commonly used capacitor symbols. One symbol represents a polarized (usually electrolytic or tantalum) capacitor, and the other is for non-polarized caps. In each case there are two terminals, running perpendicularly into plates. The symbol with one curved plate indicates that the capacitor is polarized.How do I wire a capacitor?
Use a voltmeter along with a resistor to charge your audio capacitor. Once the voltmeter shows 12 volts, the power capacitor is charged. Now you can wire the capacitor in parallel with your car amplifier. You should use 4-8 gauge wire depending on the size of your capacitor.How do you test a bipolar capacitor?
To test the capacitor with a multimeter, set the meter to read in the high ohms range, somewhere above 10k and 1m ohms. Touch the meter leads to the corresponding leads on the capacitor, red to positive and black to negative. The meter should start at zero and then moving slowly toward infinity.Can you replace a capacitor with a higher UF?
You can almost always replace a capacitor with one of a higher voltage. This is the limiting factor of a capacitor due to dielectric breakdown voltages that the manufacturer chose. Varying capacitance gets a little trickier.What's the difference between a start capacitor and a run capacitor?
The start capacitor creates a current to voltage lag in the separate start windings of the motor. The current builds up slowly, and the armature has an opportunity to begin rotating with the field of current. A run capacitor uses the charge in the dielectric to boost the current which provides power to the motor.Is there a positive and negative side to capacitors?
The majority of electrolytic capacitors are polarized types, that is the voltage connected to the capacitor terminals must have the correct polarity, i.e. positive to positive and negative to negative.Is there a positive and negative on a run capacitor?
If it is any good for start or run capacitor usage, there IS no positive or negative, both terminals the same.How do you tell which side of a diode is positive?
An arrow points at a vertical bar, which has a line continuing out of it. The arrow indicates the positive side of the diode, while the vertical bar indicates the negative side. You can think of it as the positive side flowing into the negative side, with the arrow indicating the direction of the flow.Is Ground positive or negative?
Usually in electronics, ground is just a name we give to a certain point in the circuit. In a circuit with one battery (with a positive and a negative terminal), we usually refer to the negative terminal as ground.Which side of an LED is positive?
The longer leg is the positive side of the LED, called the “anode,” and the shorter leg is the negative side, called the “cathode.” Within an LED, current can only flow from the anode (positive side) to the cathode (negative side) and never in the opposite direction.How do you tell the positive and negative terminal of an LED?
Turn the multimeter to the diode setting (usually indicated by a diode symbol), and touch each probe to one of the LED terminals. If the LED lights up, the positive probe is touching the anode, and the negative probe is touching the cathode.Can you wire a start capacitor backwards?
In an AC circuit it does not matter if a capacitor (intended for that circuit) is wired backwards. In a DC circuit, some capacitors can be wired backwards, others cannot.Do inductors have polarity?
Unlike capacitors or diodes, inductors do not have a functional polarity and work equally in either direction, so polarity is not important in the vast majority of end-use circuits. For any applications in which inductor polarity is critical please contact Coilcraft.What are the symbols of capacitor?
There are two commonly used capacitor symbols. One symbol represents a polarized (usually electrolytic or tantalum) capacitor, and the other is for non-polarized caps. In each case there are two terminals, running perpendicularly into plates. The symbol with one curved plate indicates that the capacitor is polarized.What is the symbol for a resistor?
The Ohm is often represented by the omega symbol: Ω. The symbol for resistance is a zigzag line as shown below. The letter "R" is used in equations.What is the symbol of Polarised capacitor?
The symbol with one curved plate indicates that the capacitor is polarized. The curved plate usually represents the cathode of the capacitor, which should be at a lower voltage than the positive, anode pin. A plus sign should also be added to the positive pin of the polarized capacitor symbol.What is the symbol for a battery?
The symbol for a battery is made by joining two more symbols for a cell together. Think of what we usually call a single battery, like the type you put in a torch. In physics, each of these is actually called a cell . It is only when you have two or more of these cells connected together that you call it a battery.
