Where is the heated oxygen sensor?

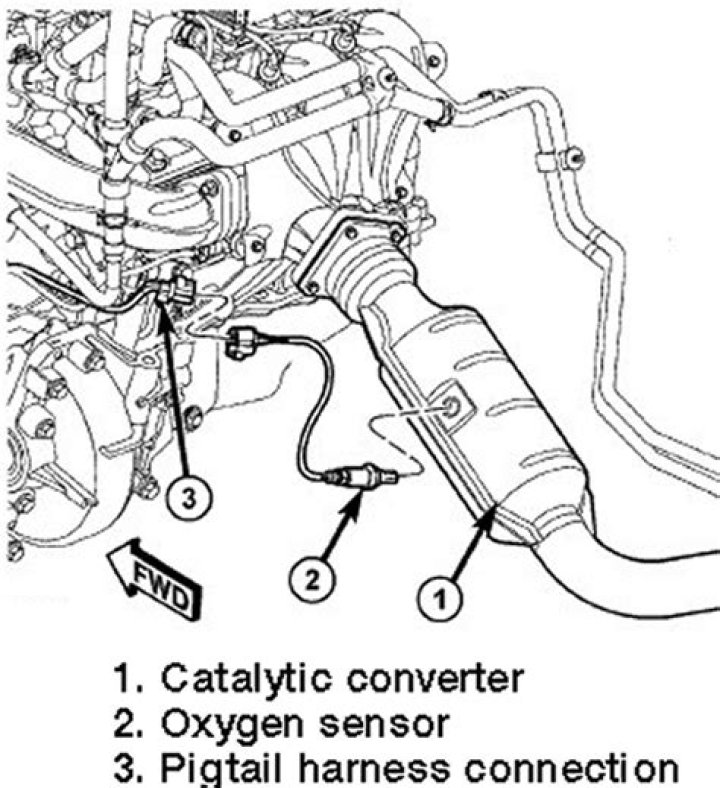

The Heated Oxygen Sensor is located on theexhaust system, in front of the three-way catalytic converter. Itis integral with the Oxygen Sensor Heater. The HeatedOxygen Sensor is located in the engine compartment on the rightside, behind the cylinder head.

.

In this manner, what is the heated oxygen sensor?

Heated Oxygen Sensors Oxygen sensors are located in the exhaustmanifold or exhaust pipe of the engine's exhaust system. Thesensors tip senses oxygen content in the exhauststream. It will produce a high voltage signal when the engine isrunning rich and a low signal when the engine is runninglean.

Also Know, how can you tell if an oxygen sensor is bad? Several of the most obvious signs that the oxygen sensor isfailing include:

1. Reduced gas mileage.
2. A bad smell like rotten eggs coming from the exhaust.
3. The check engine light comes on.
4. You notice that your engine idles roughly.
5. The car is suddenly hard to start.

Keeping this in view, how can you tell the difference between an upstream and downstream oxygen sensor?

The upstream oxygen sensor is situated before thecatalytic converter whereas the downstream oxygen sensor islocated after the catalytic converter. The upstream sensormonitors the level of pollutants in the engine's exhaust andsends this information to the ECU that continuously adjusts theair-fuel ratio.

Which 02 sensor is bank 1 sensor 2?

Oxygen Sensor Identification Therefore, in an in-line 4-cylinder engine, the term"Bank 1, Sensor 1" simply refers to the frontoxygen sensor. "Bank 1, Sensor 2" is the rearoxygen sensor. A V6 or V8 engine has two banks (or two partsof that "V").

Related Question Answers

Can I drive with a bad o2 sensor?

O2 sensor has nothing to do with oil. You candrive it just fine with the broken sensor; it just meansthe vehicle can't properly monitor and adjust the fuel/airmixture properly. It will have to be fixed before youcan get a clean emissions pass, but you can stilldrive it in the meantime.

Can you clean an oxygen sensor?

There are no true oxygen sensor cleaners that aresafe to put through your engine. While some people choose to removethem and use a wire brush or an aerosol cleaner to removedeposits, we do not recommend trying to clean O2sensors.

Should I replace all o2 sensors at once?

Do I need to replace all of my oxygensensors at once? It is best to replace yoursensors in pairs. However, on most vehicles produced since1996, replacing one sensor (especially the frontengine monitoring sensor) will cause the ECU to set a codefor the other sensors.

What does a car do when the oxygen sensor is bad?

Symptoms of a Bad Oxygen Sensor When you have a bad oxygen sensor, your vehiclewill run less efficiently, it can sometimes have apoor idle, erratic jerking at steady throttle, hard startingproblems, cause the check engine light to come on, and willcause high fuel consumption.

What causes an oxygen sensor to fail?

Excess Fuel Entering Exhaust Finally, Possible causes are an incorrect fuelmixture, incorrect timing, corroded spark plugs, a faulty oxygensensor, sticking float, faulty fuel injector or amalfunctioning check valve.

How long do oxygen sensors last?

Generally speaking, your oxygen sensor shouldlast somewhere between 50,000 and 60,000 miles. However, ifyour engine is properly maintained, the sensor(s) maylast much longer, up to the life of thevehicle.

How many oxygen sensors does a car have?

four oxygen sensors

How do you test an oxygen sensor?

How to Test an O2 Sensor

1. Start by visually inspecting the wires leading to and from theO2 Sensor.
2. Next, start the car and let it run until the vehicle is warm,which usually takes about five minutes.
3. Connect the backprobe to the oxygen sensor's signal wire.
4. Connect the positive lead from the digital voltmeter to thebackprobe.

What happens if you disconnect o2 sensor?

When everything is plugged up and the car iswarmed up, it'll run Closed loop. If you unplug the maf, itstill runs closed (accepts input from the O2 sensors), butin speed density mode. If you unplug the O2s, it puts thebank w/ the unplugged sensor into open loopmode.

What is the difference between upstream and downstream?

Upstream refers to the material inputs needed forproduction, while downstream is the opposite end, whereproducts get produced and distributed.

Do you need a downstream o2 sensor?

The Downstream Oxygen Sensor (OxygenSensor 2) It measures the air-fuel ratio coming out of thecatalytic converter to ensure the catalytic converter isfunctioning properly. Therefore, the downstream oxygensensor (sensor 2) should produce a steadyvoltage of approximately 0.45 volts.

Can a o2 sensor cause loss of power?

While the oxygen sensor can indeed causean engine to run poorly, slow acceleration could also be a cloggedcatalytic converter, or CAT. However, if the oxygen sensorgoes bad, which may result in more emissions, the CAT canfail prematurely, so the two problems can actually run handin hand.

Can a downstream o2 sensor cause rough idle?

Re: Can a bad downstream oxygen sensorcause a rough idle No, but I think that incompletecombustion or overly rich mixture could cause theidle problem and cause the O2 sensor error. Ifyou fix the idle problem the O2 sensor may well clearup.

Does downstream o2 sensor affect gas mileage?

This can result in low fuel mileage. If thedownstream O2 sensor has a tendancy to stay above center,the PCM will set a low goal voltage which results in a leanfuel mix which can cause the engine to run hotter andaggravate a spark knock condition.

Can bad spark plugs cause o2 sensor code?

Bad Spark Plug, Wire, or FuelInjector Any of these can cause one or more cylinders tomisfire. Because the oxygen in that cylinder isn't burnedup, the extra oxygen in that cylinder winds up passing overthe O2 sensor.

How do I know if I have a bad o2 sensor or catalytic converter?

Signs that you may need a new catalytic converterinclude:

1. Your car throws a check engine light.
2. Your engine misfires.
3. Your car noticeably uses more fuel.
4. Your car isn't performing the way it used to.
5. Your car fails an emissions test or it has more emissions thannormal.

How much does it cost to replace an oxygen sensor?

If you decide to do the repairs, the cost toreplace the oxygen sensor yourself can be between$20-$94, depending on the brand and type of sensor you buy.To have the repairs done by a mechanic the price can beanywhere between $113 to $478 for parts and labor.

Can o2 sensor cause transmission problems?

A faulty oxygen sensor will cause the engine torun less efficiently (use more gas than usual) and may degradeengine performance to some extent. However, failure of theoxygen sensor itself can not cause thetransmission to fail or operate poorly. Also, you might justhave a low transmission fluid level.

How do you test a Toyota oxygen sensor?

How to Test the Toyota Oxygen Sensor

1. Locate the O2 sensor connector in the engine compartment ofyour Toyota.
2. Unplug the connector from the O2 sensor and place the positivelead from a digital multi meter on it, then attach the negativelead to the battery.
3. Note the readings on the meter.
4. Remove the meter and plug the connector into the wiringharness.
