What type of image does a convex mirror produce?

A plane mirror will form an upright virtual image of the object with the same size. A convex mirror will also form an upright virtual image but will appear smaller. Only a concave mirror can produce a real inverted image whose size depends on screen placement.

Regarding this, can a convex mirror form real image?

convex mirrors can produce real images as well. If the object is virtual, i.e., if the light rays converging at a point behind a plane mirror (or a convex mirror) are reflected to a point on a screen placed in front of the mirror, then a real image will be formed.

Similarly, why do convex mirrors produce smaller images? Ray tracing indicates that the image formed by the reflection of an object in a convex mirror will always be smaller than the object, upright, and located behind the mirror; images located behind a mirror are virtual images. A convex mirror cannot, by itself, produce a real, inverted, or magnified image.

Regarding this, what types of images are formed by convex and concave mirrors?

If the outer side of the spherical mirror is reflecting, it is called a convex mirror. Concave mirrors can form inverted and real images and also virtual and erect images. Size can be smaller, larger or of the same size depending on the position of the object.

Can mirrors real image?

A real image occurs where rays converge, whereas a virtual image occurs where rays only appear to diverge. Real images can be produced by concave mirrors and converging lenses, only if the object is placed further away from the mirror/lens than the focal point, and this real image is inverted.

How does a concave mirror form an image?

Concave mirrors can produce both real and virtual images; they can be upright (if virtual) or inverted (if real); they can be behind the mirror (if virtual) or in front of the mirror (if real); they can also be enlarged, reduced, or the same size as object.

Why can't a convex mirror form a real image?

In convex mirrors light rays from a point always gets diverged (they dont meet at any point). So we have to extend them behind the mirror so that they appear to meet. Since image is formed behind of mirror, they cant be received on screen. So it is not real image.

What is an example of a concave mirror?

Shaving and Makeup Mirrors Concave mirrors are often used as shaving mirrors and makeup mirrors. Objects held close are reflected in a concave mirror as a magnified image. When the mirror is held close to the face, an enlarged image of the skin can be seen.

Which mirror is used for shaving?

The concave mirrors are used as shaving mirrors because when the face is held within the focus of concave mirror then an enlarged image of the face is seen in the concave mirror.

How do you tell if a mirror is convex or concave?

If the size of the image is lesser than the size of the object, it is a convex mirror. If the size of the image is greater than the size of the object, it is a concave mirror. If the size of the image is equal to the size of the object, it is a plane mirror.

Can we see real image in concave mirror?

Spherical concave mirrors Concave mirrors, on the other hand, can have real images. If the object is further away from the mirror than the focal point, the image will be upside-down and real---meaning that the image appears on the same side of the mirror as the object.

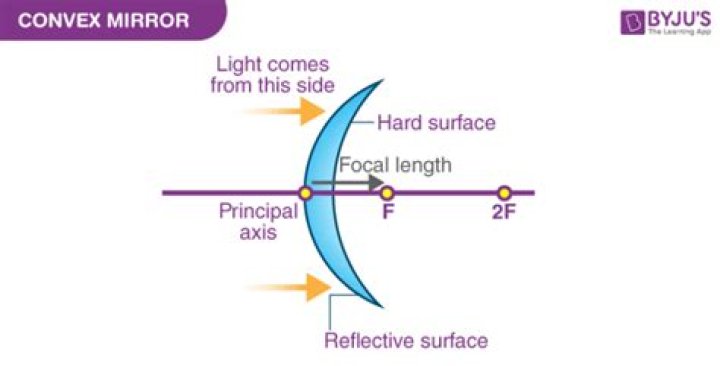

How do convex mirrors work?

A convex mirror or diverging mirror is a curved mirror in which the reflective surface bulges towards the light source. Convex mirrors reflect light outwards, therefore they are not used to focus light. The image is smaller than the object, but gets larger as the object approaches the mirror.

Which mirror is used in vehicles?

The Convex Mirror is used in the rear-view mirrors of vehicles as it forms upright/erect images and has a wider field of view.

What are the 6 cases of a concave mirror?

There are six possibilities of the position of object in the case of concave mirror.

Object at infinity.
Object between infinity and centre of curvature (C)
Object at centre of curvature (C)
Object between centre of curvature (C) and Principal focus (F)
Object at Principal Focus (F)

What type of image is formed by a concave lens?

virtual and erect image formed by a concave mirror. Plane mirrors, convex mirrors, and diverging lenses can never produce a real image. A concave mirror and a converging lens will only produce a real image if the object is located beyond the focal point (i.e., more than one focal length away).

Do convex mirrors make images bigger or smaller?

This is the idea behind a convex mirror. A convex mirror bends light as it reflects the light, and the farther away a point is from the center, the more the light is bent. As a result, an image formed in a convex mirror is smaller than an image in a plane (flat) mirror.

What are convex mirrors used for?

Convex mirrors always form images that are upright, virtual, and smaller than the actual object. They are commonly used as rear and side view mirrors in cars and as security mirrors in public buildings because they allow you to see a wider view than flat or concave mirrors.

What is the magnification of convex mirror?

What is the magnification of a convex mirror? It will be always negative because virtual and erect image is formed by the convex mirror. It will always less than 1. Searches related to When an object is placed at a distance of 80cm from a concave spherical mirror, the magnification produced is, -1/3.

How far is the image from the mirror?

The distance between the mirror and the object is 12 cm. This is because a plane mirror forms the image of the object as far as from the mirror as the object is from the mirror. I.e. distance of the object from the mirror=distance of the image from the mirror .

Can a virtual image be photographed Class 10?

Yes. Any camera that's capable of photographing actual objects is also capable of photographing real and virtual images. If you stand in front of a mirror and take a photo, you'll get a photo of the virtual image. Crowell points out, virtual images can be photographed; light does appear to come from them.

Can a convex mirror form a magnified image?

Normally, when a real object is present, a convex mirror can only produce a virtual upright image of reduced size, But by reversing the rays in the diagram below, where a virtual object (rays that would converge into a real image) replaces a virtual image, a real magnified image can form.

Can a convex mirror form a real image?

convex mirrors can produce real images as well. If the object is virtual, i.e., if the light rays converging at a point behind a plane mirror (or a convex mirror) are reflected to a point on a screen placed in front of the mirror, then a real image will be formed.

Is a real image always inverted?

Real images (images on the same side of the object) are always inverted. Virtual images (images on opposite side of an object) are always erect/ upright.
