What purpose does the Local Management Interface LMI serve in a Frame Relay network?

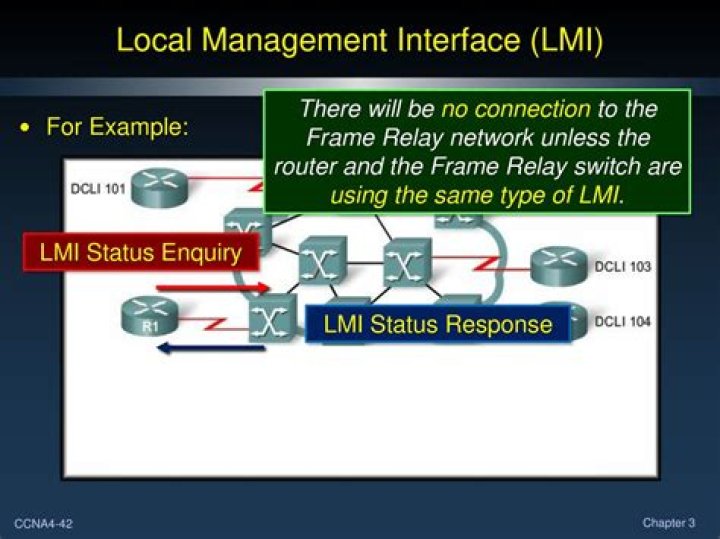

Local Management Interface (LMI), a technology developed by Cisco, is a signaling standard that is used between the routers and frame relay switches for various purposes such as exchanging information keepalives timers, global addressing, multicasting and the current status of virtual circuits.

Similarly, it is asked, what is the purpose of Frame Relay?

Frame relay is a packet-switching telecommunication service designed for cost-efficient data transmission for intermittent traffic between local area networks (LANs) and between endpoints in wide area networks (WANs).

Subsequently, question is, what are three of Frame Relay LMI extensions? LMI is a set of enhancements (extensions) to the basic Frame Relay specification. Key LMI extensions include global addressing, VC status messages, and multicasting. The LMI Global Addressing gives DLCI values global rather than local significance.

Besides, what is the purpose of a Dlci?

A data link connection identifier (DLCI) is a Frame Relay 10-bit-wide link-local virtual circuit identifier used to assign frames to a specific PVC or SVC. Frame Relay networks use DLCIs to statistically multiplex frames. DLCIs are preloaded into each switch and act as road signs to the traveling frames.

What is frame relay in which layer it comes?

Frame Relay is a high-performance WAN protocol that operates at the physical and data link layers of the OSI reference model. Frame Relay originally was designed for use across Integrated Services Digital Network (ISDN) interfaces. Today, it is used over a variety of other network interfaces as well.

What is a characteristic of a frame relay?

Features of Frame relay: Frame relay provides connection-oriented virtual circuit service. Frame relay can detect transmission errors. Frame Relay connections are often given a committed information rate (CIR), which provide guarantees that the connection will always support the committed rate or bandwidth.

What is ATM and frame relay?

The difference between frame relay and ATM lies in the speed of transmission, efficiency, accurate delivery of the packets, etcetera. The frame relay provides 1.544 Mbps or 44.736 Mbps. On the other hand, ATM provides 51 Mbps or 155 Mbps.

Is Frame Relay still used?

In this case, Frame Relay is about frame-based virtual circuits, PPP is about circuit authentication/negotiation, and PPPoE is learning Circuit over Packet. Today, these technologies are no longer widely used (although Cisco sells rather a lot of them to people running obsolete but useful/valuable networks).

Where is ATM network used?

ATM is a core protocol used over the SONET/SDH backbone of the public switched telephone network (PSTN) and Integrated Services Digital Network (ISDN), but its use is declining in favour of all IP.

What is the difference between frame relay and MPLS?

MPLS is a private networking technology similar to the concept of Frame Relay in that it is delivered in the “cloud”. The primary difference with MPLS is that you can purchase quality of service for applications across your WAN. If an application works well on a Frame Relay, it will work better using MPLS.

What is Frame Relay and how does it work?

Frame Relay sends information in packets called frames through a shared Frame-Relay network. Each frame contains all the information necessary to route it to the correct destination. So in effect, each endpoint can communicate with many destinations over one access link to the network.

Which OSI layer is responsible for user interaction?

Session Layer As per Forouzan, the session layer is the network dialog controller, i.e. It establishes, maintains and synchronizes the interaction between communicating systems. The responsibilities of this layer will make us understand about it's existence.

What is ATM in networking?

ATM and ATM Networks. ATM stands for Asynchronous Transfer Mode. It is a switching technique that uses time division multiplexing (TDM) for data communications. ATM networks are connection oriented networks for cell relay that supports voice, video and data communications.

Why is Dlci important in frame relay network?

DLCI-Data Link Connection Identifier Bits. The DLCI serves to identify the virtual connection so that the receiving end knows which information connection a frame belongs to. Note that this DLCI has only local significance. A single physical channel can multiplex several different virtual connections.

Are frame relays copper or fiber?

TABLE 6.5 Comparing WAN Technologies

WAN Technology	Speed	Supported Media
T-carrier (T1, T3)	T1: 1.544Mbps T3: 44.736Mbps	Copper/fiber-optic
ATM	1.544Mbps to 622Mbps	Copper/fiber-optic
X.25	56Kbps/64Kbps	Copper/fiber-optic
Frame Relay	56Kbps to 1.544Mbps	Copper/fiber-optic

What is a PVC and how is it used?

A permanent virtual circuit (PVC) is a connection that is permanently established between two or more nodes in frame relay and asynchronous transfer mode (ATM) based networks. It enables the creation of a logical connection on top of a physical connection between nodes that communicate frequently or continuously.

What is LMI in networking?

Local Management Interface (LMI), a technology developed by Cisco, is a signaling standard that is used between the routers and frame relay switches for various purposes such as exchanging information keepalives timers, global addressing, multicasting and the current status of virtual circuits.

What is Frame Relay Cisco?

Frame Relay is an industry-standard, switched data link layer protocol that handles multiple virtual circuits using High-Level Data Link Control (HDLC) encapsulation between connected devices. 922 addresses, as presently defined, are two octets and contain a 10-bit data-link connection identifier (DLCI).

What is Frame Relay PVC?

A permanent virtual circuit (PVC) is a software-defined logical connection in a network such as a frame relay network. In frame relay, the end points and a stated bandwidth called a Committed Information Rate (CIR) constitute a PVC, which is defined to the frame relay network devices.

What is a data link connection identifier DLCI utilized for quizlet?

What is a data-link connection identifier (DLCI) utilized for? It is used by routers to determine which circuit to forward a frame to in a frame relay network. The supplicant is an EAP entity responsible for requesting authentication, such as a smartphone or laptop.

What is true about Frame Relay DLCI?

Data link connection identifier (DLCI) is a number of a private or switched virtual circuit in a Frame Relay network that tells the Frame Relay how to route the data. The DLCI field identifies which logical circuit the data travels over.

Is Frame Relay Layer 2 or 3?

Frame Relay is in fact a level two protocol. Frame Relay eliminates all layer 3 processing, in practice, this means that there is no layer 3 information or functions required in order for a packet to traverse a frame relay network. There are only a few layer 2 functions used, also known as "core aspects".

What layer is HDLC?

data link

What is PVC and SVC?

PVC and SVC are different types of virtual circuits. “PVC” stands for “Permanent Virtual Circuit” and “SVC” stands for “Switched Virtual Circuit.” Both PVC and SVC play the main role in networks like Frame Relay and X. 25. They are also used in ATM machines. Frame Relay network is a protocol for a data link network.
