What limits the resolution of a light microscope?

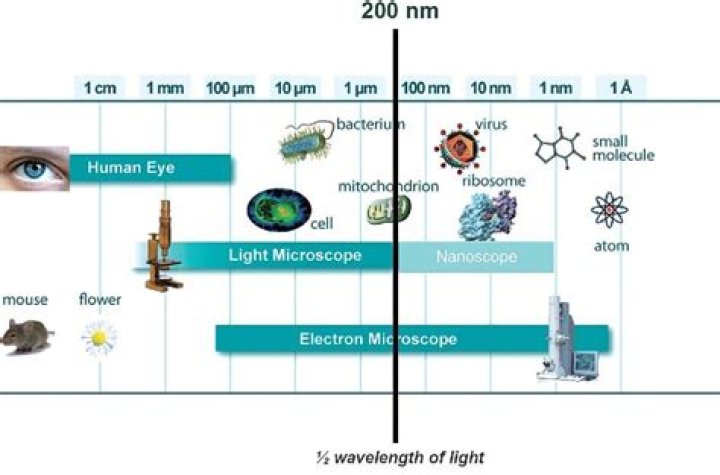

The resolution of the light microscope cannot be small than the half of the wavelength of the visible light, which is 0.4-0.7 µm. When we can see green light (0.5 µm), the objects which are, at most, about 0.2 µm. Below this point, light microscope is not useful, as wavelength smaller than 400 nm is needed.

Herein, what is the resolution of a light microscope?

The maximum magnification of light microscopes is usually ×1500, and their maximum resolution is 200nm, due to the wavelength of light. An advantage of the light microscope is that it can be used to view a variety of samples, including whole living organisms or sections of larger plants and animals.

Also, which light is suitable for getting maximum resolution? Since the limit of resolving power of a microscope is fixed by the structure of light, the shortest wavelength of visible light will give the maximum resolution. Among yellow, green, red and blue light colour. Blue (500 nm) have shortest wavelength so, it will give best resolution.

Also to know, what is the maximum resolution obtained with the light microscope?

The range of wavelengths for visible light is approximately 400–700 nm; consequently, using the Abbe formula, it can readily be shown that the resolution limit of the light microscope is in the order of 200 nm.

What is Abbe equation?

Abbe's equation. This is the diffraction-limited resolution of an optical system. If all aberrations and distortions are eliminated from the optical system, this will be the limit to resolution. If aberrations and distortions are present, they will determine the practical limit to resolution.

What is the resolution power of a light microscope?

Abbe equation is used to calculate the limit set on the resolution of light microscope. The oil immersion objective gives the maximum theoretical resolving power of the microscope , the numerical aperture of 1.25 and blue-green light is around 0.2μm.

What is the formula for magnification?

The magnification equation states that M = Hi/Ho = - Di/Do, where M is the magnification, Hi is the height of the image, Ho is the height of the object, Di is the distance from the lens to the image and Do is the distance of the object to the lens.

What is resolution limit?

The limit of resolution (or resolving power) is a measure of the ability of the objective lens to separate in the image adjacent details that are present in the object. It is the distance between two points in the object that are just resolved in the image. Thus an optical system cannot form a perfect image of a point.

What factors influence resolution?

As discussed above, the primary factor in determining resolution is the objective numerical aperture, but resolution is also dependent upon the type of specimen, coherence of illumination, degree of aberration correction, and other factors such as contrast enhancing methodology either in the optical system of the

How can you increase the resolution of a light microscope?

One way of increasing the optical resolving power of the microscope is to use immersion liquids between the front lens of the objective and the cover slip. Most objectives in the magnification range between 60x and 100x (and higher) are designed for use with immersion oil.

What do you mean by resolution?

1. Resolution is the image quality produced by a printer or displayed on a monitor. With monitors, the resolution is measured by the number of pixels horizontal by pixels vertically as shown in the picture. Printers also have a measure of resolution called DPI (dots per inch).

Why do light microscopes have poor resolution?

Microscope resolution is also impacted by the wavelength of light being used to illuminate the specimen. Longer wavelengths of light offer less resolution than short wavelength illumination. Near-ultraviolet light has the shortest usable wavelength and offers the greatest resolution.

When you increase magnification What happens to the resolution?

A simple answer is that resolution of an optical system is its ability to separate two closely spaced objects. Resolution In general as the magnification increases the resolution increases, however, this much more complicated than it seems.

Which microscope has the highest resolution?

electron microscope

Who is father of microscope?

Zacharias Janssen

Why is a light microscope limited to a resolution of 200 nm?

This means that we will never be able to see any object smaller than approximately 200 nm (about the width of an average-sized bacterium) using a light microscope (and in practice, many light microscopes can't get close to this resolution because of lens quality).

What are the two types of light microscopes?

There are two main types of light microscopes: COMPOUND and STEREO microscopes. COMPOUND MICROSCOPES are so called because they are designed with a compound lens system. The objective lens provides the primary magnification which is compounded (multiplied) by the ocular lens (eyepiece).

How do you calculate resolving power?

Resolving power (Page 2)

λ = wavelength.
u = angle of the cone of light coming from object.
u' = angle of cone of light forming image.
n = refraction index of object.
m = magnification.
NA = numerical aperture.
d = distance between two points in the image. d = 0.61 λ / (m tanu') (1)* **

Why is resolution more important than magnification?

While bigger is often better, magnification can be meaningless if the necessary resolution is lacking as Jackson once again demonstrates. So, resolution is the ability of a system to define detail, and this becomes increasingly important the more you magnify something.

What is the difference between magnification and resolution?

Magnification is the ability to make small objects seem larger, such as making a microscopic organism visible. Resolution is the ability to distinguish two objects from each other. Light microscopy has limits to both its resolution and its magnification.

Why light of shorter wavelengths will produce a clearer image?

Assuming that all other variables remain constant, explain why light of shorter wavelengths will produce a clearer image than light of longer wavelengths? A small wavelength will allow for a smaller D value. You are supplied with a filter that selects a wavelength of 520 nm.

What is a resolution in science?

AQA Science: Glossary - Resolution The smallest change in the quantity being measured (input) of a measuring instrument that gives a perceptible change in the reading. e.g. a typical mercury thermometer will have a resolution of 1°C, but a typical digital thermometer will have a resolution of 0.1°C.

What do you mean by resolving power?

Resolving power is defined as the ability of a microscope or telescope to distinguish two close together images as being separate. An example of resolving power is how well a telescope can show two stars as being separate stars. YourDictionary definition and usage example.

Which type of visible light gives the best resolution in the light microscope?

The relationship between wavelength and resolution is simple: The greatest resolving power in optical microscopy requires near-ultraviolet light, the shortest effective visible imaging wavelength. The electron microscope has a better resolution than the light microscope.
