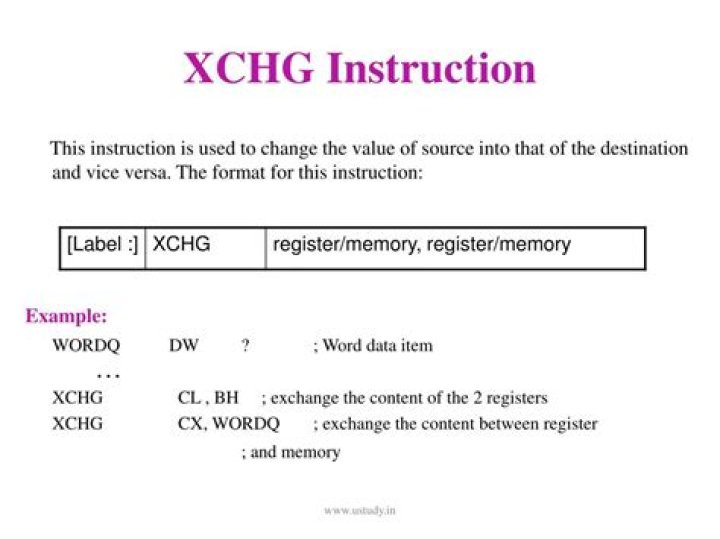

XCHG Instruction, Exchanging Integers. TheXCHG (exchange data) instruction exchanges thecontents of two operands. except that XCHG does not acceptimmediate operands..
People also ask, what is the use of Xchg instruction in your program?
Instruction XCHG is used to EXCHANGEmemory variables in the following permutations above. REG standsfor Registers (Eg. AX, BX, CX, DX ). memory stands for Variable orAddress.
Also Know, how many machine cycles are in Xchg instruction? Summary − So this instruction XCHG requires1-Byte, 4-Machine Cycles (Opcode Fetch) and 4 T-States forexecution as shown in the timing diagram.
Similarly, it is asked, what is the other instruction used for LEA instruction?
The LEA (Load Effective Address)instruction is a way of obtaining the address which arisesfrom any of the Intel processor's memory addressing modes. it movesthe contents of the designated memory location into the targetregister.
What is PCHL instruction in microprocessor?
PCHL instruction basically copies the content of HL registerpair into Program Counter. It falls in Register Addressing Mode andis a Single Byte Instruction. This instruction willaffect the flow of program execution if due care nottaken.
Related Question Answers
What is LDA microprocessor?
LDA and STA both are related to data transferinstructions. So one is used to get data from memory while other isused to store the data. In both cases flags are not affected. Asthe name suggests, "LDA xxxx" is Load the data inaccumulator from the memory location xxxx.What is MVI in microprocessor?
MVI is a mnemonic, which actually means“Move Immediate”. With this instruction,we can load aregister with an 8-bitsor 1-Bytevalue. In the instruction“d8” stands for any 8-bit data, and 'r' stands for anyone of the registers e.g. A, B, C, D, E, H or L. So this r canreplace any one of the seven registers.What is the purpose of Lea?
The lea (load effective address) instruction isused to put a memory address into the destination.What does LEA instruction do?
The LEA instruction is a 'Load Effective Address'which is an indirected instruction, which means thatTABLE-ADDR points to a memory location at which the address to loadis found. Effectively using LEA is equivalent to usingpointers in languages such as C, as such it is a powerfulinstruction.What is an effective address or offset?
Effective Address or Offset Address: The offset for a memory operand is called theoperand's effective address or EA. It is an unassigned 16bit number that expresses the operand's distance in bytes from thebeginning of the segment in which it resides. In 8086 we have baseregisters and index registers.What is EAX register?
"EAX" stands for "EXTENDED ACCUMULATORREGISTER" "EBX" stand for "EXTENDED BASE REGISTER""ECX" stand for "EXTENDED COUNT REGISTER" "EDX" stand for"EXTENDED DATA REGISTER"What is %RBP?
%rbp is the base pointer, which points to thebase of the current stack frame, and %rsp is the stack pointer,which points to the top of the current stack frame. %rbpalways has a higher value than %rsp because the stack starts at ahigh memory address and grows downwards.What is EAX in assembly language?
Assembly language is a programminglanguage. A feature of assembly language is that eachline in the source code usually contains a singleinstruction to the processor, for example MOV EAX,EDXwill move the content of the EDX register into the EAXregister. Here the "MOV" instruction is called a"mnemonic".What is Callq?
callq refers to a relocatable call inshared libraries/dynamic libraries. The idea is push 0, then pushthe symbol of to search then call a function so search forit on the first call. In the relocatable table of theprogram, it replaces the call to the actual location of thefunction on the first call of the function.What is MOV in assembly language?
mov is an X86 assembly languageinstruction, it is meant to move data between registers andmemory.What is offset in assembly language?
In assembly language In computer engineering and low-levelprogramming (such as assembly language), anoffset usually denotes the number of address locations addedto a base address in order to get to a specific absolute address.In this context an offset is sometimes called a relativeaddress.What is machine cycle?
The steps performed by the computer processor for eachmachine language instruction received. The machinecycle is a 4 process cycle that includes reading andinterpreting the machine language, executing the code andthen storing that code.What is Jnz microprocessor?
Description. The jnz (or jne) instruction is aconditional jump that follows a test. It jumps to the specifiedlocation if the Zero Flag (ZF) is cleared (0). jnz iscommonly used to explicitly test for something not being equal tozero whereas jne is commonly found after a cmpinstruction.What is branching instructions in 8085?
Branching instructions in 8085 microprocessor.Branching instructions refer to the act of switchingexecution to a different instruction sequence as a result ofexecuting a branch instruction. The three types ofbranching instructions are: Jump (unconditional andconditional)What is LXI instruction in microprocessor?
Instruction Type LXI rp, d16 in 8085Microprocessor. We can use this instruction to load datafrom memory location using the memory address, which is stored inthe register pair rp. For an example, if the instruction isLXI H, FE50. It means that the FE50 is loaded into the HLregister pair.
