What is UF wire? | ContextResponse.com

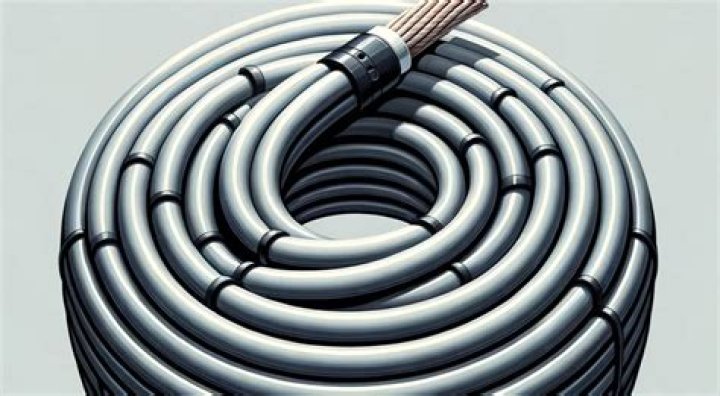

UF-B wire is typically used as an underground feeder cable to distribute power from an existing building to outdoor lighting fixtures, pumps, outbuildings and other outdoor equipment. The cable can also be used as direct burial cable.

Likewise, people ask, what does UF wire stand for?

underground feeder

One may also ask, can UF cable be exposed? You may use UF and MC cable in wet locations including outdoors and underground if it is not subject to damage. Use sunlight resistant NM and UF cable if the cable is exposed to direct sunlight.

Moreover, what is the difference between UF and UF B Wire?

Type UF B cable is made for direct burial underground without the use of conduit or other piping, and is also gray in color and is marked as type UF B cable to denote the difference between it and the regular type UF cable, which is not suitable for direct burial outside of conduit or the proper piping material.

Does UF wire need conduit?

Running UF cable through metal or PVC conduit. Although not commonly done, it is allowable to run UF cable (but NOT NM) cable through metal or PVC conduit in an underground application. Most electricians prefer to fish individual waterproof THWN conductors through conduit, simply because it is easier.

Can 8 gauge wire handle 50 amps?

8 AWG may carry a maximum of 70 Amps in free air, or 50 Amps as part of a 3 conductor cable. David, if that cable is NM (Romex) then it actually cannot carry 50 amps.

What does Type UF B mean?

NM or NM-B cables stand for "non-metallic" which aids in flexibility. The "B" denotes a heat rating of 194 degrees Fahrenheit. UF cables stand for "underground feeder" and may look similar to NM cables.

How long does UF wire last?

30 years

What size wire do I need for 40 amps?

40 AMP Wire Size For a maximum of 40 amps, you'll need a wire gauge of 8. Many electric cooking appliances require 40 amps such as electric cooktops.

Can 10 gauge wire handle 40 amps?

“Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”

How do I choose electrical wire size?

Wire gauge refers the physical size of the wire, rated with a numerical designation that runs opposite to the diameter of the conductors—in other words, the smaller the wire gauge number, the larger the wire diameter. Common sizes include 14-, 12-, 10-, 8-, 6-, and 2-gauge wire.

What are the three types of wires?

In the basic there are three types of wire:

Live Wire (Red or Brown)
Neutral Wire (Black)
Earth Wire (Green)

How deep does UF cable need to be buried?

Direct Burial of Cables or Conductors Bury UF cables 24 inches below the soil surface, and 18 inches deep when protected by 2 inches of concrete. For all other applications, the burial depth is the same as specified for conduits, except that conduits are required for UF cables in 2 inches of solid rock.

What size wire is rated for 60 amps?

As the previous poster said, six gauge is the correct wire for 60 A.

Can you put direct burial wire in conduit?

However, if you only need a power supply (without wires to control lights from inside the house,) you can use a direct burial cable, placed in the soil without conduit. On the other hand, if you use conduit, the trench needs to be only 18 inches below the surface.

Does outdoor electrical wire need to be in conduit?

You can run electrical wire outside to nearly any location. Although some types of electrical cable do not have to be enclosed in conduit for outside installation, enclosing any exposed cable is a good idea. Schedule 40 polyvinyl chloride (PVC) conduit for electricity is gray and is rated for sunlight resistance.

What wire do you use for 220?

If you're wiring a 220v, 20-amp outlet to run power tools, you can use the same 12-gauge wire you would use for a 110-volt, 20-amp circuit. Remember that the cable must have an extra hot wire. If the appliance draws 30 amps, you need a different type of receptacle, and the cable needs to be 10-gauge.

What size wire do I need for a 20 amp breaker?

For a given wire size, increasing the current increases voltage drop. A general rule of thumb (and code minimum) for residential wiring in the United States is to use no smaller than 12 AWG wire on a 20 A circuit. Originally Answered: What wire gauge is needed for a 20 amp?

Which is best wire for home wiring?

Prime Cable is the best wire cable for new house electrical work.

Here is the list of wire and cable brands that you can consider:

Polycab Wires Pvt. Ltd.
Finolex Cables Ltd.
KEI Industries Ltd.
Press Fit India.
Havells India Ltd.
Universal Cables Ltd.
RR Kabel.
Diamond Power Infrastructure Ltd.

What is UF B wire used for?

› Copper Building Wire › UF-B Wire (Direct Burial) UF-B wire is typically used as an underground feeder cable to distribute power from an existing building to outdoor lighting fixtures, pumps, outbuildings and other outdoor equipment. The cable can also be used as direct burial cable.

Can I mix 12 and 14 gauge wire?

mixing 14-gauge NM and 12-gauge. both 14 and 12 gauge will be protected by a 15A breaker. Code states that 14Ga will be protected by an overcurrent device of not more than 15A and 12GA by 20A. 14 and 12 are both ok behind a 15amp breaker, but you must use one or the other and not both.

What is 10 gauge wire used for?

12 gauge Romex is rated for 20 Amps and is commonly yellow jacketed. 14 gauge Romex is still used in some applications and is rated for 15 Amps and is grey jacketed. 10 gauge Romex has an orange jacket and is used for water heaters or clothes driers.

Does UF cable have to be buried?

UF cable (underground feeder cable) is specially designed and manufactured with properties that make it ideal for burial. This cable should be buried at a depth of 24 inches. The cable is less likely to be cut or disturbed by typical digging if it is this far below ground.

Can UF wire be used under a deck?

While UF cable is common for buried applications, there are several more heavy-duty buried cables for exceptionally damp locations. Alternatively, codes might require specialty cable encased in conduit for both buried and above-ground applications. Note that standard NM cable is not suitable for exterior projects.
