What is u2 interface?

U. 2, formerly known as SFF-8639, is a computer interface standard for connecting SSDs to a computer. It covers the physical connector, electrical characteristics, and communication protocols. It uses up to four PCI Express lanes and two SATA lanes.

.

Keeping this in consideration, is SATA compatible with u2?

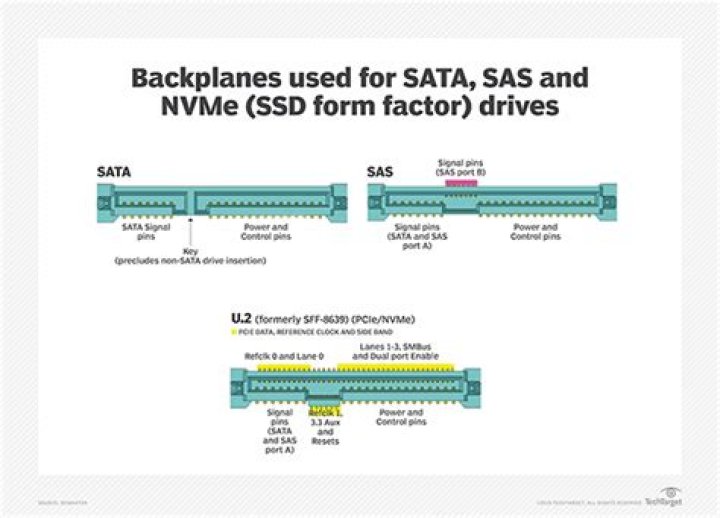

U. 2 supports SATA, SAS, and PCI Express on the same connector. For SAS and SATA, U. 2 uses the same pin locations as legacy SAS and SATA for pin-wise backwards compatibility.

Also Know, whats faster m 2 or u 2? 2 is a small, flat, board while M. 2 is the 2.5” form factor you're familiar with from most SATA SSDs. Capacity – Because of the larger form factor, U. 2 has a higher storage capacity – around 4TB+ compared to the 2TB max from M.

In this manner, what is U 2 form factor?

A U. 2 SSD is a high-performance data storage device designed to support the Peripheral Component Interconnect Express (PCIe) interface using a small form factor (SFF) connector that is also compatible with standard SAS and SATA-based spinning disks and solid-state drives (SSDs).

Is m2 better than SSD?

M. 2 SSDs are capable of attaining high data transfer speeds, but it all hinges on the type of storage interface used. A SATA-based M. 2 SSD is limited by SATA's maximum limit of 600 MB/s (megabytes per second).

Related Question Answers

Is NVMe hot swappable?

The NVMe PCIe SSD supports orderly hot swap allowing you to add or remove a device without halting or restarting the system in which the device is installed. The supported NVMe PCIe SSD hot swappable functions are defined below: Orderly or Hot Insertion.

What's the difference between SATA and mSATA?

SATA is thicker than mSATA and housed in a 2.5” casing, so it can only fit in larger devices. Both SATA and mSATA meet SATA III speed guidelines of 6Gb/s. However, the size of mSATA means that it is usually used in drives with lower storage capacities than the full-sized SATA option.

Which is faster mSATA or SSD?

The mSata Design only uses 4 or 8 pieces of NAND flash and is used in limited space. A 2.5″ SSD usually uses 8 or 16 Pieces of flash depending on capacity. Given the same controller on an mSata and an SSD, Sequential write speeds will be about 100–200 MB/s faster on the 2.5″ SSD.

What is SATA cable?

SATA. Stands for "Serial Advanced Technology Attachment," or "Serial ATA." It is an interface used to connect ATA hard drives to a computer's motherboard. SATA cables can be as long as one meter, while PATA cables max out at 40cm.

What is NVMe storage?

NVMe (non-volatile memory express) is a host controller interface and storage protocol created to accelerate the transfer of data between enterprise and client systems and solid-state drives (SSDs) over a computer's high-speed Peripheral Component Interconnect Express (PCIe) bus.

What is the difference between m 2 and u 2?

U. 2 utilizes the PCIe 3.0 X4 (denotes four lanes) interface just like M. 2, the main difference is that the capacity for these ultra-high-performance SSDs is not bound by a small circuit board size (more space for more flash-memory chips), so you can get higher capacity SSDs.

What is m2 slot on motherboard?

M. 2 is a slot that can interface with SATA 3.0 (the cable that's probably connected to your desktop PC's storage drive right now), PCI Express 3.0 (the default interface for graphics cards and other major expansion devices), and even USB 3.0.

What is SATA Express port?

SATA Express (SATAe or Serial ATA Express) is a bus interface to connect storage devices to a computer motherboard, supporting Serial ATA and PCI Express protocols simultaneously. The host connector supports up to two SATA ports or two PCI Express (PCIe) lanes.

What is U 2 port used for?

U. 2, formerly known as SFF-8639, is a computer interface standard for connecting SSDs to a computer. It covers the physical connector, electrical characteristics, and communication protocols. It uses up to four PCI Express lanes and two SATA lanes.

What is the difference between SATA 1/2 3?

SATA II specifications provide backward compatibility to function on SATA I ports. SATA III specifications provide backward compatibility to function on SATA I and SATA II ports. However, the maximum speed of the drive will be slower due to the lower speed limitations of the port.

How do I install U 2 SSD?

Installation steps for the SSD 2.5-inch U. 2 form factor drive

1. Mount the SSD in the chassis using screws to hold the SSD securely.
2. Connect the cable to the U. 2 SSD connector (SFF 8639).
3. Two options for methods to connect to the motherboard are defined and shown below.
4. Connect SATA power to the connector on the cable.

What is HHHL?

The one drawback that PCIe SSDs have is the traditional card form factors which comes in HHHL (half height, half length) or the even bigger form factor a FHHL (full height, half length).

What is m2 SSD?

An M. 2 SSD is a solid-state drive (SSD) that conforms to a computer industry specification written for internally mounted storage expansion cards of a small form factor. M. 2 SSDs are designed to enable high-performance storage in thin, power-constrained devices, such as ultrabook and tablet computers.

What is u3 connector?

U. 3 is a 'Tri-mode' standard, building on the U. 2 spec and using the same SFF-8639 connector. It combines SAS, SATA and NVMe support into a single controller. Where firmware support is available, U.

What is Optane memory?

In contrast, Optane Memory is a form of Intel's stupidly fast Optane storage technology. The Optane Memory stores applications and data you access often, while less-frequently used data stays on the hard drive. Intel. Intel's Optane Memory is used to cache or tier storage to give it SSD-like performance.

What is sff8643?

SFF-8643. The SFF-8643 is the latest HD MiniSAS connector design for implementing HD SAS Internal interconnect solutions. The SFF-8643 is a 36-pin 'High Density SAS' connector, and utilizes a plastic body typically used in internal connections.

What are the different types of M 2?

Different socket types are part of the M.2 Specification that calls for supporting specific device types within a given socket.

• Socket 1 is designed for Wi-Fi, Bluetooth®, NFC and WI Gig.
• Socket 2 is designed for WWAN, SSD (caching), and GNSS.
• Socket 3 is designed for SSDs (both SATA and PCIe, up to x4 performance)

Is NVMe faster than SSD?

The end result is that with more PCI-E lanes, and direct PCI-E read/write potential, NVMe drives are typically far faster than SATA SSDs. However, the performance boost is only really seen for sequential read/write speeds. Or, in simpler terms, for moving large files.

How much faster is m2 than SSD?

While SSDs are dramatically faster than traditional HDDs, an even faster option is using NVMe M. 2 drives with speeds up to 3,500 MB/s. You already know what a Solid State Drive (SSD) is and probably have one installed in your laptop or Chromebook.
