The main function of a signal conditioner is to pick up the signal and convert it into a higher level of electrical signal. Signal conversion is often used by industrial applications that use a wide range of sensors to perform measurements..
Also to know is, what is Signal Conditioning and why is it required?

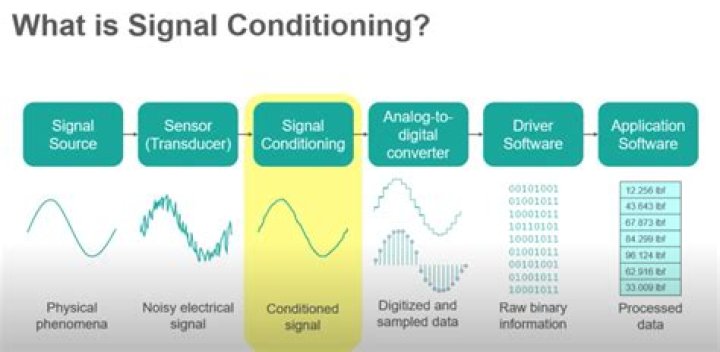

Signal conditioning includes the amplification, filtering, converting, excitation, and other techniques required to make sensor output compatible with data acquisition hardware. The proper design of the signal-conditioning module is critical for maximizing the accuracy of the DAQ system.
Likewise, what is meant by signal conditioning? Most analog signals require some form of preparation before they can be digitized. Signal conditioning is the manipulation of a signal in a way that prepares it for the next stage of processing. Many applications involve environmental or structural measurement, such as temperature and vibration, from sensors.
Likewise, people ask, what is AC signal conditioning system?
Signal Conditioning System: Signal Conditioning System – The measurand, which is basically a physical quantity, is detected by the first stage of the instrumentation or measurement system. The quantity is detected and converted or transduced into an electrical form in most cases.
What is isolation in signal conditioning?
Electronic isolation is a means of preventing the transfer of direct current (dc) and unwanted alternating current (ac) between two parts of a system while still enabling signal and power transfer between those two parts.
Related Question Answers
What is excitation signal?
Excitation Signals. • The type of excitation signal used to estimate frequency response functions depends upon several factors. Generally, the excitation signal is chosen in order to minimize noise while estimating the most accurate frequency response function in the least amount of time.What is signal linearization?
Signal linearization is the process of mapping voltage or current produced by a sensor and the corresponding value of physical quantity being measured. This is necessary to interpret the voltage or current signal that a sensor produces whose response is not linear.What do you mean by modulation?
Modulation is the process of converting data into radio waves by adding information to an electronic or optical carrier signal. A carrier signal is one with a steady waveform -- constant height, or amplitude, and frequency.What is a signal in networking?
A signal is an electrical or electromagnetic current that is used for carrying data from one device or network to another. It is the key component behind virtually all: Communication. Computing. Networking.What is DC signal conditioning?
A dc signal conditioner, as the name implies, is a device which will convert a dc input signal into a dc output signal which is proportional to, and galvanically isolated from the input signal. Other input/output values available.)What is sample and hold circuit?
In electronics, a sample and hold (also known as sample and follow) circuit is an analog device that samples (captures, takes) the voltage of a continuously varying analog signal and holds (locks, freezes) its value at a constant level for a specified minimum period of time.Which type of signal conditioning is required in thermocouple?
Thermocouples require the following signal conditioning: Amplification for High-Resolution ADC—Thermocouples generate very low-voltage signals, usually measured in microvolts.What is DAQ card?
Instrumentation - Data Acquisition Card. Data acquisition (DAQ) is the process of measuring an event in terms of voltage, current, pressure, temperature or sound. A DAQ system includes high-speed data acquisition measurement hardware (a DAQ card or module), input devices such as sensors, and a computer or processor.What do you mean by transducer?
A transducer is a device that converts energy from one form to another. Usually a transducer converts a signal in one form of energy to a signal in another. The process of converting one form of energy to another is known as transduction.What is the difference between AC and DC signals?
The difference between AC and DC lies in the direction in which the electrons flow. In DC, the electrons flow steadily in a single direction, or "forward." In AC, electrons keep switching directions, sometimes going "forward" and then going "backward."What is signal conditioning in mechatronics?
The signal-conditioning interface is the part of the measurement system where the measured signal is converted to an analog or digital electrical signal that is required by the instrument. In mechatronic systems, accurate measurement of the dynamic variables plays a vital role for the actuators to function properly.What is delay line in CRO?
113 Delay Line. A delay line is used in an oscilloscope to view the leading edge of the trigger event. The trigger signal is usually derived from the vertical signal path. A delay line placed in the vertical signal path after the trigger signal will result in the ability to display trigger portion of the signal.What is the difference between sensor and transducer?
Difference Between Sensor & Transducer. One of the significant difference between the sensor and the transducer is that the sensor senses the physical changes occur in the surrounding whereas the transducer converts the physical quantity or nonelectrical into another signal or electrical signal.How do you convert analog to digital?
ADCs follow a sequence when converting analog signals to digital. They first sample the signal, then quantify it to determine the resolution of the signal, and finally set binary values and send it to the system to read the digital signal. Two important aspects of the ADC are its sampling rate and resolution.What is op amp in electronics?
An operational amplifier (often op-amp or opamp) is a DC-coupled high-gain electronic voltage amplifier with a differential input and, usually, a single-ended output. Op-amps may be packaged as components or used as elements of more complex integrated circuits. The op-amp is one type of differential amplifier.What is the use of instrumentation amplifier?
The instrumentation amplifier is one kind of differential amplifier which provides very high gain, high CMRR and high input impedance and it is designed for very specific applications. It is used in certain industrial applications (to amplify the output of the transducers) and in test and measurement equipment.Why isolation is required?
Electrical isolation is required to prevent damage to either electrical circuit when one of them is under fault conditions. It is also done to isolate high voltage and low voltage circuits. There are lots of such applications of electrical isolation.What is the importance of signal conditioning?
Signal conditioning plays an important role to achieve signal at a particular level when there are many inputs or outputs between the PLC controller and the outside world and also to isolate it from possible electrical hazards such as high voltages.What is circuit isolation?
Isolation is the electrical or magnetic separation between two circuits and often used to separate two distinct sections of a power supply. This barrier ensures that the electrical equipment is safe by preventing electric shock and fire hazards.
