What is the theory of hydraulics?

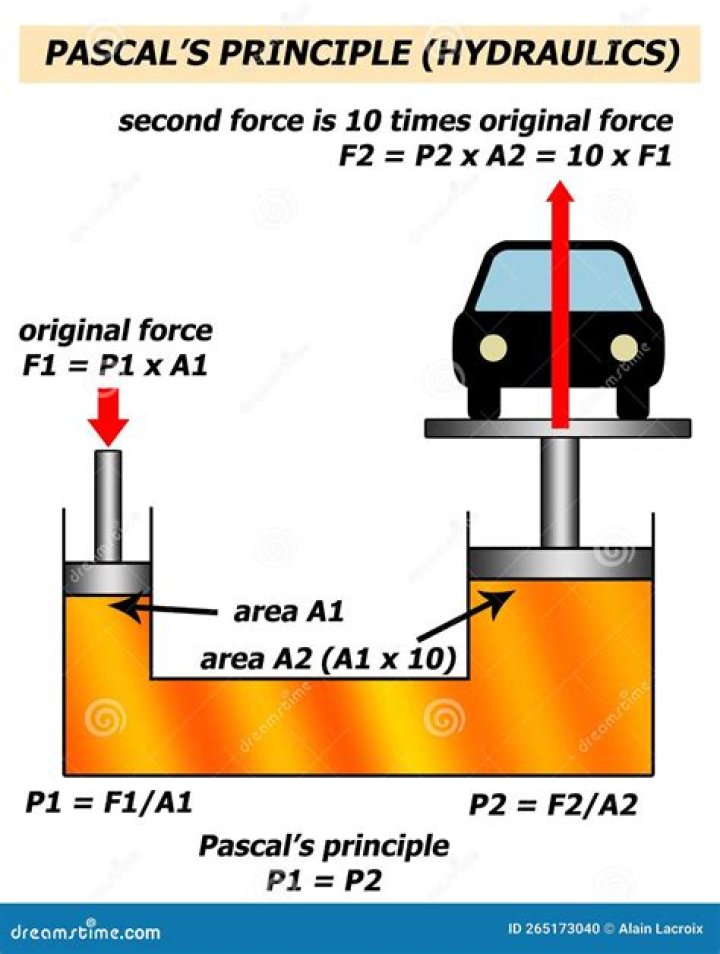

The basis for all hydraulic systems is expressed by Pascal's law which states that the pressure exerted anywhere upon an enclosed liquid is transmitted undiminished, in all directions, to the interior of the container. This principle allows large forces to be generated with relatively little effort.

.

Keeping this in view, what is hydraulics and how does it work?

Hydraulic systems use the pump to push hydraulic fluid through the system to create fluid power. The fluid passes through the valves and flows to the cylinder where the hydraulic energy converts back into mechanical energy. The valves help to direct the flow of the liquid and relieve pressure when needed.

Additionally, what is meant by hydraulic system? A hydraulic system is a drive technology where a fluid is used to move the energy from e.g. an electric motor to an actuator, such as a hydraulic cylinder.

Similarly, you may ask, what are the basics of hydraulics?

Basic components of a hydraulic system A basic system consists of a hydraulic pump, reservoir for hydraulic fluid, directional valve, check valve, pressure relieve valve, selector valve, actuator, and filter.

What are the 5 basic components of a hydraulic system?

Oil, reservoir, deaerator(sometimes), filter, pump, control valves, whatever you are powering (cylinder, motor), lots of tube/hoses and connectors, pressure control/relief valve. The hydraulic system is divided into five parts: 1.

Related Question Answers

What is the purpose of hydraulics?

The major function of a hydraulic fluid is to provide energy transmission through the system which enables work and motion to be accomplished. Hydraulic fluids are also responsible for lubrication, heat transfer and contamination control.

What are the two types of hydraulic systems?

Open loop hydraulic system and closed loop hydraulic system are the two types of hydraulic system. In an open loop system, when the actuating mechanism is idle, there will be fluid flow but no pressure. For a closed loop system, when the pump operates there will be pressure for fluids.

What are the basic principles of hydraulics?

Pascal's Law, framed by Blaise Pascal, states that “Pressure applied to any part of a confined fluid transmits to every other part with no loss. The pressure acts with equal force on all equal areas of the confining walls and perpendicular to the walls." This is the basic principle for any hydraulic system.

What are five hydraulic devices?

Some examples of hydraulic devices:

• Hydraulic jack for your car.
• Hydraulic steering.
• Hydraulic brake.
• Hydraulic press.
• Cladding machine.
• Brick making machine.
• Hydraulic power pack.
• Crane.

Why are hydraulics so powerful?

Hydraulics work because you can't make liquid smaller. So you can push a little bit of liquid a long ways into a tube, or you can push a lot of liquid a little way, and everything will be at the same pressure. Same pressure and more area means more force.

Who is the father of hydraulics?

Joseph Bramah

How do you build hydraulics?

How to Make a Simple Hydraulic System

1. Prepare Your Materials. Get a 20 ml syringe, a 100 ml syringe, some rubber tubing and vegetable oil.
2. Fill the Syringes. Fill the syringes half full with vegetable oil.
3. Attach the Tubing. Insert the nozzle of the larger syringe into one end of the rubber tubing.
4. Test Your Simple Hydraulic System.

How do you maintain a hydraulic system?

A list of Preventive Maintenance Task for a Hydraulic System could be:

1. Change the (could be the return or pressure filter) hydraulic filter.
2. Obtain a hydraulic fluid sample.
3. Filter hydraulic fluid.
4. Check hydraulic actuators.
5. Clean the inside of a hydraulic reservoir.
6. Clean the outside of a hydraulic reservoir.

What do you mean by hydraulic?

Hydraulics is mechanical function that operates through the force of liquid pressure. In hydraulics-based systems, mechanical movement is produced by contained, pumped liquid, typically through cylinders moving pistons. Hydraulics is mechanical function that operates through the force of liquid pressure.

What is a hydraulic diagram?

This aids in hydraulic component recognition and identification. Graphical Diagrams are the shorthand system of the fluid power hydraulics industry. They comprise simple, geometric symbols, drawn to ANSI or ISO standards that represent the hydraulic components, their controls and connections.

What does Pascal's principle state?

Pascal's law (also Pascal's principle or the principle of transmission of fluid-pressure) is a principle in fluid mechanics given by Blaise Pascal that states that a pressure change at any point in a confined incompressible fluid is transmitted throughout the fluid such that the same change occurs everywhere.

What are the two types of fluid power systems and how do they work?

Fluid power is subdivided into hydraulics using a liquid such as mineral oil or water, and pneumatics using a gas such as air or other gases. Fluid power systems perform work by a pressurized fluid bearing directly on a piston in a cylinder or in a fluid motor.

What is back pressure in hydraulics?

Back pressure. occurs when hydraulic flow in the return line is restricted and causes a buildup of pressure backward through the line. This is undesirable as it robs the entire system of potential flow as the pump now has to produce more power to overcome the back pressure.

How do you read hydraulics?

The science behind hydraulics is called Pascal's principle. Essentially, because the liquid in the pipe is incompressible, the pressure must stay constant all the way through it, even when you're pushing it hard at one end or the other. Now pressure is defined as the force acting per unit of area.

What does a spool valve do?

Spool valves direct the flow of fluid to and from other valves within a hydraulic system. A typical four-way spool valve has openings leading to and from another valve, as well as from the fluid pump and to the fluid reservoir.

How much pressure is in a hydraulic system?

Hydraulic pumps supply fluid to the components in the system. Pressure in the system develops in reaction to the load. Hence, a pump rated for 5,000 psi is capable of maintaining flow against a load of 5,000 psi.

What are examples of hydraulics?

Hydraulic System Examples Other examples include lifting equipment, such as hydraulic jacks and wheelchair lifts, lifting and excavating arms on backhoes and other heavy equipment, hydraulic presses, which produce metal components, and some parts of aircraft and boats, including wing flaps and rudders.

Why do we need hydraulics?

The reason to use hydraulics is because they are able to transmit a very high pressure or force with a small volume of fluid (hydraulic oil). Power assisted brakes is where you will see this application the most in small experimental aircraft.

Where do we use hydraulic systems?

With a variety of applications, hydraulic systems are used in all kinds of large and small industrial settings, as well as buildings, construction equipment, and vehicles. Paper mills, logging, manufacturing, robotics, and steel processing are leading users of hydraulic equipment.
