What is the temperature range in medium temperature refrigeration?

Ultra Low Temp Refrigeration. In a typical cascade system, a standard refrigeration system is used on the \u201chigh side\u201d to create a cold temperature in the cascade condenser. The \u201clow side\u201d system is able to condense at -20 to -30\u02da and evaporate as low as -120\u02da with the available refrigerants before they go into vacuum.

Keeping this in view, what is medium temp refrigeration?

• Medium temperature refrigeration. – Box temperatures range from 28°F to 40°F. • Low temperature refrigeration. – Box temperatures range from -20°F to 0°F. – Lower temperature are used for special applications.

Furthermore, what is low temp refrigeration? Ultra Low Temp Refrigeration. The lowest temperature that can practically be achieved in single-stage refrigeration systems is about -40 to -50˚F. A single-stage system is limited by the compression ratio of the compressor and the ambient temperature in which it must condense the refrigerant.

In this manner, what is refrigerant temperature?

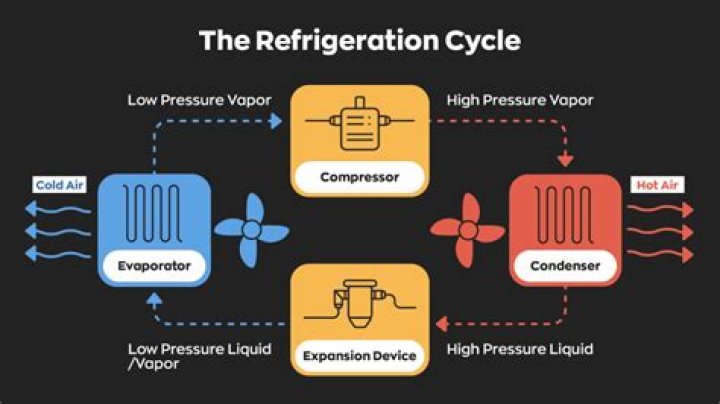

Like anything that is put under pressure, the increased pressure from the compressor causes the temperature of the refrigerant to rise. As it leaves the compressor, the refrigerant is a hot vapor, roughly 120° to 140°F. It now flows into the outdoor coil, (known as the condenser).

What is condensing temperature in refrigeration?

The condensing temperature is the temperature at which a cooling medium changes phases from a gas to a liquid. When this phase change occurs, the cooling medium condenses. The temperature at which a cooling medium condenses is dependent on the type of coolant and the condensing pressure.

What is high temp refrigeration?

REFRIGERATION is the process of removing heat energy from a place where it is not wanted and disposing of it in a place where it is wanted to an area where it is not objectionable. HIGH TEMPERATURE is used for product storage above freezing. MEDIUM TEMPERATURE is used for storing frozen foods and fresh food storage.

What does ahri do?

AHRI: Supporting Nationwide and Global Industry The Air-Conditioning, Heating, and Refrigeration Institute (AHRI) is the trade association representing manufacturers of HVACR and water heating equipment within the global industry.

What are the approximate temperature ranges for low medium and high temperature refrigeration?

Heat raises off hot food being stored, heavier cold air falls out-> warm air replaces cold air, heat transfer through walls or insulation because of warmer room temperatures. 2. What are the approximate temperature ranges for low-, medium-, and high-temperature refrigeration applications? High: 50 -> 60 degrees.

What is a common evaporator temperature difference on air cooling evaporators?

Air conditioner evaporator If the air passing over the coils of the evaporator is 75 degrees F then the difference is 35 degrees F. That is a wide enough temperature difference for the heat easily pass from the air to the refrigerant.

What happens when room temperature soda is poured into a glass of ice?

What happens when room temperature soda is poured into a glass of ice? The ice gets colder. The ice melts because it is giving up the "cold" to the soda. The ice melts because it is absorbing heat from the soda.

Where is the refrigerant sight glass normally located?

The usual location for sight glass on the liquid line as close as possible to the receiver outlet, or the condenser outlet, if the receiver is not used.

What temp should my suction line be?

A lack of adequate cooling in the house and possible compressor damage are the implications. Look for the suction line to be at roughly 45F to 55F, and the liquid line to be at about 90F to 110F. If the suction line isn't cold, or the liquid line isn't warm, servicing should be recommended.

Why is the suction line cold?

Because the coils are so cold, the condensation that forms on the coils will freeze. As ice builds up on the coils, it restricts the air flow through the coils. This cause the temperature of the suction line to drop, and just like in the evaporator, cause the condensation to freeze.

How do you check evaporator coil temperature?

First, measure the relative humidity of the air stream entering the evaporator coil using a digital psychrometer or similar device. Next, accurately measure the temperature of the air entering the evaporator coil and the air leaving the evaporator coil. Subtract the two to find the temperature difference or ∆T.

What is saturation temp?

Saturation temperature means boiling point. The saturation temperature is the temperature for a corresponding saturation pressure at which a liquid boils into its vapor phase. Any addition of thermal energy results in a phase transition.

What is the running pressure of r22?

Example R-22 Refrigerant Temperature vs Pressure Data
Ambient Temperature in °F¹	R22 Vapor Pressure at Sea Level	R-22 High Side Pressure³
95°F (35°C)	181.9 psig	250 psi
110°F (43.3°C)	226.4 psig
150°F (65.6°C)	381.7 psig

What is the suction and discharge pressure for r22?

For example, a high-efficiency condensing unit using R-22 typically operates with a suction pressure of about 68 psi and a discharge pressure of about 250 psi at an outdoor temperature of 95°F.

What is boiling point in refrigeration?

For example the refrigerant commonly used in refrigerators boils between 40° and 50°F as compared to water's boiling point of 212°F. Let's look at the process to see how boiling and condensing a refrigerant can move heat. The process is the same whether it is operating a refrigerator, an air conditioner or a heat pump.

Why do air conditioning evaporators normally operate at 40 degrees?

They have larger evaporators and condensers surface and that's why they operate more efficiency because it takes less energy to move the refrigerant through the system. The cause of the frost is that the evaporator is operating below freezing. Why do air conditioning evaporators normally operate at 40°F?

What is a good evaporator coil temperature?

about 40° F

How does a 2 stage ammonia refrigeration system work?

Two stage ammonia industrial refrigeration system The main flow of refrigerant passes through a coil inside the tank, the refrigerant passes through this and into the main expansion valve just like the single stage system then continues its flow via the separator, the evaporator and back to the separator.

How does a cascade refrigeration system work?

The cascade refrigeration system is a freezing system that uses two kinds of refrigerants having different boiling points, which run through their own independent freezing cycle and are joined by a heat exchanger. This system is employed to obtain temperatures of -40 to -80°C or ultra-low temperatures lower than them.

What is the relationship between pressure and the boiling point of liquids?

1 Answer. The boiling point is the temperature at which the vapor pressure of the liquid equals the pressure at enviornment of liquid and the liquid changes to vapor. A liquid in a vacuum has a lower boiling point than when that liquid is at atmospheric pressure.

How does a two stage refrigeration compressor work?

Two-stage systems By cooling the refrigerant vapor after the first compressor, the discharge gas leaving the high-stage compressor can be kept at an acceptable temperature level. The intermediate cooling also increases the compressor efficiency, which reduces the compressor power consumption.
