What is the purpose of tie bars in pavement?

Tie bars are deformed bars placed (connectors) that are used for holding faces of rigid slabs in contact to maintain aggregate interlock. they are not loaded transferring device. For example, tie bars are used in longitudinal joints in concrete pavement.

.

Also to know is, what is the purpose of providing tie bar in PQC panel?

Tie bars are deformed rebars or connectors used for holding faces of rigid slabs in contact to maintain aggregate interlock. For instance, tie bars are used in longitudinal joints in concrete pavement.

Secondly, why is a dowel bar necessary for rigid pavement? The purpose of the dowel bar is to effectively transfer the load between two concrete slabs and to keep the two slabs in same height. The dowel bars are provided in the direction of the traffic (longitudinal).

In respect to this, what is a tie bar in construction?

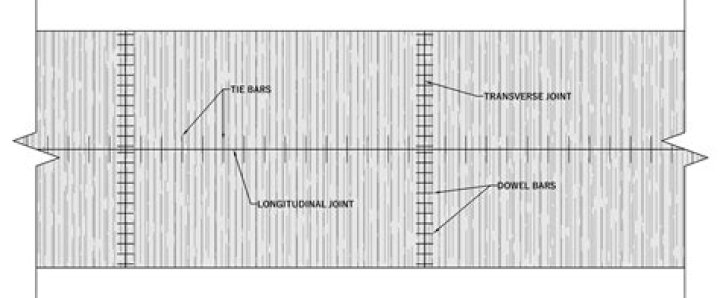

Tie bars are either deformed steel bars or connectors used to hold the faces of abutting slabs in contact (AASHTO, 1993). Tie bars are typically used at longitudinal joints (see Figure 1) or between an edge joint and a curb or shoulder.

Where are dowel bars used?

Dowel bars are placed at the transverse joints of concrete pavement and they take part in partial wheel load transfer from one slab to its adjacent slab. The dowel bars also allow axial thermal expansion and contraction of the concrete slab along the axis of the dowel.

Related Question Answers

Why ties are used in column?

In reinforced concrete structure ties are used in columns. To hold the longitudinal bars in position in the forms while the concrete is being placed. To prevent the highly stressed slender longitudinal bars from buckling outward by bursting the thin concrete cover.

Why rigid pavement is provided?

The design of rigid pavement is based on providing a structural cement concrete slab of sufficient strength to resists the loads from traffic. The rigid pavement has rigidity and high modulus of elasticity to distribute the load over a relatively wide area of soil.

Why joints are provided in rigid pavement?

JOINTS IN RIGID PAVEMENT Joints are the discontinuities in the concrete pavement slab, and help to release stresses due to temperature variation, subgrade moisture variation, shrinkage of concrete etc.

What is a longitudinal joint?

A longitudinal joint is the interface between two adjacent and parallel HMA mats. Improperly constructed longitudinal joints can cause premature deterioration of multilane HMA pavements in the form of cracking and raveling (Figures 1 and 2).

What is dowel bar in footing?

Dowel bars are provided in reinforced concrete footings to transfer the load from columns (e.g. isolated square column footing) to the footing. They are necessary when the concrete bearing alone is not enough to transfer loading from column to the footing.

What is contraction joint?

Contraction Joints A contraction joint is a sawed, formed, or tooled groove in a concrete slab that creates a weakened vertical plane. It regulates the location of the cracking caused by dimensional changes in the slab. Contraction joints are chiefly defined by their spacing and their method of load transfer.

What is the point of a tie bar?

A tie clip (also tie slide, tie bar, or tie clasp) is a clothing accessory that is used to clip a tie to the underlying shirt front, preventing it from swinging and ensuring that the tie hangs straight, resulting in a neat, uniform appearance.

Why dowel bar is used?

Dowel bars are short steel bars that provide a mechanical connection between slabs without restricting horizontal joint movement. They increase load transfer efficiency by allowing the leave slab to assume some of the load before the load is actually over it.

What is dowel in construction?

A dowel is a solid cylindrical rod, usually made from wood, plastic, or metal. In civil construction, “dowels” mostly means a round steel bar which is used to provide a mechanical connection between slabs without restricting horizontal joint movement.

How thick is concrete pavement?

Many highway agencies have tight specifications for concrete pavement thickness. Typically, a large reduction in lot payment may result if the concrete pavement thickness is 12.5 mm (0.5 in.) less than specified for as-designed pavement thicknesses in the range of 250 mm to 300 mm (9.8 in. to 11.8 in.).

What is the difference between rigid and flexible pavement?

Main difference is load distribution. Rigid pavements as the name shows are like rigid slabs placed on earth which takes load by itself though its strength and rigidity. Flexible pavements use bitumen as binder while rigid use concrete. Flexible are more comfortable than rigid for travel.

What are the types of rigid pavement?

Rigid pavements can be classified into four types:

• Jointed plain concrete pavement (JPCP),
• Jointed reinforced concrete pavement (JRCP),
• Continuous reinforced concrete pavement (CRCP), and.
• Pre-stressed concrete pavement (PCP).

Why do we use dowel pins?

fastening device Hardened and precisely shaped dowel pins are used to keep machine components in accurate alignment; they are also used as location guides for adjacent machine parts and to keep the two sections of a punch and die in alignment.

What is rigid pavement design?

Rigid pavement design. 29.1 Overview. As the name implies, rigid pavements are rigid i.e, they do not flex much under loading like flexible pavements. They are constructed using cement concrete. In this case, the load carrying capacity is mainly due to the rigidity ad high modulus of elasticity of the slab (slab action

How do you install dowel bars?

Dowel Bar Locations The conventional approach to dowel bar placement in new pavement construction is to place 11 bars for a 12-foot lane, starting with the first bar located 12 inches from the pavement edge, with all of the bars placed 12 inches apart from the next adjacent bar.

What is warping stress for rigid pavement?

WARPING DURING THE DAY AND WARPING STRESSES The temperature differential between the top and bottom of the CC pavement results in differential expansion the slab causing it to warp or bend . As warping is resisted by the self weight of the concrete pavement slab.

What is radius of relative stiffness?

Radius of relative stiffness of slab to sub-grade: Same amount of deflection will occur on the top surface of the sub-grade. This means that the amount of deflection which is going to occur in the rigid pavement pavement layer depends both on relative stiffness of the pavement slab with respect to that of sub-grade.

What is a dowel used for?

What are wooden dowels used for? Dowels are used for making strong, accurate joints in wood. They are thicker and sturdier than nails or screws and therefore less prone to breakage. They provide a stronger joint than just using glue as they insert into both the pieces of wood being joined together.

Are dowels and rebar the same?

Instead of being used for the big heavy hard stuff like concrete, dowels are usually used in wood joints to keep parts together. So dowels and rebars are only the same in that they are both rods, can be made out of metals and are used to support something. rebar lesser than that of a small dia.
