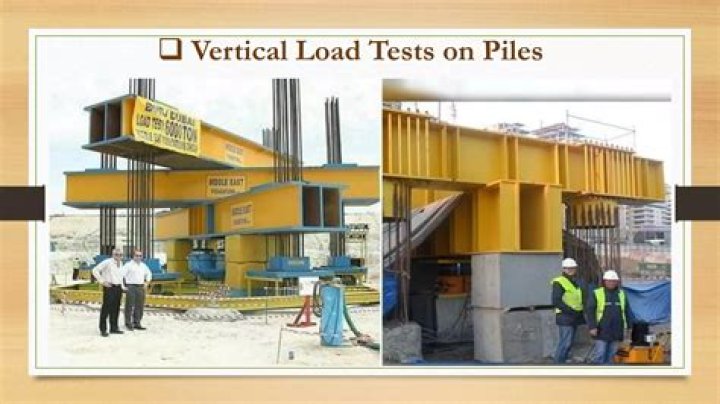

What is the purpose of pile load test?

The purpose of pile load test is: To determine settlement under working load. To determine ultimate bearing capacity. To ascertain as a proof of acceptability.

.

People also ask, what is pile load?

Pile load test. The measurement of pile movement are taken with respect to a fixed reference mark. ? The load is applied in equal increment of about 20% of the allowable load.

Also Know, what is ultimate load test for piling? Pile load test provides information on ultimate bearing capacity but not settlement behavior. In essence, it can determine if the load is taken up by the stratum designed or if the centre of resistance is at the design location in piles as suggested by Robert D.

Then, how a load test for a pile is carried out?

Initial Test on piles are to be carried out at one or more locations depending on the number of piles required. Load applied for the initial (cyclic) load test is 2.5 times the safe carrying capacity of the pile. Loading for Initial Tests is conducted as per Appendix 'A' Clause 6.3 of IS-2911 Part IV.

What is test pile in construction?

Tests for Pile Foundations Low strain pile integrity test is a popular non-destructive test method to examine the piles for a uniform cross section and/ or detect flaws like voids, cracks, length etc. Test involves generating stress waves at the pile head and recording the response of the reflected waves.

Related Question Answers

What are the different types of piling?

Followings are the types of pile foundation used in construction:

• Based on Function or Use. Sheet Piles. Load Bearing Piles. End bearing Piles. Friction Piles. Soil Compactor Piles.
• Based on Materials and Construction Method. Timber Piles. Concrete Piles. Steel Piles. Composite Piles.

How is piling done?

How does Piling work? Piling works by inserting large amounts of wood, steel or concrete into the soil of the ground. The deep insertion of these elements ensures a sturdier base for the construction project to take place.

How is pile capacity calculated?

Step 1: compute the skin friction of an individual pile. Ultimate end bearing capacity in clay = N_c × C × pile tip area (N_c = 9). Ultimate end bearing capacity in soft clay = 9 × 120 × π × diameter²/4 = 848.2 lbs/per pile. Total ultimate bearing capacity per pile = 76,920 + 848.2 = 77,768 lbs.

How many piles should be tested?

1 preliminary pile test per 500 piles. 1 working pile test per 100 piles. For pile tests in situations where the risk level is high, consideration should be given to using instrumentation within the pile, employing either strain gauges or fibre optics.

How many types of pile foundation are there?

There are two fundamental types of pile foundations (based on structural behaviour), each of which works in its own way. In end bearing piles, the bottom end of the pile rests on a layer of especially strong soil or rock.

Is 2911 pile load test?

IS: 2911 – (part-IV) – Codes of practice for design and Construction of Pile Foundations – Load test on piles. 1.4. 1 The load test shall be required to provide data regarding the load – deformation characteristics of the pile up to failure or otherwise specified and the safe design capacity.

What is dynamic pile load test?

Dynamic load testing (or dynamic loading) is a method to assess a pile's bearing capacity by applying a dynamic load to the pile head (a falling mass) while recording acceleration and strain on the pile head. For steel or timber piles, dynamic load testing can be done during installation or after installation.

What is PDA test?

The PILE DRIVING ANALYZER (PDA) system is the most widely employed system for Dynamic Load Testing and Pile Driving Monitoring in the world. High Strain Dynamic Load Tests, also called PDA tests, assess the capacity of several piles in a single day.

What is plate load test?

The Plate Bearing Test (or Plate Loading Test) is an insitu load bearing test of soil used for determining the ultimate bearing capacity of the ground and the likely settlement under a given load. A factor of safety is applied to give the safe bearing capacity of soil.

What is negative skin friction?

Negative Skin Friction. It is a downward shear drag that occurs on pile or group of pile, due to downward sinking of surrounding soils relative to the piles.

What does piling on mean?

pile on - definition and synonyms To increase, or to increase something:increase, go up, add to [intransitive/transitive] [pile on something] if someone piles on weight, or if it piles on, their weight increases suddenly and by a large amount.

What is Kentledge construction?

Kentledge (fr. ballast), or kentledge weights, are slabs or blocks of concrete or iron (commonly scrap iron or pig iron). On construction sites, prior to the erection of a building, static load testing may use a large number of kentledge stacked onto a platform.

What is cyclic pile load test?

Hence, cyclic load test were conducted on series of piles to arrive at a relationship between the pile load capacity and the depth of pile. Based on cyclic pile load test data, it was possible to separate the pile capacity in to skin friction and end bearing components.

What is lateral load test?

A new reinforced concrete arch bridge called 'Eye' has been constructed in Skopje. Arch bridges transfer significant lateral loads to foundations, so lateral load test on two full-scale RC bored piles has been performed on Site to prove actual load capacity of the pile-soil system.

What is the difference between static load test and dynamic load test?

Static load testing is an in situ type of load testing used in geotechnical investigation to determine the bearing capacity of deep foundations prior to the construction of a building. It differs from the statnamic load test and dynamic load testing in that the pressure applied to the pile is slower.

What are the limitations of plate load test?

The limitations of plate load test are: (i) It has limited depth of influence. It could only give the bearing capacity of soils with depth up to two times the diameter of plate. (ii) It may not provide information on the potential for long term consolidation of foundation soils.

What is a working pile?

Piling is a type of deep foundation, used to transfer the load to a deeper level than is possible with a traditional shallow foundation. Vertical columns of concrete, steel or wood, or a combination, are driven deep into the ground to give extra support to the building that sits on top.

What is pile working load?

I) Test Pile Any pile to which a test loading is, or is to be, applied. J) Ultimate Bearing Capacity The load at which the resistance of the soil becomes fully mobilised. K) Working Load The load which the pile is designed to carry. L) Working Pile One of the piles forming the foundation of a structure.

What is the purpose of pile integrity test?

Pile integrity testing using low strain tests such as the TDR (Transient Dynamic Response) method, is a rapid way of assessing the continuity and integrity of concrete piled foundations. However, this method is also used to test the integrity and to determine the length of piles embedded in structures.
