What is the purpose of patch panel in networking?

A patch panel in a local area network (LAN) is a mounted hardware assembly that contains ports used to connect and manage incoming and outgoing LAN cables. Patch panels are also referred to as patch bays, patch fields or jack fields and are also commonly used in radio and television.

.

Accordingly, how does a patch panel work?

How does a patch panel work - A patch panel is a passive networking hub that bundles multiple ports together connecting incoming and outgoing lines. Each port connects by means of an ethernet or patch cable, and sends data to an outgoing port location.

Also, should I use a patch panel for home network? If you want to have a wired network with many wall network ports coming out in different rooms of the house, it's best to use a patch panel at the central location where the router/switch and/or the home server is. Wiring a patch panel is very similar to wiring a network wall port.

Also, what is the difference between a switch and a patch panel?

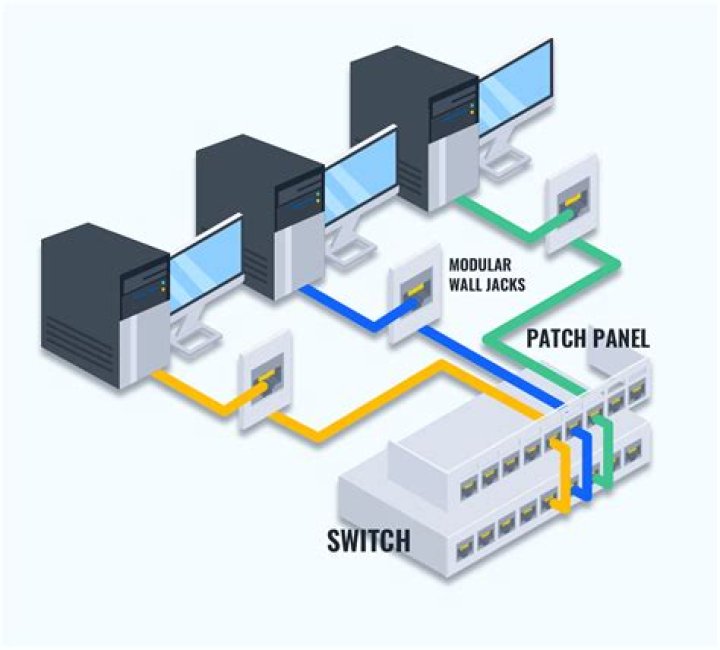

The switch routes all data to & from PC's, internet modem, server etc so that data can be exchanged between devices. A patch panel has a cable from say a port by a desk connected to it. You then patch it to a switch to connect the desk port to your network.

What is Patch in networking?

Patch (computing) A patch is a set of changes to a computer program or its supporting data designed to update, fix, or improve it. This includes fixing security vulnerabilities and other bugs, with such patches usually being called bugfixes or bug fixes, and improving the functionality, usability or performance.

Related Question Answers

Do I really need a patch panel?

The most important reasons to use patch panels include: Organization – A patch panel will be each to reach and see, and every cable is going into one central location. Having a patch panel helps reduce the risk of unplanned outages by making it much easier to add and remove cables without touching the main hardware.

How do you set up a patch panel?

Steps for Installing a Patch Panel and Switch

1. Determine where the patch panel and switch should be installed.
2. Build or purchase pre-terminated patch cords.
3. Map out the ports.
4. Mount the patch panel and switch.
5. Connect the patch panel to the switch.
6. Install cable management.
7. Label cable.

How does a patch panel connected to a switch?

From the patch panel, small patch cables plug into a port on the panel, and then the cable plugs into the switch. It is much easier to replace a patch cable than to run new wires to the computer room or throughout a building. An eight port switch is designed handle network traffic.

How many ports does a patch panel have?

Ports make the panel Patch cords can then be easily placed into the ports. Patch panels typically consist of four or eight modules of eight ports each, for a total of 24 or 48 ports respectively. But panels can consist of up to 96 ports and have been known to reach 336.

Why use a patch panel and a switch?

The answer is that patch panel and switch play different roles in the cabling system. Patch panel acts just as a connector which will not make any influences on data transmission, but a network switch connects hardware within a network to enable them to access the Internet, share data etc.

Is a patch panel a hub?

A patch panel is a hub only in the sense that it is a physical device in which wires are concentrated, but it cannot be used to network computers. All true hubs used in networking are active hubs, which are powered devices that regenerate signals coming into one port for transmission through other ports on the hub.

How does a fiber patch panel work?

Fiber optic patch panel is a mounted hardware unit containing an assembly of port locations in a communication or other electronic or electrical system. Fiber optic patch panel is used to terminate the fiber optic cable and provide access to the cable's individual fibers for cross connection.

What is the benefit of using a patch panel?

The advantage of using a patch panel is that it allows manual monitoring, testing, switching, routing, and other maintenance to be handled quickly because the cables in the front that connect to the more permanent cables in the back are configured and made so that changes can be made quickly and easily when needed.

What is a patch cable used for?

A patch cable, patch cord or patch lead is an electrical or optical cable used to connect ("patch in") one electronic or optical device such as a miniature spectrometer to another for signal routing.

What are switches in it?

A network switch (also called switching hub, bridging hub, officially MAC bridge) is networking hardware that connects devices on a computer network by using packet switching to receive and forward data to the destination device. Switches for Ethernet are the most common form of network switch.

How do you wire a patch panel?

How to Wire a Patch Panel

1. Buy a patch panel. When buying the patch panel, ensure it has 110 style insulation displacement connectors.
2. Design a cable map.
3. Remove cable jackets from incoming Ethernet cables.
4. Remove internal plastic jackets (if any)
5. Untwist and spread the cable wires.
6. Set your wires to the panel connector.
7. Complete your connections.

How do I install a network switch?

HOW TO SETUP A NETWORK SWITCH

1. Connect an Ethernet cable into an outgoing port on your modem or router – sometimes marked as a “WAN” port (on a router – any port will do)
2. Take the other end of the Ethernet cable and plug it into any port on your switch.
3. Now plug another Ethernet cable cable into another port on your switch.

How do you clean a rj45 connector?

Corrosion Repair If corrosion is caught early a simple cotton swab and ~91% Isopropyl Alcohol (rubbing alcohol) may be enough to clean the connector of corrosion. In some slightly more advanced situations more connector robust contact cleaning solutions may be used.

What does rj45 stand for?

Registered jack-45

What is data patch?

Datapatch is the new tool that enables automation of post-patch SQL actions for RDBMS patches. and. Datapatch can be executed to complete post-patch SQL actions after the database is restarted following patch application. For patches that do not have post-patch SQL actions to be performed, calling datapatch is a no-op.

What does IDF stand for in networking?

intermediate distribution frame

What is the difference between a patch and an update?

A patch is basically a diff between two MSI databases of the same product (e.g. v1. 0.0 and v1. 0.1) and can be installed only on target machines where its target MSI (i.e. v1. A major upgrade is the installation of a new product version (e.g. v2.

What is the difference between a patch panel and a switch?

A patch panel has a cable from say a port by a desk connected to it. Think of the patch panel as just a bunch of network cables that in effect connect to nothing. The switch connects all the panels outputs to each other so that all the devices on the other end of the cables of your network can share data.

Why is patching so important?

Patching is the process of repairing system vulnerabilities which are discovered after the infrastructure components have been released on the market. This is why it is necessary to devise a patch management process to ensure the proper preventive measures are taken against potential threats.
