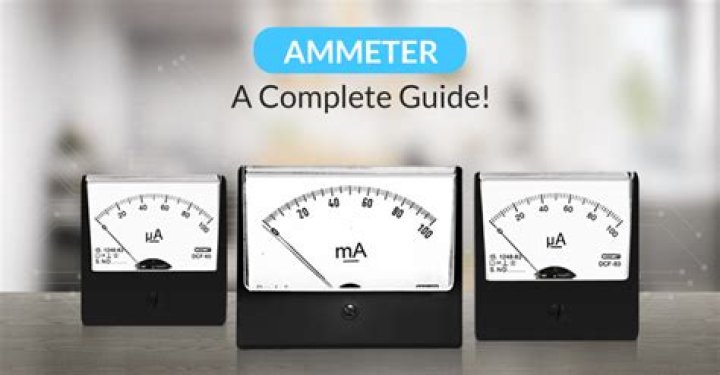

What is the meaning of range of ammeter?

Range of the ammeter means the maximum capacity of current it reads. For example if you take an ammeter which has a dial 0 —300, it means it can read the current upto 300 amp.

.

Beside this, how do you determine the range of an ammeter?

Ammeters must always be connected in series with the circuit under test. Always start with the highest range of an ammeter. Deenergize and discharge the circuit completely before you connect or disconnect the ammeter. In dc ammeters, observe the proper circuit polarity to prevent the meter from being damaged.

Beside above, how does an ammeter work? Ammeter Function Ammeters work to measure electrical current by measuring the current through a set of coils with a very low resistance and inductive reactance. You must connect an ammeter in series when measuring the current of a circuit. The low impedance of the ammeters means it won't lose much power.

Also, when an ammeter is shunted its measuring range?

When an ammeter is shunted then it provides the low resistance path. In order to increase the range of ammeter, the value of shunt resistance is decreased. When an ammeter is shunted then its measuring range will increase.

What is the range of galvanometer?

A galvanometer has current range of 15 mA and toppr.com.

Related Question Answers

How do you measure current?

To measure current, you must connect the two leads of the ammeter in the circuit so that the current flows through the ammeter. In other words, the ammeter must become a part of the circuit itself. The only way to measure the current flowing through a simple circuit is to insert your ammeter into the circuit.

How many types of ammeter are there?

By the current, the ammeter categorises into two types.

How do you measure voltage?

To measure voltage on an electronic circuit, you don't have to insert the meter into the circuit. Instead, all you have to do is touch the leads of the multimeter to any two points in the circuit. When you do, the multimeter displays the voltage that exists between those two points.

How can we increase the range of ammeter?

The range of an ammeter can be easily increased by adding a shunt resistance of very low value to bypass the major part of the current through the resistance path instead of ammeter. This increases the range of an ammeter by reducing the actual current flow through the ammeter.

How do you measure capacitance?

How to measure capacitance

1. Use your digital multimeter (DMM) to ensure all power to the circuit is OFF.
2. Visually inspect the capacitor.
3. Turn the dial to the Capacitance Measurement mode (
4. For a correct measurement, the capacitor will need to be removed from the circuit.
5. Connect the test leads to the capacitor terminals.

What is a series circuit?

Components of an electrical circuit or electronic circuit can be connected in series, parallel, or series-parallel. In a series circuit, the current that flows through each of the components is the same, and the voltage across the circuit is the sum of the individual voltage drops across each component.

How is potential difference measured?

To measure the potential difference across a component, a voltmeter must be placed in parallel with that component in order to measure the difference in energy from one side of the component to the other. Potential difference is also known as voltage and is measured in volts (V).

What is the range of the ammeter?

An Ammeter in Real-Life Designs Although the D'Arsonval meter movement itself probably has a full scale rating in the range of milliamps, the meter as a whole has a range of +/- 60 amps. The shunt resistor providing this high current range is enclosed within the metal housing of the meter.

What will happen if shunt resistance in ammeter has a large value?

If the shunt resistance is changed to a larger value, then less current will flow in the shunt and more in the galvanometer coil, so the reading will be in error by being too large. If you open the shunt, you might damage the galvanometer.

What is the range of a shunt resistance?

Shunt resistors have a maximum current rating. The resistance value is given by the voltage drop at the maximum current rating. For example, a shunt resistor rated with 100A and 50mV has a resistance of 50 / 100 = 0.5 mOhm. The voltage drop at maximum current is typically rated 50, 75 or 100 mV.

Why use a shunt with an ammeter?

An ammeter shunt allows the measurement of current values too large to be directly measured by a particular ammeter. In this case, a separate shunt, a resistor of very low but accurately known resistance, is placed in parallel with a voltmeter, so that all of the current to be measured will flow through the shunt.

What is shunt resistance in physics?

shunt resistance. (noun) a small resistance R placed in parallel with a galvanometer G to produce an ammeter; the larger the current to be measured, the smaller R must be; most of the current flowing through the meter is shunted through R to protect the galvanometer.

What is the effect on the current measuring range of a galvanometer when it is shunted?

Value of shunt is so adjusted that most of the current passes through the shunt. In this way a Galvanometer is converted into Ammeter and can measure heavy currents without fully deflected. Hope this information will clear your doubts about (Moving charges and magnetism).

Why the range of an ammeter can be increased but it Cannot be decreased?

The range of ammeter can be increased but cannot be decreased. The reason is that a series resistor cannot change the current that will produce full deflection. If I < I g I < I_{g} I<Ig, then the value of S is negative. Hence a galvanometer cannot be converted into an ammeter of range I < I g I < I_{g} I<Ig.

What are the two types of ammeters?

There are two types of ammeters used in the industry today: the clamp-on ammeter and the ____________________. The differences among the various electric meters, except for digital meters, are not in the meter movements, but in the internal circuits of the meter and in how the magnetic fields are created.

What are the types of ammeter?

Types

• Moving-coil. The D'Arsonval galvanometer is a moving coil ammeter.
• Moving magnet. Moving magnet ammeters operate on essentially the same principle as moving coil, except that the coil is mounted in the meter case, and a permanent magnet moves the needle.
• Electrodynamic.
• Moving-iron.
• Hot-wire.
• Digital.
• Integrating.

What is meant by 1 ampere?

An ampere is a unit of measure of the rate of electron flow or current in an electrical conductor. One ampere of current represents one coulomb of electrical charge (6.24 x 10¹⁸ charge carriers) moving past a specific point in one second. The ampere is named after Andre Marie Ampere, French physicist (1775-1836).

What are the uses of ammeter?

An ammeter is an instrument used for measuring electric current in units of amperes. An ammeter must be connected in series with the path of the current being measured. Setting the ammeter up in parallel will create a short circuit and will not measure the current correctly.

How do you measure ammeter?

It is measured in the unit of the Ampere, simply called “Amp,” (A). The most common way to measure current in a circuit is to break the circuit open and insert an “ammeter” in series (in-line) with the circuit so that all electrons flowing through the circuit also have to go through the meter.
