What is the majority carrier in ap type semiconductor?

In p-type semiconductor, large number of holes is present. Hence, holes are the majority charge carriers in the p-type semiconductor. The holes (majority charge carriers) carry most of the electric charge or electric current in the p-type semiconductor.

.

Also to know is, what type of charge carriers are there in ap type semiconductor?

The charge carriers that are present in large quantity are called majority charge carriers. In a p- type semiconductor, the majority charge carriers are the holes whereas in the n- type semiconductor, the majority charge carriers are the free electrons.

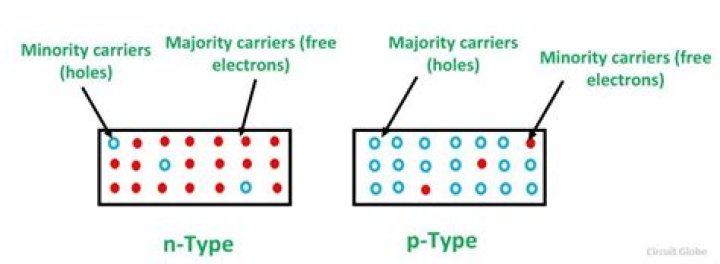

Furthermore, what do you mean by majority and minority carriers? Majority and Minority Carriers. In an n-type semiconductor, the electrons are the majority carriers whereas, the holes are the minority carriers. This means the electron provided by Pentavalent impurity added and a share of electron-hole pairs.

In this regard, what is majority carriers in electronics?

noun. the entity responsible for carrying the greater part of the current in a semiconductor. In n-type semiconductors the majority carriers are electrons; in p-type semiconductors they are positively charged holes. Compare minority carrier.

What are majority and minority charge carriers in pn junction?

A p-n junction diode is made up of p type and n type semiconductors. In p side holes are in majority, so they are the majority charge carriers and free electrons are the minority charge carriers. In n side free electrons are in majority, those are the majority charge carriers and holes are the minority charge carriers.

Related Question Answers

What is the difference between intrinsic and extrinsic semiconductors?

The difference between intrinsic and extrinsic semiconductor is that Intrinsic semiconductors are the pure form of semiconductor materials. Whereas extrinsic semiconductors are impure semiconductor formed by adding an impurity to a pure semiconductor.

Do conductors have holes as charge carriers?

The reason that holes are not usually discussed in conductors is because they exist only for extremely short lengths of time as the electrons “hop” from one atom to an adjacent atom. Holes exist in a conductor for such a short time that they have no measurable effect on the conduction of electricity.

What is N type semiconductor?

An N-type semiconductor is a type of material used in electronics. It is made by adding an impurity to a pure semiconductor such as silicon or germanium. The impurities used may be phosphorus, arsenic, antimony, bismuth or some other chemical element. They are called donor impurities.

What is carrier in semiconductor?

The charge carriers in a semiconductor are electrons and holes. Holes are unoccupied electron states in the valence band of the semiconductor. The valence band is a completely filled band where every quantum state is occupied by an electron at absolute zero. The electrons in this band are thus “immobilized”.

How do holes carry charge?

In physics, a hole is an electric charge carrier with a positive charge, equal in magnitude but opposite in polarity to the charge on the electron. Both electrons and holes are present in any semiconductor substance. Electrons flow from minus to plus, and holes "flow" from plus to minus.

Why conductors do not have holes?

Electron holes do exist in conductors: inside p-type silicon conductors. (I think you mean to ask, do holes not exist in metal wires.) “Holes” are positive ions inside a semiconductor crystal. Whenever holes are moving around, it's actually the bonding-electrons which jump between neighbors.

What is mobile charge?

Definition. mobile charge. electrically charged species which can move in the MOS gate oxide under the influence of electric field; causes severe instabilities of MOSFET characteristics, e.g. fluctuations of the threshold voltage V_T; Na⁺ ions are the most common mobile charges in SiO₂.

Why are minority carriers important?

Minority carrier lifetime. The minority carrier lifetime is one of the most important and significant material parameters. It is extremely sensitive to smallest amounts of impurities or intrinsic defects and hence an ideal parameter for inline characterization of material quality and process control.

What is forward bias?

Forward bias. Biasing is such an arrangement made in the PN junction device so that the device allows the flow of larger current in one direction. The device is said to be forward biased if the anode is connected to the positive end and cathode is connected to the negative end of the battery.

How are the minority carriers generated?

They originate from the thermal excitation or optical excitation of semiconductors. In case of extrinsic semiconductors, the original/intrinsic carrier concentration is much lower than the majority concentration which comes from doping. As a consequence the intrinsic carriers are commonly referred as minority.

What is meant by depletion region?

Depletion region or depletion layer is a region in a P-N junction diode where no mobile charge carriers are present. Depletion layer acts like a barrier that opposes the flow of electrons from n-side and holes from p-side.

What is charge carrier in mercury?

Mercury is a metal and all metal have the charge carrier electrons.So the charge carrier of mercury is electrons.

What do u mean by diode?

A diode is a specialized electronic component with two electrodes called the anode and the cathode. Most diodes are made with semiconductor materials such as silicon, germanium, or selenium. The fundamental property of a diode is its tendency to conduct electric current in only one direction.

What is the current?

Current is the flow of electrical charge carriers like electrons. Current flows from negative to positive points. One ampere of current is defined as one coulomb of electrical charge moving past a unique point in a second. Electric current is widely used in household and industrial appliances.

What is majority carriers in semiconductor?

Majority and minority carriers The more abundant charge carriers are called majority carriers, which are primarily responsible for current transport in a piece of semiconductor. In n-type semiconductors they are electrons, while in p-type semiconductors they are holes.

What is a PN junction diode?

A p-n junction diode is a basic semiconductor device that controls the flow of electric current in a circuit. It has a positive (p) side and a negative (n) side. To make a p-n junction diode, a different impurity is added to each side of a silicon semiconductor to change how many extra holes or electrons are present.

What causes the depletion layer?

Depletion Region Details Filling a hole makes a negative ion and leaves behind a positive ion on the n-side. A space charge builds up, creating a depletion region which inhibits any further electron transfer unless it is helped by putting a forward bias on the junction.

What is the minority carrier concentration?

The total number of carriers in the conduction and valence band is called the equilibrium carrier concentration. The product of minority and majority charge carriers is a constant.

What are excess charge carriers?

EXCESS CARRIERS IN SEMICONDUCTORS. • Excess carriers, essential for device operation, are created by optical excitation, electron. bombardment, or injected across a forward-biased p-n junction. • These excess carriers can dominate the conduction process in semiconductor materials.
