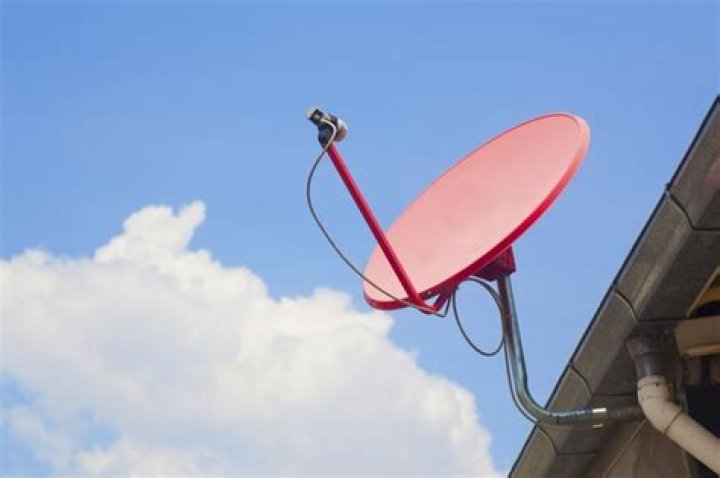

What is the LNB on a satellite dish?

A low-noise block downconverter (LNB) is the receiving device mounted on satellite dishes used for satellite TV reception, which collects the radio waves from the dish and converts them to a signal which is sent through a cable to the receiver inside the building.

.

Subsequently, one may also ask, how do you change the LNB on a satellite dish?

How to Change a Dish LNB

1. Remove the old LNB from the LNB arm. This is the metal arm that extends away from the dish, holding the LNB at the focal point.
2. Disconnect the co-axial cable that runs through the LNB arm and screws onto the connector on the back of the LNB.
3. Connect the co-axial cable to the new LNB.

can I use any LNB on my dish? As a general rule, you can't use an LNB unless it's designed for the dish you have. If you use the wrong LNB, the dish will focus the signals in the wrong place and you'll get no reception. DIRECTV and DISH have specific LNBs that are designed to pull in signals from their specific fleets of satellites.

Also question is, how do you test a satellite LNB?

How to Check a Satellite LNB

1. First of all, disconnect the power of satellite TV receiver or Satcom modem and then check the LNB.
2. Check the joints, if they are loose, screw them, or if they are corroded, you will have to replace it with a new one.
3. Now check the LNB using satellite signal meter.
4. Now, read the signals in the meter.

What is LNB voltage?

lnb voltage level. Many dual polarisation Ku band LNB-Fs (incorporating a feed horn), as used for satellite TV reception need a switchable 13 or 19 volt supply which remotely changes the nominal receive polarisation.

Related Question Answers

How do I know if my LNB is bad?

Signs of a faulty LNB include missing satellite television channels, video pixelation, signal drop-out during heavy rain or the complete loss of signal. To troubleshoot an LNB, first visually check the device and then test the signal levels with a digital-satellite signal meter.

How do I fix my LNB?

Switch off the satellite TV receiver and disconnect it from the main power supply outlet. Satellite receivers send a low voltage charge up the coaxial cable to power the LNB, so always disconnect the power before checking an LNB. 2. Go to the location of the satellite dish with steps, a ladder or a raised platform.

How do I connect my dish to my LNB?

Connecting Your Satellite Dish to Your TV

1. Connect one end of the coaxial cable to the back of your satellite dish labeled “LNB”
2. Connect the other end of the coaxial cable to your satellite receiver in the port marked “Sat in”.
3. Next, connect one end of the HDMI cable to the 'output' port in the back of the satellite.

How do you know if LNB is working?

Turn on the meter and check the signal strength. If you don't get a reading move the dish either right or left about 3 degrees at a time to see if you can locate a signal. If you do locate a signal, even if the strength is weak, your LNB is working. If you are unable to find a signal your LNB isn't working.

How do I align my satellite dish?

To get a satellite dish aligned correctly, you must maximise the signal on three plains. This is the left and right or east and west (azimuth) adjustment. The elevation angle which is up and down and the skew adjustment, this is angle that the LNB itself is fixed into the LNB holder.

How do you set up a dual LNB satellite?

Remove the satellite receiver. Place the replacement satellite receiver that can switch the signal from the Dual LNB in the position now vacated. Connect the cables to the appropriate connections on the back of the replacement satellite receiver. Screw the coaxial cable into the coax input on the back of the receiver.

What is a dual LNB used for?

A dual LNB (Low Noise Block-Down Converter) is an LNB system that features two outputs rather than one and allows satellite television subscribers to watch multiple channels on separate television sets simultaneously.

How long does a satellite LNB last?

Yes it is, though you're assuming the LNB is in use 24/7. If you were to use a figure of 14 hours of use per day (0900 - 2300) it's a lifetime of just over 714 days, or a bit less than two years.

How can I improve my LNB signal quality?

To increase satellite signal strength of your dish antenna, the cable connector like F-connector should be properly installed and connected to both the receiver and dish antenna. Preferably use coaxial cable with not more than 25m long i.e connection distance between dish antenna and the receiver.

What angle should my LNB be at?

The LNB has to be at an angle of roughly 40 degrees with respect to vertical - so if vertical is such that the connector is right at the bottom, and you are looking into the direction the dish is pointing, then turn the LNB clockwise 40 degrees.

How do you set a LNB skew angle?

When standing in front of your dish, rotate the Feed/LNB assembly counter-clockwise for a + skew value or rotate the Feed/LNB assembly clockwise for a - skew value. Ignore any +/- on the scale (it may be the wrong way round). Numbers like 0, +45, -45, -90, +90 may also be back to front.

How do I check my dish signal strength?

1. To find your signal strength on a Hopper or Wally receiver, go to Menu > Settings > Diagnostics > Dish.
2. To find your signal strength on a ViP receiver, go to Menu > System Setup > Installation > Point Dish.

How much does a LNB cost?

The recommended retail price of the DStv Smart LNB is R449.

Why am I not getting a satellite signal?

If you've got no signal strength try the following steps: Switch the Sky + HD box and TV to standby. Wait a few minutes and then switch off all connected items and unplug them from the mains. Disconnect and then reconnect the cables from the satellite to Dish Input 1 and Dish Input 2 at the back of your box.

Which is the best LNB?

3 Best Lnbs - February 2020 , IN

• Best Value for Money. Directv 8-Way Wide Band Splitter for SWM LNB. By Zinwell 9.8 View.
• #2. Tradico® Universal Full HD Digital KU-Band Single LNB Satellite Receiver One Piece. 9.5 View.
• Budget Choice. DBEX 2 PORT LNB FOR DTH MULTIPLE SET TOP BOX. By Generic 9.2 View.

What are the different types of LNB?

Different Types of LNB's

• LNBFs. Direct broadcast satellite (DBS) dishes use an LNBF (LNB with feedhorn), which integrates the antenna feedhorn with the low noise block converter (LNB).
• Universal LNB.
• Standard North America Ku-band LNB.
• North America DBS LNB.
• C-band LNB.
• Dual/Quad/Octo LNBs.
• Quattro LNBs.
• Monoblock LNBs.

What is LNB frequency of DD free dish?

DD Free dish uses LNB type "Universal" and LNB Frequency is 09750-10600.

What LNB do I need for Freeview?

Live TV signals for FreeviewPlus^® and Freeview Satellite^® are transmitted from the Optus D1 satellite. We recommend a minimum dish size of 60cm with a single 11.300 GHz LO Frequency LNB. If you're using a satellite dish to pick up TV signal, make sure you get an approved product that works with a satellite dish.

Does a bigger satellite dish improve signal?

The larger the satellite dish, the better it will receive signals. A satellite dish should be as small as possible, while still being large enough to deliver good signal quality. Closer to the equator, smaller satellite dishes work perfectly well.
