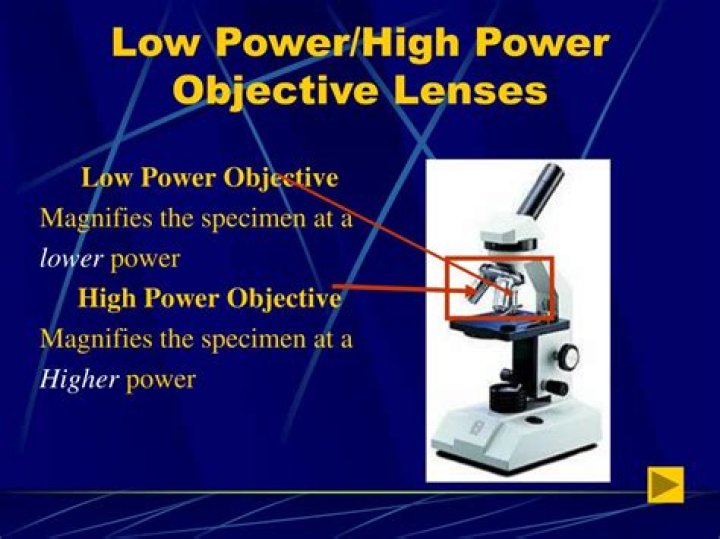

What is the function of the low power objective on a microscope?
.
In this manner, what is the function of the high power objective on a microscope?
A high-power objective lens magnifies 40x, with total magnification 400x if the eyepiece lens is 10x power, and it is ideal for observing very fine detail, such as nerve cells in the retina or the striations in skeletal muscle. The longest objective lens is an oil immersion objective lens, which magnifies 100x.
Additionally, what is the function of the light source on a microscope? Illuminator is the light source for a microscope, typically located in the base of the microscope. Most light microscopes use low voltage, halogen bulbs with continuous variable lighting control located within the base. Condenser is used to collect and focus the light from the illuminator on to the specimen.
People also ask, what is the lower power objective?
The low-power objective in a microscope, typically a 4x-10x, is the objective with the lowest magnification in the microscope. Specially when one does not know what one is looking for, or where it is in the sample, it is useful to have a low-power objective to navigate the sample.
What are the 3 types of objectives in a microscope?
Objective Lenses: Usually you will find 3 or 4 objective lenses on a microscope. They almost always consist of 4x, 10x, 40x and 100x powers. When coupled with a 10x (most common) eyepiece lens, we get total magnification of 40x (4x times 10x), 100x, 400x, and 1000x.
Related Question AnswersWhat is the function of eyepiece?
Eyepiece: The lens the viewer looks through to see the specimen. The eyepiece usually contains a 10X or 15X power lens. Diopter Adjustment: Useful as a means to change focus on one eyepiece so as to correct for any difference in vision between your two eyes.What is total magnification?
Total magnification is when the object being viewed is magnified to its maximum limit.What are the types of objective lenses?
The two main types of lenses found in light microscopes today are called the objective lens and the ocular (or eyepiece lens).Types of Objective Lens & Their Functions
- Scanning Objective Lens (4x)
- Low Power Objective (10x)
- High Power Objective Lens (40x)
- Oil Immersion Objective (100x)
What are the 12 parts of a microscope?
Read on to find out more about microscope parts and how to use them.- The Eyepiece Lens. •••
- The Eyepiece Tube. •••
- The Microscope Arm. •••
- The Microscope Base. •••
- The Microscope Illuminator. •••
- Stage and Stage Clips. •••
- The Microscope Nosepiece. •••
- The Objective Lenses. •••
What is the function of an objective lens in a microscope?
In microscopy, the objective lenses are the optical elements closest to the specimen. The objective lens gathers light from the specimen, which is focused to produce the real image that is seen on the ocular lens. Objective lenses are the most complex part of the microscope due to their multi-element design.What is resolving power of a microscope?
Resolving power is defined as the ability of a microscope or telescope to distinguish two close together images as being separate. An example of resolving power is how well a telescope can show two stars as being separate stars. YourDictionary definition and usage example.How do you switch objectives?
Compound Microscopes Turn the revolving turret (2) so that the lowest power objective lens (eg. 4x) is clicked into position. Place the microscope slide on the stage (6) and fasten it with the stage clips. Look at the objective lens (3) and the stage from the side and turn the focus knob (4) so the stage moves upward.How does a microscope objective work?
The objective, located closest to the object, relays a real image of the object to the eyepiece. This part of the microscope is needed to produce the base magnification. The eyepiece, located closest to the eye or sensor, projects and magnifies this real image and yields a virtual image of the object.How do you use the high power objective?
To use the lens, first make sure the specimen is in focus under the high power (40X) objective. Next, move the high power objective out of position, place a small drop of oil on top of the cover slip above the specimen to be viewed and move the oil immersion lens into place.What is the difference between high and low power objective?
The most obvious difference between a low power and a high power microscope is that a high power microscope can resolve smaller features, which is usually achieved with objective lenses of greater magnification.Why is the low power objective used first?
When using a light microscope it's important to start with the low power objective lens as the field of view will be wider, increasing the number of cells you are able to see. This makes it easier to find what you're looking for.What is another name for the 100x objective lens?
My 100x objective is called a wet objective.What is the 40x objective lens called?
The 4X lens is called the scanning or low power lens. The 40X lens is known as the high power objective. The 100X objective is known as the oil immersion objective because you must add a drop of oil to the slide to fill the gap between the coverslip and the lens, thus immersing the lens in oil.What is the formula for total magnification?
To figure the total magnification of an image that you are viewing through the microscope is really quite simple. To get the total magnification take the power of the objective (4X, 10X, 40x) and multiply by the power of the eyepiece, usually 10X.What is the function of stage?
All microscopes are designed to include a stage where the specimen (usually mounted onto a glass slide) is placed for observation. Stages are often equipped with a mechanical device that holds the specimen slide in place and can smoothly translate the slide back and forth as well as from side to side.Which objective lens has the greatest depth of field?
The depth of focus is greatest on the lowest power objective. Each time you switch to a higher power, the depth of focus is reduced. Therefore a smaller part of the specimen is in focus at higher power. The amount of light transmitted to your eye is greatest at the low power.What does Parfocal mean?
A. Parfocal means that the microscope is binocular. B. Parfocal means that when one objective lens is in focus, then the other objectives will also be in focus.What are the two functions of the eyepiece?
Functions of eyepiece in the microscope:- To further magnify the intermediate image so that specimen details can be observed.
- Focuses the light rays from the primary to form a sharp image on the retina of the eye.
