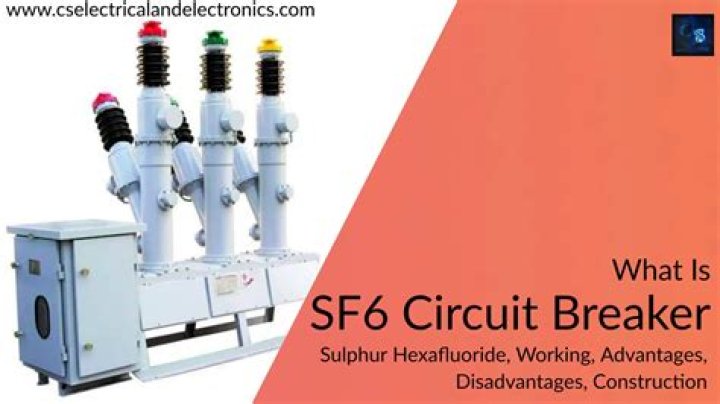

What is the function of sf6 circuit breaker?

Instead of oil, air, or a vacuum, a sulfur hexafluoride circuit breaker uses sulfur hexafluoride (SF₆) gas to cool and quench the arc on opening a circuit. Advantages over other media include lower operating noise and no emission of hot gases, and relatively low maintenance.

.

Then, what is sf6 used for?

SF6 is an anthropogenically produced compound, mainly used as a gaseous dielectric in gas insulated switchgear power installations. It is a potent greenhouse gas with a high global warming potential, and its concentration in the earth atmosphere is rapidly increasing.

where is sf6 used? Within the electrical industry SF₆ is used as an insulating medium for medium (MV) and high (HV) voltage electrical switchgear. A switchgear is the combination of electrical disconnect switches, fuses or circuit breakers used to control, protect and isolate sections of electrical grids.

Besides, what is gas circuit breaker?

Gas circuit breakers are automatically operated high voltage electrical switches designed to protect high voltage electrical circuits from damage caused by overload or short circuit.

How bad is sf6?

Pure SF6 is physiologically completely harmless for humans and animals. It's even used in medical diagnostic. Due to its weight it might displace the oxygen in the air, if large quantities are concentrating in deeper and non ventilated places. Legislation for chemicals does not categorise SF6 as a hazardous material.

Related Question Answers

Is sf6 heavier than air?

Sulphur hexafluoride (SF₆) is a synthetic (i.e., human-made) gas that is colourless, odorless, non-toxic (except when exposed to extreme temperatures), and non-flammable. It is heavier than air and hence stays close to the ground upon release which can cause death by suffocation if large quantities are involved.

What are the advantages of sf6 circuit breaker?

SF6 Circuit Breakers Advantages: Excellent insulating, arc extinguishing, physical and chemical properties of SF6 gas is greater advantage of SF6 circuit breakers. The gas is non-inflammable and chemically stable. The decomposition products are non-explosive i.e, rhere is no risk of fire or explosion.

Is sf6 flammable?

SF6 is a colorless, odorless, non-toxic, non-flammable compound with high chemical stability, obtained through chemical reactions between sulfur, and fluorinated gas produced by the electrolysis of anhydrous hydrofluoric acid (HF).

Does sulfur hexafluoride change your voice?

The speed of sound in helium is faster than in air because the helium is lighter than air. Sulfur hexafluoride makes your voice sound very low because sound travels slower in heavy gases.

How many lone pairs are in sf6?

SF6 molecular geometry. Sulfur hexafluoride has a central sulfur atom around which one can see 12 electrons or 6 electron pairs. Thus, the SF6 electron geometry is considered to be octahedral. All the F-S-F bonds are 90 degrees, and it has no lone pairs.

Does sulfur hexafluoride get you high?

* Breathing Sulfur Hexafluoride can irritate the nose and throat. Higher exposures can cause a build-up of fluid in the lungs (pulmonary edema), a medical emergency, with severe shortness of breath. * High exposure can cause headache, confusion, dizziness, suffocation, fainting, seizures and coma.

Is sf6 used in the US?

SF6 serves an important role as an insulator and arc-quenching medium in electrical transmission and distribution equipment, as a cover gas in magnesium production and processing, and as an etchant in the electronics manufacturing industry (primarily semiconductor manufacturing in the United States).

How many types of circuit breakers are there?

The three types of circuit breakers are standard, GFCI and AFCI. Each handles different amp capacities and operates in different locations in the home. Standard circuit breakers monitor the flow of electricity as it enters your home and makes its way through your electrical wiring system to outlets and appliances.

How does sf6 breaker work?

In an SF6 Circuit breaker, sulphur hexafluoride gas is used as the arc quenching medium. The contacts of the breaker are opened in a high-pressure flow sulphur hexafluoride (SF6) gas and an arc is struck between them. The gas captures the conducting free electrons in the arc to form relatively immobile negative ions.

What is the difference between VCB and sf6 breaker?

Difference between VCB and SF6 circuit breaker. In VCB or vacuum circuit breakers vacuum is used for arc quenching. The contacts of the breaker are kept in vacuum inside an airtight chamber. On the other hand in SF6 circuit breakers SF6 gas is used as the insulating medium.

What is the meaning of sf6?

Noun. 1. sulfur hexafluoride - a colorless gas that is soluble in alcohol and ether; a powerful greenhouse gas widely used in the electrical utility industry.

What are the characteristics of sf6 gas?

SF₆ gas is highly electronegative. Due to high electronegativity, it absorbs free electrons which are produced due to arcing between contacts of circuit breaker. Combination of free electrons with molecules produces heavy and big ions, which have very low mobility.

What is arc quenching?

What is quenching an arc? When the reed contacts open they break a circuit. If there is a voltage and current present when the contacts open they will stop the current flow. Quenching the arc refers to the stoppage of the arc and/or metal transfer.

How does a circuit breaker work?

A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current from an overload or short circuit. Its basic function is to interrupt current flow after a fault is detected.

What is difference between VCB and ACB?

A short term of ACB-air circuit breaker, VCB – Vacuum circuit breaker and SF6 for Sulphur hexa fluoride. Short circuit breaking capacity is depending upon the arc quenching medium. Since ACB has less since air get ionized easily and ionized air act as a conductive medium.

What is the VCB?

A vacuum circuit breaker is a kind of circuit breaker where the arc quenching takes place in vacuum medium. The operation of switching on and closing of current carrying contacts and interrelated arc interruption takes place in a vacuum chamber in the breaker which is called vacuum interrupter.

How long does sf6 stay in the atmosphere?

SF₆ is included in the Kyoto Protocol because, molecule-for-molecule, it is a powerful greenhouse gas with a long (>1000 years) lifetime in the atmosphere.

Is sulfur hexafluoride polar or nonpolar?

Sulfur hexafluoride, abbreviated as SF6, is a nonpolar molecule. SF6 has an octahedral molecular geometry, which means that the sulfur molecule has six fluorine atoms surrounding it. While each individual bond is polar, there is no net effect, meaning that the molecule is nonpolar.

Why is sf6 a good insulator?

Sulphur hexafluoride gas (SF6) is employed as insulation in all parts of the installation, and in the circuit-breaker also for arc-quenching. SF6 is an electronegative gas, its dielectric strength at atmospheric pressure is approximately three times that of air. New SF6 gas must comply with IEC 60376 (VDE 0373 Part 1).
