The role of the collector region is to collect or attract current carriers injected inot the base region of the transistor. In a bipolar junction transistor, current flows from the emitter to the collector and then out from the collector. Therefore, the collector attracts the majority of the charge carrier..
Also asked, what is the main function of a transistor?
A transistor is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit.
Similarly, what is the collector current of a transistor? The collector current, Ic, of a transistor is the amplified output current of a bipolar junction transistor.
Similarly one may ask, what is transistor and its working?
A transistor is a miniature electronic component that can do two different jobs. It can work either as an amplifier or a switch: When it works as an amplifier, it takes in a tiny electric current at one end (an input current) and produces a much bigger electric current (an output current) at the other.
What is collector and emitter?

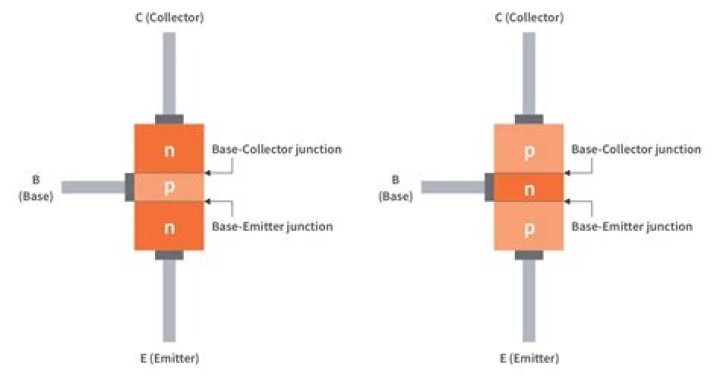

JUNCTION TRANSISTORS Such a transistor is an NPN transistor. One of the outside layers is called the emitter, and the other is known as the collector. The middle layer is the base. The places where the emitter joins the base and the base joins the collector are called junctions.
Related Question Answers
What are the two main functions of a transistor?
There are two main functions of the transistors. - First of it is amplification. The transistors are used as a voltage amplifier or as a current amplifier using a transistor in different modes.
- The second one is for switching purpose. In this functionality, the transistor is used to configure logic gates.
What is the function of NPN transistor?
NPN Transistor. Definition: The transistor in which one p-type material is placed between two n-type materials is known as NPN transistor. The NPN transistor amplifies the weak signal enter into the base and produces strong amplify signals at the collector end.What is the symbol for a transistor?
Transistor Symbols The symbol of NPN and PNP is shown in the figure below. The arrow in the symbol indicates the direction of flow of conventional current in the emitter with forward biasing applied to the emitter-base junction.Why do we need transistors?
Electronic engineers use transistors to control the flow of electricity in circuits. They can operate up to billions of cycles per second, amplifying or switching electric currents. Specialized transistors can make colorful displays and sense light.What are transistors made of?
Materials. Transistors are made of semiconductor chemical elements, usually silicon, which belongs to the modern Group 14 (formerly Group IV) in the periodic table of elements. Germanium, another group-14 element, is used together with silicon in specialized transistors.What are the types of transistors?
Transistors are basically classified into two types; they are Bipolar Junction Transistors (BJT) and Field Effect Transistors (FET). The BJTs are again classified into NPN and PNP transistors. The FET transistors are classified into JFET and MOSFET.How many transistors are in a CPU?
A dual-core mobile variant of the Intel Core i3/i5/i7 has around 1.75 Billion transistors for a die size of 101.83 mm² according to WikiChip. This works out at a density of 17.185 million transistors per square millimetre.How do you test a transistor?
Hook the positive lead from the multimeter to the to the EMITTER (E) of the transistor. Hook the negative meter lead to the BASE (B) of the transistor. For an good NPN transistor, you should see “OL” (Over Limit). If you are testing PNP transistor, the meter should show a voltage drop between 0.45V and 0.9V.Why transistor is so called?
However, since it transfers signal from input to output, and it is in some way, like a varistor, then name was transfer + resistance = transistor. Another thing is it is as well a combination of transfer and resistor, or transconductor and resistor. This is how the name transistor was coined by John Pierce.What are the characteristics of transistor?
Transistor Characteristics. Input Characteristics: These describe the changes in input current with the variation in the values of input voltage keeping the output voltage constant. Output Characteristics: This is a plot of output current versus output voltage with constant input current.How do transistors work as switches?
One of the most common uses for transistors in an electronic circuit is as simple switches. In short, a transistor conducts current across the collector-emitter path only when a voltage is applied to the base. When no base voltage is present, the switch is off. When base voltage is present, the switch is on.What is a transistor and its types?
There are two types of transistors in present; they are bipolar junction transistor (BJT), field effect transistors (FET). A small current is flowing between the base and the emitter; base terminal can control a larger current flow between the collector and the emitter terminals.How do resistors work?
A conductor has low resistance, while an insulator has much higher resistance. Devices called resistors let us introduce precisely controlled amounts of resistance into electrical circuits. A resistor works by converting electrical energy into heat, which is dissipated into the air.What is a power transistor?
Power transistors are transistors that are used in high-power amplifiers and power supplies. Power transistors are suited for applications where a lot of power is being used- current and voltage. The collector of the transistor is connected to a metal base that acts as a heat sink to dissipate excess power.What is a transistor in a CPU?
A transistor is a basic electrical component that alters the flow of electrical current. Transistors are the building blocks of integrated circuits, such as computer processors, or CPUs. A series of transistors may also be used as a logic gate when performing logical operations.What do you mean by transistor?
A transistor is a device that regulates current or voltage flow and acts as a switch or gate for electronic signals. Transistors consist of three layers of a semiconductor material, each capable of carrying a current. A transistor regulates current or voltage flow and acts as a switch or gate for electronic signals.What is the function of thyristor?
In its most basic form, a thyristor has three terminals: anode (positive terminal), cathode (negative terminal), and gate (control terminal). The gate controls the flow of current between the anode and cathode. The primary function of a thyristor is to control electric power and current by acting as a switch.What is a series circuit?
Components of an electrical circuit or electronic circuit can be connected in series, parallel, or series-parallel. In a series circuit, the current that flows through each of the components is the same, and the voltage across the circuit is the sum of the individual voltage drops across each component.Why is VBE 0.7 V?
For an unbiased transistor, considering only the BE junction which is a pn junction diode, 0.7V is the potential barrier. So the potential barrier vbe=0.7V. But in a pnp transistor the base is negative(n) and emitter is positive(p) so the vbe=-0.7V.
