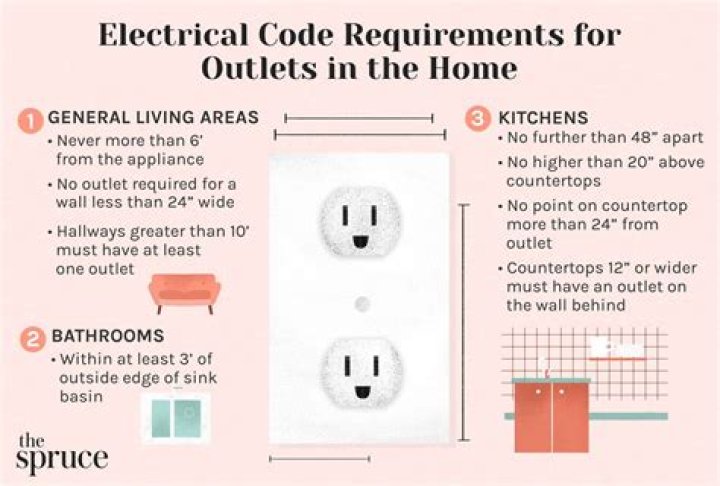

NEC 210–52 Generally, receptacle outlets in habitable rooms shall be installed so that no point along the floor line (measured horizontally) in any wall space is more than 6 feet from an outlet in that space. An outlet shall be installed in each wall space 2 feet or more in width..
Simply so, what is the electrical code for outlets in a kitchen?
In kitchens, electrical outlets should be placed no farther than 48 inches from each other. The idea is that no point on the countertop should be more than 24 inches from an outlet.
Similarly, what is the code for distance between electrical outlets? 12-feet
In this regard, what is the electrical code?
An electrical code is a set of regulations for the design and installation of electrical wiring in a building. The intention of a code is to provide standards to ensure electrical wiring systems that are safe for people and property. Such wiring is subject to rigorous safety standards for design and installation.
Can outlets and lights be on the same circuit?
An option for you if you don't want two switches is just to use a blank face plate (check this question). Basic answer to your question of can a mixture of lights and receptacles be installed on a single circuit is yes. The neutral will be white but some switches are wired up with a white wire that is not a neutral.
Related Question Answers
How do you tell if outlet is 15 or 20 amps?
Electrical plugs designated as 20 amp will not fit into 15-amp outlets. - A 15-amp circuit is usually served by 14-gauge wire and is protected by a 15-amp circuit breaker or fuse.
- A 20-amp circuit, protected by a 20-amp breaker or fuse, must be served by 12-gauge or 10-gauge wire.
How many outlets can be on a 15 amp breaker?
for a 15 amp circuit this allowed for 10 outlets and on a 20 amp circuit 13 outlets were allowed.Do kitchen outlets require 20 amps?
Requirement: Provide at least two 20-amp, 120-volt circuits to supply power to GFCI (Ground Fault Circuit Interrupter) receptacles for countertop and eating areas. Why: The 20 amps are required (vs. 15 amp) for the higher power requirements found in kitchens. Think toaster ovens, blenders, and mixers.How many outlets can be on a breaker?
By rule of thumb you would stick with 8 to 10 outlets and or lights per breaker. Now this is of course they are 120 volts 60 Hz (USA or Canada).How many outlets can you have in a kitchen circuit?
Spreading the Load Your kitchen must have at least two outlets, each on separate circuits, so that if one breaker trips, you still have power.How many electrical circuits are in a house?
In residential, 15 amp circuits are abundant, 20 amp circuits are scarce. Look in your breaker/fuse box at home, and in other homes, and count them up - the 15's and the 20's. The power (amperage) is there. The problem can be the distribution of that power throughout the house.What is NESC?
The National Electrical Safety Code (NESC) or ANSI Standard C2 is a United States standard of the safe installation, operation, and maintenance of electric power and communication utility systems including power substations, power and communication overhead lines, and power and communication underground lines.How many lights should be on a circuit?
50 watt light equals less than 1/2 amp current flow at 120 volts. You can put up to 30 lights (based on 50 watt light) on a 15 amp breaker. You can put up to 40 lights (based on 50 watt light) on a 20 amp breaker.How many outlets can be on a circuit?
12 outlets
What is the meaning of Philippine Electrical Code?
The Philippine Electrical Code is used nationally as the basis for safeguarding persons, buildings and its contents from hazards that may arise from the use of electricity. They are the people responsible for issuing the Electrical Permits which is a requirement for construction and occupancy.What is the current version of the National Electrical Code?
It is formally identified as ANSI/NFPA 70. First published in 1897, the NEC is updated and published every three years, with the 2020 edition being the most current.What is the purpose of the National Electrical Code?
National Electrical Code (NEC) is aimed at safeguarding persons and property from hazards associated with electrical installations. As the preeminent electrical code in the country, it establishes the basics of electrical safety.How close can an outlet be to a stove?
That means that for a kitchen in which the countertop extends to the sink (as most do), there will be a GFCI protected receptacle within 24" of a sink, and where the countertop abuts an electric stove, there will be a receptacle within 24" of the edge of the stove.How far does an outlet have to be from a corner?
The National Electrical Code specifies that you must have an electrical outlet (receptacle) within 6 feet of the corner of any wall and no more than 12 feet separating receptacles on the same wall (6/12 outlet rule). That of course is the minimum requirement for living space .How many outlets can be on a wall?
A. By today's standards, a bedroom should have one outlet for each 12 feet of wall and at least one outlet on each wall. This may be an older building that predates current electrical standards.Do I need an outlet on every wall?
A receptacle outlet must be installed in every kitchen, family room, dining room, living room, sunroom, parlor, library, den, bedroom, recreation room, and similar room or area so that no point along the wall space is more than 6 feet, measured horizontally along the floor line, from a receptacle outlet [210.52(A)] (What is the electrical code for bathrooms?
The minimum requirement for outlet receptacles in a bathroom is one GFCI-protected receptacle served by a 20-amp circuit. This is a bare minimum, however, and most bathrooms will have at least two receptacles, and often as many of four or five.How many LED lights can be on a 15 amp circuit?
Each CFL or LED bulb typically gives the same amount of light as a 60-watt incandescent bulb while drawing 10 watts or less, which is equivalent to a current draw of 1/12 amp. Thus a 15-amp circuit can safely control 180 or more fixtures that use CFL or LED bulbs.How many outlets can you put on a 14 2 wire?
12 outlets
