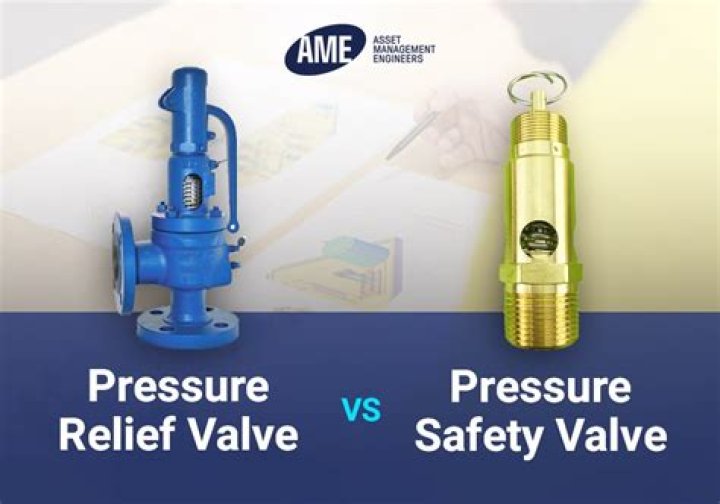

What is the difference between safety valve and pressure relief valve?

The basic difference between a safety & relief valve: A relief valve relieves the pressure by relieving the fluid back into the system, to the low pressure side - eg. the relief valves of a positive displacement pump. A safety valve , on the other hand, relieves the pressure into the atmosphere i.e. out of the system.

Then, what is the use of pressure relief valve?

A relief valve or pressure relief valve (PRV) is a type of safety valve used to control or limit the pressure in a system; pressure might otherwise build up and create a process upset, instrument or equipment failure, or fire.

Also Know, what are the two types of relief valves? The three basic types of pressure-relief valves are conventional spring loaded, balanced spring loaded, and the pilot operated. Conventional spring loaded. In the conventional spring-loaded valve (Fig. 1), the bonnet, spring, and guide are exposed to the released fluids.

Also question is, what is set pressure for safety valve?

Set pressure (PSIG) The set pressure, which is measured in pounds per square inch (PSIG), is the pressure at which a safety or pressure relief valve opens. The set pressure of the valve must not exceed the maximum allowable working pressure (MAWP) of the boiler or other vessel.

Which type of safety valve is used in high pressure?

Pilot - operated relief valves are used in the high pressure and low pressure boiler. Pressure relieve valves are used in high and low pressure boilers. They ensure that the pressure is maintained to the optimum by releasing the excess pressure.

What happens if pressure relief valve fails?

Damage caused by a faulty pressure relief valve Oil pump pressure relief valves can fail in either the open or closed position. This can cause damage to the engine oil filter and to the engine itself. A pressure relief valve that is stuck open can allow too much oil to bleed off.

What causes a pressure relief valve to fail?

Pressure relief valve leaks usually occur when the valve isn't properly seated or when the seal is broken or damaged. Leaks can also happen when the pressure relief valve is operating too closely to the set point.

How often should a pressure relief valve be replaced?

five years

Where is the pressure relief valve located?

Where is the Water Heater Pressure Relief Valve? The T&P valve is usually located high on the side or on top of the tank. It's connected to a pipe that runs down the length of the water heater and stops a few inches above the floor.

Do I need a pressure relief valve?

Installing a pressure relief valve (PRV) before your tankless water heater is not only required in some regions depending on where you live, but is also a very important safety feature. Pressure-relief valves are an essential component of tankless water heaters.

How do you adjust a pressure relief valve?

Turn the nut counterclockwise to reduce the pressure downstream from the valve and clockwise to increase it. Have someone watch the meter, if you can't see it yourself, and stop adjusting when the pressure reaches the desired value. Screw the lock nut back onto the valve and tighten it with a wrench.

How do you adjust pressure relief valve?

How to Set a Hydraulic Relief Valve

Refer to the machine drawings to determine which circuit requires adjustment.
Locate and remove the hydraulic hose or hoses on the system side of the relief valve.
Connect a 5,000 psi pressure gauge between the relief valve and the pump.
Loosen the pressure relief valve adjustment all the way out.

How do you size a safety relief valve?

Here are six factors that must be considered when selecting and sizing safety or pressure relief valves.

Connection size and type. The valve size must correspond to the size of the inlet and discharge piping.
Set pressure (PSIG)
Temperature.
Back pressure.
Service.
Required capacity.

What is maximum allowable relief valve setting?

Maximum allowable working pressure is the maximum gauge pressure permissible in the top of a cargo tank for a designated temperature. It is the basis for the pressure setting of the pressure-relieving devices protecting the vessel which is known as the maximum allowable relief valve setting or MARVS.

How do you size a temperature and pressure relief valve?

The pressure on the valve's tag must be compared to the pressure on the vessel's nameplate. The pressure rating of the relief valve must be equal to or less than the MAWP of the vessel. Most water heaters have an MAWP of 150 psi; however, some are rated higher, typically 160 psi.

How does a safety relief valve work?

Pressure relief valves (safety relief valves) are designed to open at a preset pressure and discharge fluid until pressure drops to acceptable levels. When the force of the steam pressure acting on the valve exceeded the force of the weight acting through the lever arm the valve opened.

What is meant by venting the relief valve?

Vent and Relief valves. A vent and relief valve or over-pressure valve keeps pressure in a system or vessel until a predetermined pressure is reached and then the valve opens to vent.

How do you adjust a relief valve?

With a slotted screwdriver, turn the screw in the center of the knob clockwise, until flow can be heard escaping from the internal valve. Slowly turn the screw counterclockwise until the flow from the relief valve stops. Turn the screw an additional 1/8 to 1/4 turn counter-clockwise.

What type of valve is a pressure relief valve?

Pressure relief valve (PRV) or Pressure Release valve (PRV) or pressure safety valve (PSV): The difference is that PSVs have a manual lever to activate the valve in case of emergency. Most PRVs are spring operated. At lower pressures some use a diaphragm in place of a spring.

How many types of safety valves are there?

There are two main types of safety valves. Spring loaded safety valves and pilot operated safety valves.

Which is called the safety valve of nature?

Volcanoes are known as the safety valves of nature because they periodically release the pressure that builds up because of tectonic activity in the Earth's crust and even lower layers. When pressure builds up, eruptions occur.

What is a PSV valve?

A Pressure Safety Valve (PSV) is a type of valve used to quickly release gasses from equipment in order to avoid overpressurization and potential process safety incidents. PSVs are activated automatically when pressure exceeds prescribed pressure limits in order to return equipment pressure to a safe operating level.

Which type of safety valve is used in high pressure and low pressure boilers?

Pilot - operated relief valves are used in the high pressure and low pressure boiler. Pressure relieve valves are used in high and low pressure boilers. They ensure that the pressure is maintained to the optimum by releasing the excess pressure.

What is blowdown in safety valve?

Blowdown is the difference between set pressure and reseating pressure of a safety valve expressed as a percentage of set pressure. Typical blowdown values as defined in codes and standards are -7% and -10%, ranging from -4% to -20% depending on the code and service (steam, gas or liquid).
