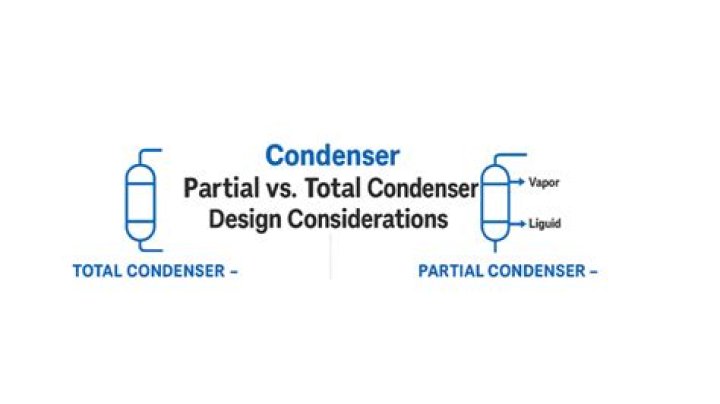

In a partial condenser, the vapor is only partially liquefied. The liquid produced is returned to the column as liquid, and a vapor product stream is removed. In a total condenser, all of the vapor leaving the top of the column is condensed..
Also, why condenser is used in distillation process?
Condensers are used in distillation to cool the hot vapors, condensing them into liquid for separate collection. For fractional distillation, an air or Vigreux condenser is usually used to slow the rate at which the hot vapors rise, giving a better separation between the different components in the distillate.
Likewise, what if there is no reflux in distillation column? Without reflux, your top/rectification section of your column is just a piece of pipe. What happens is that the LIQUID that is refluxed is rich in the desired top product. It is contacted with the VAPOUR that is rising, which contains some of (for binary distillation) both of the top and bottoms products.
Also, what is a partial reboiler?
The liquid outlet from bottom of a distillation column is close to its initial boiling point, due to near equilibrium conditions on each of the distillation column trays. This type of reboiler is known as partial reboiler, as the liquid is only partially vaporized. Heavy bottoms outlet is close to its boiling point.
What is full reflux?
Reflux is a technique involving the condensation of vapors and the return of this condensate to the system from which it originated. It is used in industrial and laboratory distillations. It is also used in chemistry to supply energy to reactions over a long period of time.
Related Question Answers
What are the three functions of a condenser?
Condensers. A condenser's function is to allow high pressure and temperature refrigerant vapor to condense and eject heat. There are three main types: air-cooled, evaporative, and water-cooled condensers.What is purpose of condenser?
In systems involving heat transfer, a condenser is a device or unit used to condense a gaseous substance into a liquid state through cooling. In so doing, the latent heat is released by the substance and transferred to the surrounding environment.How do you make a condenser?
Step 1 – Unwind the length of 1/4 copper tubing you'll be using for the condenser coil. Seal up the one end with tape. Step 3 – Fill the funnel with salt and turn the sander on (make sure you remove the sandpaper from the sander first) use it to vibrate the 1/4 tubing. The salt should flow nicely into the tubing now.What is a dimroth condenser used for?
BTW: The Dimroth is the condenser of choice for soxlhet extractions, since the drip tip on the terminal loop of the spiral allows a constant dripping on longitudinal axis and straight to the extraction thimble.How does the condenser work in simple distillation?
In simple distillation the condenser turns steam back into water. It does this by cooling steam to below 100°C when it becomes liquid water again. Within the tube steam will condense into water droplets on the interior surfaces of glass. These droplets form on the surfaces because they are COOLER than 100°C.How does a condenser work?
Inside the condenser, the refrigerant vapor is compressed and forced through a heat exchange coil, condensing it into a liquid and rejecting the heat previously absorbed from the cool indoor area. The condenser's heat exchanger is generally cooled by a fan blowing outside air through it.Why does water flow against gravity in a condenser?
Doing it this way always ensures that your condenser will be full of cooling water. If you set it up the opposite way, and if for some reason the rate of water flow into the condenser decreased and became slower than the rate of water exiting the condenser, then the condenser would not remain filled with water.Why is a condenser used in reflux?
The coolant circulates both in the outer jacket as well as the central tube. The vapour condenses on the inner tubes and flows down into the reflux flask. The condenser is suitable for condensation of vapours over a broad range of boiling points including low boiling volatile liquids.What is distillate rate?
The optimal distillate-rate policy, D(t), is defined as. that. policy which yields the maximum of distillate product of a. specified product purity, y*, in a specified duration, or time, of. operation, T.Where in a distillation column is the temperature the lowest?
Where in a distillation column is the temperature the lowest? At the bottom of the column, because the heat rises to the top due to natural convection of the hot gas flow.On what principle is separation achieved in a distillation column?
Principle of Separation Distillation takes advantage of the difference in relative volatility of the feed mixture components. Generally for two or more compounds at a given pressure and temperature there will be a difference in the vapour and liquid compositions at equilibrium due to component partial pressure.What is a thermosyphon reboiler?
It is an shell & tube heat exchanger type having shell with vertical tube bundle. ? Vertical thermosyphon reboilers are usually attached directly to distillation columns. ? 70% are vertical type in petrochemical industries and in chemical while nearly 100% are vertical type in chemical industries.How many stages does a distillation column have?
Actual numbet of stages=20. No, because there are no trays that perform separation to 100% efficiency. Mixing between vapor and liquid on a tray is never complete, and tray inefficiency results.What is reflux ratio in distillation column?
The Reflux ratio is the ratio between the boil up rate and the take-off rate. Or in other words, it is the ratio between the amount of reflux that goes back down the distillation column and the amount of reflux that is collected in the receiver (distillate).What happens when you increase reflux ratio?
It appears that keeping the number of stages fixed, changing the reflux ratio will have drastic effects. As the reflux ratio will be increased, purity of overhead product will increase slowly upto a limit. Further more increase in reflux ratio will cause more liquid to flow downwards in column.What is the purpose of refluxing?
A reflux setup (Figure 1.58) allows for liquid to boil and condense, with the condensed liquid returning to the original flask. The main purpose of refluxing a solution is to heat a solution in a controlled manner at a constant temperature.What causes pressure drop in distillation column?
In distillation column 2 types of pressure drop will occour, dry tray pressure drop and hydrolic pressure drop. Dry tray perssure drop is due to the flow of vapour through the holes in tray ,it is just like pressure drop occour accross an orifice plate. Hydrolic pressure drop is due to the liquid hold up in the tray.What can go wrong with distillation?
Typical problems: Distillation too fast. The components require time to separate. We need many evaporation-condensation cycles for good separation, and pseudo-equilibrium between vapor and liquid throughout the system.Why are anti bumping granules used in reflux?
A boiling chip, boiling stone, porous bits or anti-bumping granule is a tiny, unevenly shaped piece of substance added to liquids to make them boil more calmly. Boiling chips provide nucleation sites so the liquid boils smoothly without becoming superheated or bumping.
