What is the command line used for within AutoCAD?

The basic function of the Command line is the ability to type keyboard commands. To type a command, place your cursor in the Command line and type that command. For example, if you want to draw a line, begin typing the word "Line" in the Command line.

.

Thereof, how do I get the command line in AutoCAD?

Open or Close the Command Window

1. Click View tab Palettes panel Command Line. Find.
2. Press Ctrl+9.
3. At the Command prompt, enter COMMANDLINE or COMMANDLINEHIDE.

One may also ask, what is the command of AutoCAD? Basic actions

SHORTCUT/ COMMAND	DESCRIPTION
CO/ COPY	Copy objects or text
DI/ DISTANCE	Find the distance between two point in a drawing
I/ INSERT	Insert (existing block or drawing as a block)
LIST	Access the properties of the different objects within a drawing

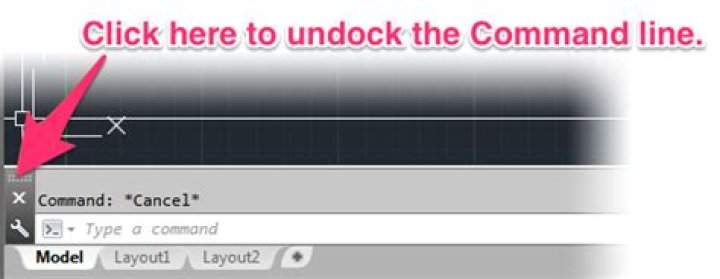

Also asked, how do I dock the command line in AutoCAD?

A docked command window is the same width as the application window. It is displayed in a fixed location above or below the drawing area. Drag the command window to dock or undock. The command window is docked by default for certain operating systems and Windows themes.

What is the basic command of AutoCAD?

There are numerous command in autocad but the basic one are:

• L+enter: for line.
• C+enter: for circle.
• Arc+enter: for arc.
• El+enter: for ellipse.
• Pol+enter: for polyline.
• Fill+enter: to blank the filled portion of donut command.
• Co+enter: to copy the object.
• Mi+ enter: to make the mirror image.

Related Question Answers

What are the commands in AutoCAD?

Basic AutoCAD Commands

• L. It can be used for making simple lines in the drawing.
• C. It is the command used for making a circle in AutoCAD.
• PL. This command can be used to make a Polyline in your drawing.
• REC. This command will make a rectangle in AutoCAD.
• POL.
• ARC.
• ELLIPSE.
• REG.

How do I resize a command line in AutoCAD?

Resizing the Command Window You can resize the command window vertically by dragging the splitter bar, which is located on the top or the bottom edge of the window. Resize the window horizontally by dragging the right or left edge.

How many commands are there in AutoCAD?

150 types of AutoCAD commands are there.

How do I get the command line back in AutoCAD?

If your command line is off hold down the "Ctrl" button and while stilling holding this down select the "9" key on the Keyboard this should turn the Command Line back on. 2.) This will bring up a message that asks if you are sure you want to turn the command Line off Select Yes and the Command Line is turned off.

How do I get the menu bar in AutoCAD?

To Display the Menu Bar

1. At the top-left of the application window, on the right end of the Quick Access toolbar, click the drop-down menu Show Menu Bar.
2. At the Command prompt, enter MENUBAR. Enter 1 to display the menu bar.

How do you set limits in AutoCAD?

To Set the Display Limits of the Grid

1. At the Command prompt, enter limits.
2. Enter the coordinates for a point at the lower-left corner of the grid limits.
3. Enter the coordinates for a point at the upper-right corner of the grid limits.
4. At the Command prompt, enter griddisplay, and enter a value of 0.

How do I show the command bar in AutoCAD?

To Display a Toolbar

1. To display the menu, click Quick Access Toolbar drop-down > Show Menu Bar.
2. To display a toolbar, click Tools menu > Toolbars and select the required toolbar.

How do I dock the command line in AutoCAD 2020?

A docked command window is the same width as the application window. It is displayed in a fixed location above or below the drawing area. Drag the command window to dock or undock. The command window is docked by default for certain operating systems and Windows themes.

How do I enable command line in AutoCAD?

Select Enable Pointer Input. Select Show command prompting and command input near the crosshairs. Click OK.

Do any of the following:

1. Use the shortcut CTRL+9 (CMD+3 in AutoCAD for Mac) to toggle on the command line.
2. Type in the COMMANDLINE command.
3. Change command line settings via the User Interface (CUI command):

How do I make the command line visible in AutoCAD?

To open the Command line, type CommandLine anywhere in your CAD interface. Then press Enter. The Command line will reappear. You can also open the Command line by holding down the CTRL + 9 keys.

How do I change the command line in AutoCAD?

Solution:

1. Go to the CUI editor by typing CUI command.
2. Go to Customize tab and select your (current) workspace.
3. On the right side expand Palettes and click on Command Line under there.
4. Move to the Properties below and set Orientation to something like Bottom.
5. Click Apply and close dialog.

How do I get my command line back in AutoCAD?

Most of the time it is as simple as turning the Command Line back on. 1.) If your command line is off hold down the "Ctrl" button and while stilling holding this down select the "9" key on the Keyboard this should turn the Command Line back on.

How do I show the hidden command window in AutoCAD?

Do one of the following to display the stand-alone text window: If the command window is docked or closed: Press F2. If the command window is not docked or closed: Press Ctrl+F2. Click View tab Palettes panel Text Window.

How do I get my command bar back in AutoCAD?

1.) If your command line is off hold down the "Ctrl" button and while stilling holding this down select the "9" key on the Keyboard this should turn the Command Line back on. 2.) This will bring up a message that asks if you are sure you want to turn the command Line off Select Yes and the Command Line is turned off.

What is the first version of AutoCAD?

The first version by Autodesk was demonstrated at the 1982 Comdex and released that December. AutoCAD supported CP/M-80 computers. As Autodesk's flagship product, by March 1986 AutoCAD had become the most ubiquitous CAD program worldwide. The 2020 release marked the 34th major release of AutoCAD for Windows.

What is draw command?

The drawing commands are strings of text which are concatenated to create a larger string of graphical instructions, which is then passed as a parameter to the dynamic texture drawing functions.

What is meant by command?

A command is an instruction given by a user telling a computer to do something, such a run a single program or a group of linked programs. Commands are generally issued by typing them in at the command line (i.e., the all-text display mode) and then pressing the ENTER key, which passes them to the shell.

What is the command for dimension in AutoCAD?

Creates multiple dimensions and types of dimensions with a single command. You can select objects or points on objects to dimension, and then click to place the dimension line. When you hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use.

What are the 3d commands in AutoCAD?

Commands

• 3DMOVE (Command)
• 3DORBIT (Command)
• 3DROTATE (Command)
• 3DSCALE (Command)
• BOX (Command)
• CONE (Command)
• CONVTOMESH (Command)
• CONVTONURBS (Command)
