Side lobes and grating lobes artifacts in ultrasound imaging. Side lobes and grating lobes are both unwanted parts of the ultrasound beam emitted off axis that produce image artifacts due to error in positioning the returning echo..
Keeping this in view, what is side lobe artifact?

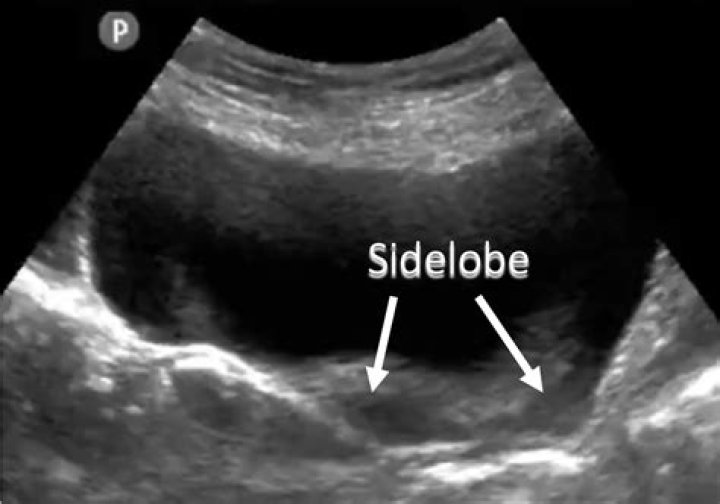

Side lobe artifacts occur where side lobes reflect sound from strong reflector that is outside of the central beam, and where the echoes are displayed as if they originated from within the central beam. These radial beams are called side lobe beams.
Also Know, what causes side lobes? In antenna engineering, side lobes or sidelobes are the lobes (local maxima) of the far field radiation pattern of an antenna or other radiation source, that are not the main lobe. In transmitting antennas, excessive side lobe radiation wastes energy and may cause interference to other equipment.
In this regard, what is side lobe level?
What is Sidelobe Level (SLL) 1. The ratio, usually expressed in decibels (dB), of the amplitude at the peak of the main lobe to the amplitude at the peak of a side lobe. Learn more in: Optimization of Antenna Arrays and Microwave Filters Using Differential Evolution Algorithms.
What is mirror image in ultrasound?
Mirror image artefacts. Mirror image artefact is one of the beam path artefacts. These occur when an ultrasound beam is not reflected directly back to the transducer after hitting a reflective surface, but rather takes an indirect return journey.
Related Question Answers
What causes twinkle artifact?
The narrow-band artifacts are likely generated by intrinsic machine noise caused by what is referred to as phase (or clock) jitter. Phase jitter is caused by the slight random time fluctuations in the digital clock that synchronizes the firings of the ultrasound pulse transmissions.What causes reverberation in ultrasound?
A: Reverberation artifact occurs when an ultrasound pulse gets "trapped" between two strong parallel reflectors. The wave reflects back and forth between the reflectors ("reverberates"). The waves that return to the transducer are interpreted as deeper structures since they arrive to the transducer at a later time.What are grating lobes?
Grating lobes are the maxima of the main beam, as predicted by the pattern multiplication theorem. When the array spacing is less than or equal to λ / 2 , only the main lobe exists in the visible space, with no other grating lobes. Grating lobes appear when the array spacing is greater than λ / 2 .What is ultrasound artifact?
* *An ultrasound artifact is a structure in an image which does not directly similiar with actual tissue being scanned. This artifact will be seen at the skin-transducer interface and behind bowel gas.What is reverberation in ultrasound?
Reverberation Artefacts. An ultrasound machine assumes a single pulse of ultrasound enters the tissues, is reflected off a structure, and returns directly to the transducer for interpretation. This reverberation causes a repetitive artefact on the ultrasound image.What is ring down artifact in ultrasound?
The ring-down artifact. Avruch L, Cooperberg PL. "Ring-down" is an ultrasound artifact that appears as a solid streak or a series of parallel bands radiating away from abdominal gas collections.What causes mirror image artifact?
Mirror artifacts are produced by the reflection of ultrasound waves after they propagate through a structure and encounter a strong and smooth interface capable of acting as a mirror.What is range ambiguity in ultrasound?
Pulsed Doppler ultrasound (PW) can be used to determine the location of frequency shifts within the cardiac chambers or great vessels. However, it is possible to record similar frequency shifts at sample volume locations distal to their original site; this is referred to as range ambiguity (RA).What is side lobe suppression?
Sidelobe Suppression. Sidelobe suppression has been implemented in many radar systems, including ATCRBS, to solve a common problem. This problem occurs due to signal leakage in the directional antenna. If a plane within the interrogation signal coverage receives the signal, P1 is significantly stronger than P2.What is main lobe of antenna?
Main lobe is the lobe of the radiation pattern of a directional antenna which contains the direction of maximum radiation. This is the lobe that exhibits the greatest field strength. It is also called as main beam.What is grating lobes in antenna?
Grating Lobes. Grating lobes is the term for secondary main lobes (very strong side lobes) in the antenna diagram. They have approximately the size of the main lobe and are distributed grid-like in the diagram. Grating lobes sometimes occur with phased array antennas (and also with ultrasound probes used in sonography)What is the radiation pattern of an antenna?
A radiation pattern defines the variation of the power radiated by an antenna as a function of the direction away from the antenna. This power variation as a function of the arrival angle is observed in the antenna's far field.Is abdominal ultrasound a mirror image?
If it is an abdominal ultrasound THEN you mirror it. If it's transvaginal you do not. There are several posts of TV ultrasounds with baby on the lower right side and so because you aren't mirroring it that means boy. If it's an abdominal you do mirror it and that would be a girl.What is the Ramzi test?
The Ramzi theory (also called Ramzi's method) claims that you can predict a baby's sex as early as 6 weeks into pregnancy by using images from an ultrasound.Is an ultrasound mirrored?
Sometimes, ultrasound scans are actually a mirrored image. This depends on a plethora of different reasons, and it isn't as black and white as many believe it is. The common theory is that transvaginal ultrasound scans are mirrored, and abdominal ultrasound scans aren't.What is acoustic enhancement in ultrasound?
Acoustic enhancement. Acoustic enhancement, also called posterior enhancement or enhanced through transmission, refers to the increased echoes deep to structures that transmit sound exceptionally well. This is characteristic of fluid filled structures such as cysts, the urinary bladder and the gallbladder.
