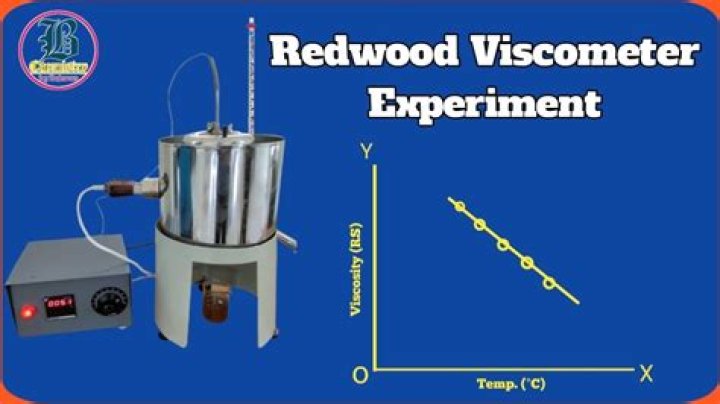

The redwood viscometer consist of vertical cylindrical oil cup with an orifice in the centre of its base . The orifice is 1.70mm in diameter and 12mm in length , This viscometer is used to determine the kinematic viscosity of the oil. From the kinematic viscosity the dynamic viscosity is determined ..
Herein, what is Redwood viscosity?
Viscosity is a measure of fuel resistance to flow. When expressed in seconds Redwood at 100 degrees Fahrenheit, it is the time it takes for a fixed amount of fuel to pass through an orifice of fixed size at 100 degrees Fahrenheit.
Subsequently, question is, what is Redwood number? Definition of Redwood number. Viscosity, defined as rate of flow of oil from a Redwood viscometer.
Considering this, which oil is used in Redwood viscometer?
A redwood viscometer is used to measure the flow of eight different liquids including engine oil, sunflower oil, soybean oil, glycerol, thermic fluid (Hy- the
What is the difference between Redwood viscometer No 1 and 2?
2. The jet orifice of redwood viscometer 1 has an internal diameter of 1.62mm and length of 10 mm. The jet orifice of redwood viscometer 2 has an internal diameter of 3.8 mm and length of 15mm. It is used to determine the viscosity of less viscous oils having flow (efflux) time less than 2000 second.
Related Question Answers
What is the difference between Redwood and Saybolt viscometer?
A Redwood viscometer works on the same principle of Saybolt viscometer. Here, the stopper is replaced with an orifice and Redwood seconds is defined for collection of 50ml of liquid to flow out of orifice. In general, both the viscometers are used to compare the viscosities of different liquid.What is the unit of viscosity?
The most common unit of viscosity is the dyne second per square centimeter [dyne s/cm2], which is given the name poise [P] after the French physiologist Jean Poiseuille (1799–1869). Ten poise equal one pascal second [Pa s] making the centipoise [cP] and millipascal second [mPa s] identical.What is the unit for viscosity?
Even in relation to high-viscosity fluids, this unit is most usually encountered as the centipoise (cP), which is 0.01 poise. Many everyday fluids have viscosities between 0.5 and 1000 cP (see table). Pascal-second (symbol: Pa. s) This is the SI unit of viscosity, equivalent to newton-second per square metre (N.What are the different types of viscometer?
Here are the six types we'll cover: - Orifice viscometers.
- Capillary viscometers.
- Falling piston viscometers.
- Rotational viscometers.
- Falling ball viscometers.
- Vibrational viscometers.
Who invented viscometer?
Leo Ubbelohde
What is oil viscosity index?
The viscosity index (VI) is an arbitrary, unitless measure of the change of viscosity with temperature, mostly used to characterize the viscosity-temperature behavior of lubricating oils. The lower the VI, the more the viscosity is affected by changes in temperature.What do you mean by viscosity?
If I fill the same cup with water, for example, the cup will drain much more quickly. Viscosity is a measure of a fluid's resistance to flow. It describes the internal friction of a moving fluid. A fluidwith large viscosity resists motion because its molecular makeup gives it a lot of internal friction.How does a Saybolt viscometer work?
A device used to measure the viscosity of a fluid. The saybolt viscometer controls the heat of the fluid and the viscosity is the time is takes the fluid to fill a 60cc container. The device used for measurement of viscosity is known as viscometer .What is a viscometer used for?
A viscometer (also called viscosimeter) is an instrument used to measure the viscosity of a fluid. For liquids with viscosities which vary with flow conditions, an instrument called a rheometer is used. Viscometers only measure under one flow condition.Why is a stirring done in a viscometer?
Therefore, by rapidly oscillating the inner wall, the liquid in the viscometer can be stirred, that is, sheared at a high rate. The torsional rigidity of the suspension is sufficiently low that the rotor practically moves with the liquid.Why is absolute viscosity termed as dynamic viscosity?
Absolute viscosity - coefficient of absolute viscosity - is a measure of internal resistance. Dynamic (absolute) viscosity is the tangential force per unit area required to move one horizontal plane with respect to an other plane - at an unit velocity - when maintaining an unit distance apart in the fluid.How do you find kinematic viscosity?
Kinematic viscosity can be obtained by dividing the dynamic viscosity of a fluid by its density. The Stokes(St) is the cgs physical unit for kinematic viscosity, named after George Gabriel Stokes, where 1 St = 10-4 m2/s. It is also expressed in terms of centistokes (cSt or ctsk).What is Saybolt number?
The Saybolt Colour scale is used for grading light coloured petroleum products including aviation fuels, kerosine, naphthas, white mineral oils, hydrocarbon solvents and petroleum waxes. The faintest coloration is Saybolt-colour number +30, the strongest evaluable Saybolt coloration value is -16.How accurate is a viscometer?
You can check the accuracy of your Viscometer by performing a calibration check. Accuracy for the calibration check is: Instrument Accuracy is 1% of Full Scale range in use (FSR) and is added to Standard Fluid Accuracy which is 1% fluid value in cP.
