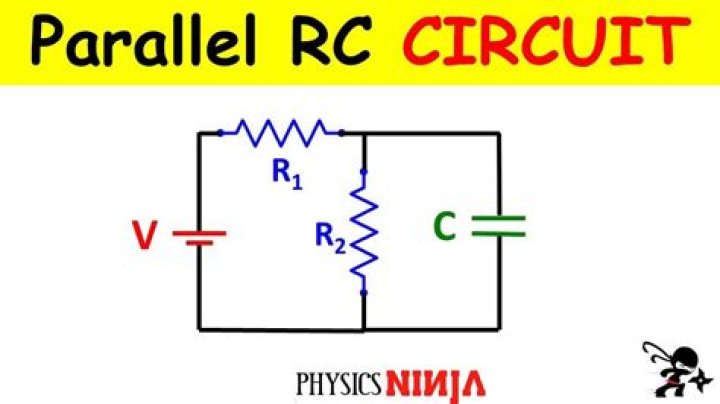

What is RC parallel circuit?

The simplest RC circuit is a capacitor and a resistor in parallel. When a circuit consists of only a charged capacitor and a resistor, the capacitor will discharge its stored energy through the resistor.

.

Just so, what is RC series circuit?

A circuit that contains pure resistance R ohms connected in series with a pure capacitor of capacitance C farads is known as RC Series Circuit. A sinusoidal voltage is applied to and current I flows through the resistance (R) and the capacitance (C) of the circuit.The RC Series circuit is shown in the figure below.

Also Know, what are RC circuits used for? The RC circuit is used in camera flashes, pacemaker, timing circuit etc. The RC signal filters the signals by blocking some frequencies and allowing others to pass through it. It is also called first-order RC circuit and is used to filter the signals bypassing some frequencies and blocking others.

Also to know is, what happen if resistor and capacitor are connected in parallel?

Ohm's Law for AC circuits: E = IZ ; I = E/Z ; Z = E/I. When resistors and capacitors are mixed together in parallel circuits (just as in series circuits), the total impedance will have a phase angle somewhere between 0° and -90°. The circuit current will have a phase angle somewhere between 0° and +90°.

Do capacitors have impedance?

Capacitive reactance A capacitor has a purely reactive impedance that is inversely proportional to the signal frequency. A capacitor consists of two conductors separated by an insulator, also known as a dielectric. The minus sign indicates that the imaginary part of the impedance is negative.

Related Question Answers

How do you calculate parallel impedance?

There are two strategies for calculating the total current and total impedance. First, we could calculate total impedance from all the individual impedances in parallel (Z_Total = 1/(1/Z_R + 1/Z_L + 1/Z_C), and then calculate total current by dividing source voltage by total impedance (I=E/Z).

What does a capacitor do?

A capacitor (originally known as a condenser) is a passive two-terminal electrical component used to store energy electrostatically in an electric field. The forms of practical capacitors vary widely, but all contain at least two electrical conductors (plates) separated by a dielectric (i.e., insulator).

How do you find the impedance of a parallel RC circuit?

To calculate, enter the capacitance, the resistance and the frequency, select the units of measurements and the result for RC impedance will be shown in ohms and for the phase difference in degrees. The impedance is measured in ohms, just like the resistance.

What is the impedance of a capacitor?

The impedance of an ideal capacitor is equal in magnitude to its reactance, but these two quantities are not identical. Reactance is expressed as an ordinary number with the unit ohms, whereas the impedance of a capacitor is the reactance multiplied by -j, i.e., Z = -jX.

Why are RC circuits used?

The RC circuit has thousands of uses and is a very important circuit to study. Not only can it be used to time circuits, it can also be used to filter out unwanted frequencies in a circuit and used in power supplies, like the one for your computer, to help turn ac voltage to dc voltage.

What is the unit of RC?

The units of RC are seconds, units of time. This quantity is known as the time constant: τ=RC.

How does RC filter work?

A Low pass RC filter, again, is a filter circuit composed of a resistor and capacitor which passes through low-frequency signals, while blocking high frequency signals. As a capacitor is a reactive device, it offers differing resistance to signals of different frequencies entering through it.

What is the current?

Current is the flow of electrical charge carriers like electrons. Current flows from negative to positive points. One ampere of current is defined as one coulomb of electrical charge moving past a unique point in a second. Electric current is widely used in household and industrial appliances.

What are DC circuits?

DC Circuit. Definition: The closed path in which the direct current flows is called the DC circuit. The current flows in only one direction and it is mostly used in low voltage applications. The resistor is the main component of the DC circuit.

What is RC in a circuit?

A resistor–capacitor circuit (RC circuit), or RC filter or RC network, is an electric circuit composed of resistors and capacitors driven by a voltage or current source. A first order RC circuit is composed of one resistor and one capacitor and is the simplest type of RC circuit.

How do RC circuits work?

An RC circuit is a circuit with both a resistor (R) and a capacitor (C). A capacitor can store energy and a resistor placed in series with it will control the rate at which it charges or discharges. This produces a characteristic time dependence that turns out to be exponential.

Why time constant is RC?

The RC time constant is, as its name implies, the product of resistance and capacitance, which has units of time. When a fully discharged capacitor is charged by an ideal voltage source through a resistor, the RC time constant is the time it will take to charge up to of its final charge.

What is the total capacitance for two capacitors connected in series?

When capacitors are connected in series, the total capacitance is less than any one of the series capacitors' individual capacitances. If two or more capacitors are connected in series, the overall effect is that of a single (equivalent) capacitor having the sum total of the plate spacings of the individual capacitors.

How do you add resistors in parallel?

The sum of the currents through each path is equal to the total current that flows from the source. You can find total resistance in a Parallel circuit with the following formula: 1/Rt = 1/R1 + 1/R2 + 1/R3 + If one of the parallel paths is broken, current will continue to flow in all the other paths.

How do you discharge a capacitor?

How to Discharge Capacitors in a Switched-Mode Power Supply

1. Do not short the terminals of a filter capacitor with a screwdriver.
2. Screw a 100 watt lightbulb into a socket with exposed leads.
3. Attach one lead to each terminal of the capacitor, the bulb should illuminate.
4. When the bulb turns off, the capacitor is empty.

How are capacitors used in timing circuits?

Capacitors. Capacitors are components that are used to store an electrical charge and are used in timer circuits. A capacitor may be used with a resistor to produce a timer. Sometimes capacitors are used to smooth a current in a circuit as they can prevent false triggering of other components such as relays.

What does a capacitor do in a DC circuit?

When used in a direct current or DC circuit, a capacitor charges up to its supply voltage but blocks the flow of current through it because the dielectric of a capacitor is non-conductive and basically an insulator.

What do u mean by inductor?

An inductor, also called a coil, choke, or reactor, is a passive two-terminal electrical component that stores energy in a magnetic field when electric current flows through it. An inductor typically consists of an insulated wire wound into a coil around a core.

How do resistors and capacitors work together?

When capacitors and resistors are connected together the resistor resists the flow of current that can charge or discharge the capacitor. The larger the resistor , the slower the charge/discharge rate. The larger the capacitor , the slower the charge/discharge rate. ( VR=V−Vcap ) so the current through it drops.
