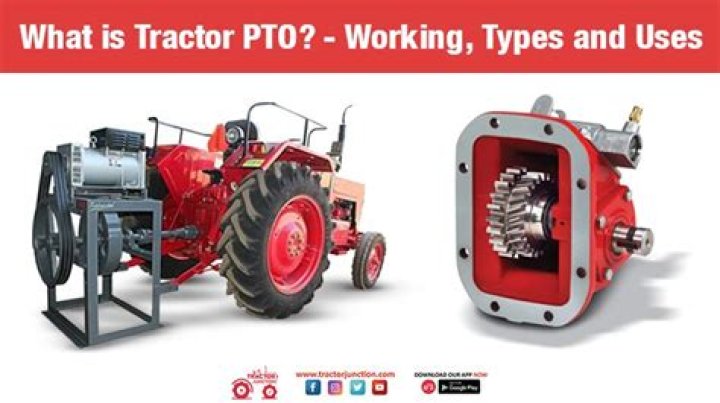

The Power Take-Off, most commonly referred to by its acronym, PTO, is a common form of mechanical power delivery in the mobile machine market. The PTO is a method of transferring high power and torque from the engine (usually via the transmission) of trucks and tractors..
Then, how does a tractor PTO work?
It features a splined output shaft to which can be attached drive shafts to power implements. A “live” PTO transfers the power directly from the engine to the implement regardless of whether a tractor is moving or at rest. Hydraulic systems go back even further.
One may also ask, what does live PTO mean on a tractor? Power Take Off
Secondly, do all tractors have PTO?
Most tractors have a Power Take Off shaft, which is what connects to your implements to power them. Because the shaft draws power from the engine, the PTO horsepower indicates how much power is available to run various implements. High PTO is also critical when you start talking about terrain.
How many types of PTO are there?
two
Related Question Answers
What's the difference between 540 and 1000 PTO?
When a PTO shaft is turning 540, the ratio must be adjusted (geared up or down) to meet the needs of the implement, which is usually higher RPM's than that. Since 1000 RPM's is almost double that of 540, there is less "Gearing Up" designed in the implement to do the job required.What is a mid PTO used for on a tractor?
There is also a mid-mount PTO, used mostly to operate mowers. A mid-mount PTO is center mounted below the transmission. A mid-PTO differs from the rear PTO in rotational speed and type of shaft used. A mid-PTO generally operates at 2,000 rpm at rated engine speed.What is the full form of PTO?
Please Turn Over
What is 1000 rpm PTO used for?
Someone correct me if I am wrong, but I think 1000 rpm equipment is used to reduce the torque that is transmitted to the implement from the tractor. They are generally used on equipment that is intended to be used on high horsepower tractors to keep from tearing up gearboxes and other PTO driven parts.Are PTO shafts universal?
The PTO shaft plays the crucial role of transferring power from your tractor to an attached implement. The parts of a PTO shaft consist of the internal and external PTO yoke, universal joint, safety chain and safety shield.How big a tractor do I need?
You have to consider the size of the lawn to determine the size of tractor you'll need. Here's a quick guide: 1/2 to 1 Acre of Lawn: You need a riding lawn mower with at least 14 horsepower engine and up to 42 inches cutting width. 1 to 2 Acres: Choose an engine with 14 to 16 horsepower and 42 inches or 46 inches deck.What does a 540 PTO mean?
By engaging 540E mode, the operator changes the gear reduction ratio keeping the PTO spinning at 540 rpm but lessening the engine rpm. When the operator shifts the PTO into the standard 540 mode, a different gear reduction ratio is used to operate the PTO at 540 rpm at the standard PTO rated speed of the engine.How does a PTO engage?
The PTO is engaged/disengaged using the main transmission clutch and a remote control mechanism which operates on the PTO itself. Typically an air valve is used to engage the PTO, but a mechanical linkage, electric or hydraulic mechanism are also options.How many acres can a tractor plow in a day?
Each one can cover roughly 60 acres or about 24 hectares per day without running a second shift. In fact in much of the US, plowing is a thing of the past.How fast does a PTO spin?
540 rpm
How do I know if my PTO clutch is bad?
Activate the PTO clutch lever and look for the bulb to illuminate from the test light. No illumination means the engagement switch has failed at the lever-switch position. If the battery voltage reads correctly and the in-line fuse checks out, the lever switch will be the problem.How do PTO hydraulic pumps work?
PTO Shaft. The power take-off is accessed most often via an air valve or through a mechanical, electrical or a hydraulic pump to transfer mechanical energy through a fluid system on the vehicle. A hydraulic motor converts the fluid force back into rotary or mechanical force.What is Ground speed PTO used for?
Ground speed pto was intended to power pto driven hay rakes, as well as ground driven manure spreaders. It was a standard feature on Massey Ferguson tractors for years. The concept never really hit the big time.What is dual PTO in tractor?
If a PTO can run on both 540 rpm and 1000 rpm speeds then it is known as Dual PTO. The following types of PTO are available in India. Economy PTO (EPTO) This feature allows the operator to run the PTO at 540 rpm, but at a lower engine rpm than the standard, PTO rated speed.Does Ford 8n tractor have live PTO?
One disadvantage of the Ford N's was, they are not Live pto and Live hydraulic. When you push the clutch in, they stop. The mower stops mowing and if it was raised, it lowers to the ground.What is a live continuous running PTO?
Posts: 819. Re: Confused about Live PTO Types. Continuous running pto means tractor can be stopped to shift gears by depressing foot pedal 1/2 way down but pto will continue to operate until pedal is fully depressed.Which is better 8n or 9n?
The engines on the 8n tractors are generally a bit more powerful than those on 9n tractors. Aside from the engine, there are also several changes in the design of the 8n tractors. For starts, the 8n tractors have a four speed transmission while the order 9n tractors had a three speed transmission.Does 9n have live PTO?
Re: Ford 9n tractor-bad idea? It does not have a live action PTO, and that is a big detriment. Great machines, easy to fix, parts generally available, run forever, cheap and readily found.What is the PTO on a truck?
A power take-off or power takeoff (PTO) is any of several methods for taking power from a power source, such as a running engine, and transmitting it to an application such as an attached implement or separate machines.
