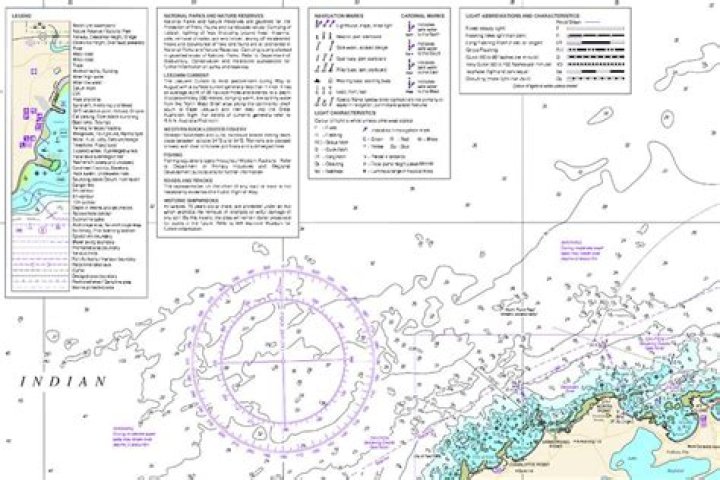

A nautical chart is one of the most fundamental tools available to the mariner. It is a map that depicts the configuration of the shoreline and seafloor. It provides water depths, locations of dangers to navigation, locations and characteristics of aids to navigation, anchorages, and other features..
Subsequently, one may also ask, what do the numbers mean on a nautical chart?
Numbers on a nautical chart are depth measurements. Water depths are measured by soundings usually acquired by hydrographic surveys. The depths may be in either feet or fathoms (the chart will indicate which). A fathom is a nautical unit of measurement and is equal to six feet .
Likewise, who invented the nautical chart? The crown ordered a comprehensive land and sea survey to fill these voids. Thus Jens Sørensen was named Denmark's Director of Nautical Charts in 1689.
Keeping this in consideration, how big is a nautical chart?
A: The full-size OceanGrafix NOAA chart is a single-sided product available in size from approximately 3' to 5' in length and are either 36" or 42" wide, depending on the coverage needed for each specific geographic area.
Are depths on charts at low tide?
The soundings printed on the chart normally represent the depth at mean lower low water (MLLW), so the actual depth is usually more than the charted depth. However, when the tide table shows a negative low-tide entry, actual depths will be less than the chart indicates.
Related Question Answers
What is depth contour?
depth contour. A line connecting points of equal depth below the hydrographic datum. Also called bathymetric contour or depth curve. Dictionary of Military and Associated Terms.What is chart scale?
Chart Scale Information The scale of a chart refers to a measurement of area, not distance. A chart covering a relatively large area is called a small-scale chart and a chart covering a relatively small area is called a large-scale chart. Scales may vary from 1: 1,200 for plans to 1: 14,000,000 for world charts.What is charted depth?
Charted depths or soundings are indicated on the charts by contour depths (areas with different colour denoting a certain depth level), contour lines and spot depths. These soundings are reduced to the CD, usually Lowest Astronomical Tide (LAT) in tidal waters.How do you update nautical charts?
There are two ways of going about this. If you have your computer switched on, you can go to UKHO and select 'view update list by chart number'. Insert the chart number into the box provided and it will give you a list of all of the corrections applied to that chart since the release of its latest edition.What is foul ground?
an obstruction or a foul ground. S-4 provides a definition of a foul ground (B-422.8): “Foul Ground is an area over which it is. safe to navigate but which should be avoided for anchoring, taking the ground or ground. fishing (for example: remains of wreck; cleared platform).” This definition is in line with the.What is water depth?
Water depth means the depth as measured from the water level to the bottom of a public swimming pool. Sample 2. Water depth means the depth of the water between the surface and the seafloor as measured at mean lower low water.How is water depth measured?
Depth finder. Depth finder, also called echo sounder, device used on ships to determine the depth of water by measuring the time it takes a sound (sonic pulse) produced just below the water surface to return, or echo, from the bottom of the body of water.Which navigation instrument is useful for steering when land is out of sight?
compass
Why is it important to have a nautical chart?
Nautical charts are key to safe navigation. It is a map that depicts the configuration of the shoreline and seafloor. It provides water depths, locations of dangers to navigation, locations and characteristics of aids to navigation, anchorages, and other features. The nautical chart is essential for safe navigation.What is AC chart?
A c-chart is an attributes control chart used with data collected in subgroups that are the same size. C-charts show how the process, measured by the number of nonconformities per item or group of items, changes over time. Nonconformities are defects or occurrences found in the sampled subgroup.What is large scale chart?
CHART SCALES The scale of a chart refers to a measurement of distance-not area. A chart covering a relatively large area is called a small-scale chart, and one covering a relatively small area is called a large-scale chart. Scales may vary from 1:1,200 for plans to 1:14,000,000 for world charts.What is a water map called?
Bathymetry is the measurement of the depth of water in oceans, rivers, or lakes. Bathymetric maps look a lot like topographic maps, which use lines to show the shape and elevation of land features.How often are nautical charts updated?
Q: How often should I update my charts? A: Each year, NOAA issues over 11,000 corrections to their suite of over 1,000 charts. Depending on the area of boating, you should consider updating your charts on a regular basis and certainly when a new edition is released.Can GPS be used in place of marine charts?
Marine GPS (Global Positioning System) devices can be used to identify your location. Nautical publications and marine charts are now available in electronic format can be used in conjunction with Marine GPS. This offers boaters an extremely high degree of navigation certainty.How are nautical miles different?
A nautical mile measures distance and a knot measures speed. It is slightly more than a statute (land measured) mile (1 nautical mile = 1.1508 statute miles ). Nautical miles are used for charting and navigating. The speed of the ship was said to be the number of knots counted (Bowditch, 1984).What is the use of chart Catalogue?
It gives the date of publication, Diagrammatic index of coverage date of current edition, coverage area of publication & titles of various charts & publication.What is passage planning in navigation?
Passage planning or voyage planning is a procedure to develop a complete description of a vessel's voyage from start to finish. The plan includes leaving the dock and harbor area, the en route portion of a voyage, approaching the destination, and mooring, the industry term for this is 'berth to berth'.Are nautical charts in feet or meters?
Most are in feet but it depends on location and age : U.S. charts began switching from feet and fathoms to soundings in meters using the international standard for measuring depth. Soundings in meters can be quickly converted to feet, by dividing by 3: the math isn't accurate, since a meter is slightly more than 3 ft.What do you understand by chart?
