NetFlow is a network protocol developed by Ciscofor collecting IP traffic information and monitoring networktraffic. By analyzing flow data, a picture of networktraffic flow and volume can be built.

Also question is, what is the use of NetFlow?

NetFlow is a technology developed by Cisco thatallows you to collect IP traffic information so you can monitoryour traffic and see who is using your bandwidth and why. It is apowerful and extremely useful tool for network monitoring andsomething every network administrator should know how touse.

Furthermore, what is a difference between SNMP and NetFlow? SNMP vs NetFlow: NetFlow emerges asa more compact protocol than SNMP that scales better forperformance collection and network traffic management. A couple ofbig difference between SNMP vs NetFlow are:SNMP can be used to collect CPU and memory utilization andthat just isn't available yet using NetFlow.

In respect to this, what is a NetFlow record?

Netflow, a protocol developed by Cisco, is usedto collect and record all IP Traffic going to and from aCisco router or switch that is Netflow enabled.

What is the purpose of the NetFlow in VMware?

NetFlow is a mechanism to analyze network trafficflow and volume to determine where traffic is coming from, where itis going to, and how much traffic is being generated. VMwareuses the IPFIX version of NetFlow, which is version 10, andstands for “Internet Protocol Flow InformationeXport.”

Why is NetFlow important?

The History of Netflow Network flow remains relevant in networksecurity because it is still the most efficient way to collect andstore information about the endpoints, communications,applications, and users that make up the cyberenvironment.

How does NetFlow work?

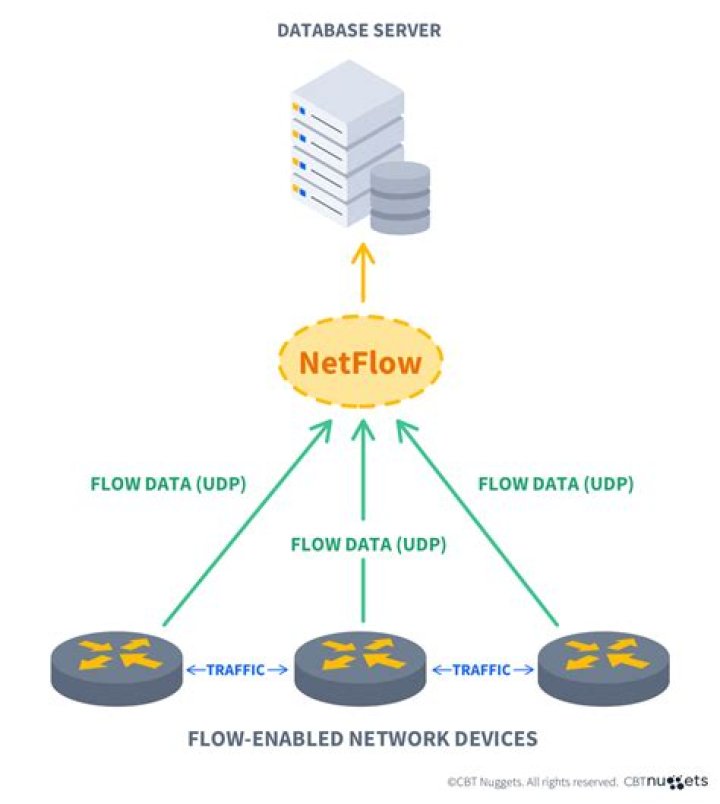

How NetFlow Works. NetFlow is a networkprotocol developed by Cisco for collecting IP traffic informationand monitoring network traffic. By analyzing flow data, a pictureof network traffic flow and volume can be built.

Is NetFlow free?

The free version includes a NetFlowsensor, in addition to many other features like reporting,alarming, and SNMP monitoring. The free version can monitorup to 10 sensors at no cost.

What port is NetFlow?

The NetFlow RFC 3954 does not specify a specificNetFlow listening port, however, in my experience2055 and 9995 or 9996 are the most popular. Fortunately, ourNetFlow solution, by default, will listen for anyNetFlow/sFlow traffic sent to it on UDP ports 2055,2056, 4432, 4739, 9995, 9996, and 6343.

Is NetFlow encrypted?

While NetFlow data can be sent to a collectoravailable over the public Internet, NetFlow traffic is notinherently encrypted or obfuscated, so it may be possiblefor a man in the middle to intercept and view the NetFlowdata sent to the collector.

Is NetFlow UDP or TCP?

NetFlow Packet transport protocol NetFlow records are traditionally exported usingUser Datagram Protocol (UDP) and collected using aNetFlow collector. Note that TCP would not besuitable for NetFlow because a strict ordering of packetswould cause excessive buffering and delays.

What is NetFlow server?

NetFlow is a network protocol developed by Ciscofor collecting IP traffic information and monitoring networktraffic. Using a NetFlow collector and analyzer, youcan see where network traffic is coming from and going to and howmuch traffic is being generated.

What is Ipfix vs NetFlow?

IPFIX also allows for variable length fields,whereas NetFlow is a lot more rigid in the nature of itsfields, which can make transmitting information that varies wildly,or just happens to change a lot in expected format (URLs,usernames, etc.), a lot easier.

Is NetFlow proprietary?

Netflow is a Cisco proprietary protocoland as such is not supported by anything other than Cisco devices.sFlow is an IETF standard for doing pretty much the same thing butin a standard that isn't owned by one particularmanufacturer.

What is J Flow?

JFlow is a IP traffic flow samplertechnology used by Juniper manufactured routers and switches.JFlow is considered a flow sampler technology muchlike Sflow, and when enabled on an interface; it allows packets inthe input stream to be sampled.

What is IP Flow Monitor?

June 23, 2015 by Rowell Dionicio 0 Comments.NetFlow is used to collect data flows frominterfaces. The information can be stored on the switch but morecommonly sent to a server which collects the NetFlow dataand spits it out into something shiny. Okay, not shiny but datamore easily digestible.

What are three reasons to collect NetFlow data on a company network?

What are three reasons to collect Netflow data on a companynetwork? (Choose three.)

To identify applications causing congestion.
To authorize user network access.
To report and alert link up / down instances.
To diagnose slow network performance, bandwidth hogs, andbandwidth utilization.

What is Flexible NetFlow?

Flexible Netflow is Cisco's next generationtechnology that provides richer and more detailed information thanthe original NetFlow (V5 or V9) did.

What is NetFlow Analyzer?

NetFlow Analyzer is a unified solution thatcollects, analyzes and reports about what your network bandwidth isbeing used for and by whom. NetFlow Analyzer is the trustedpartner optimizing the bandwidth usage of over a million interfacesworldwide apart from performing network forensics and networktraffic analysis.

What is IP flow ingress?

ip flow ingress command. The command ip flowingress is issued to ensure that all flows passingthrough the router can be monitored regardless of direction.Traffic may be monitored in any direction, which makes options B,C, and D incorrect choices."

What is NetFlow sampling rate?

Sampled NetFlow collects NetFlow data fora subset of traffic on the interface(s) being monitored. Instead ofcollecting every packet, Sampled NetFlow collects only 1packet in every N number of packets. If you set a samplingrate on a device, you must set the same sampling ratefor the device in Auvik.

What is port mirroring in vmware?

Port mirroring is the capability on a networkswitch to send a copy of network packets seen on a switchport to a network-monitoring device connected to anotherswitch port. Port mirroring is also referred to asSwitch Port Analyzer (SPAN) on Ciscoswitches.
