What is N type?

An N-type semiconductor is a type of material used in electronics. It is made by adding an impurity to a pure semiconductor such as silicon or germanium. The impurities used may be phosphorus, arsenic, antimony, bismuth or some other chemical element. They are called donor impurities.

.

Furthermore, what is n type and p type?

The impurity added in p-type semiconductor provides extra holes known as Acceptor atom, whereas in n-type semiconductor impurity provides extra electrons and termed as Donor atom. In a p-type semiconductor, the majority carriers are holes, and minority carriers are electrons.

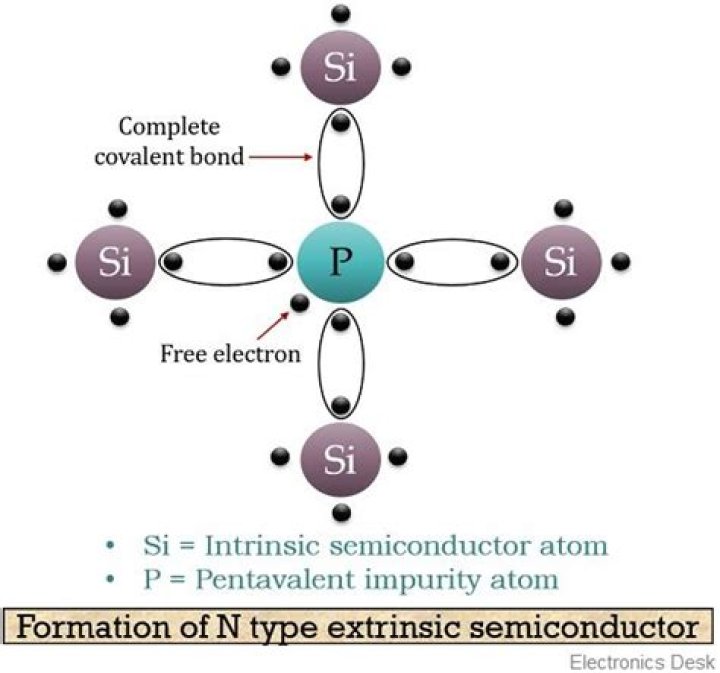

what is N type semiconductor with example? N-type Semiconductor Example A N-type semiconductor is created by doping this pure silicon crystal lattice with a pentavalent impurity element like Antimony (Sb). The Antimony (Sb) impurity element electron form covalent bonds with only four silicon atoms.

Similarly, what is P type?

The term p-type refers to the positive charge of a hole. As opposed to n-type semiconductors, p-type semiconductors have a larger hole concentration than electron concentration. In p-type semiconductors, holes are the majority carriers and electrons are the minority carriers.

Is an N type semiconductor negatively charged?

p and n type materials are NOT positively and negatively charged. An n-type material by itself has mainly negative charge carriers (electrons) which are able to move freely, but it is still neutral because the fixed donor atoms, having donated electrons, are positive.

Related Question Answers

How is N type semiconductor produced?

A N-type semiconductor is created by doping this pure silicon crystal lattice with a pentavalent impurity element like Antimony (Sb). In an N-type semiconductor the atom of pentavalent impurity element Antimony (Sb) is in between silicon atoms. The Silicon atoms have four electrons in the valence shell.

What is P type impurities?

A p-type semiconductor is a type of semiconductor. When the trivalent impurity is added to an intrinsic or pure semiconductor (silicon or germanium), then it is said to be an p-type semiconductor. Trivalent impurities such as Boron (B), Gallium (Ga), Indium(In), Aluminium(Al) etc are called acceptor impurity.

What is meant by depletion region?

Depletion region or depletion layer is a region in a P-N junction diode where no mobile charge carriers are present. Depletion layer acts like a barrier that opposes the flow of electrons from n-side and holes from p-side.

What is hole in semiconductor?

In physics, a hole is an electric charge carrier with a positive charge, equal in magnitude but opposite in polarity to the charge on the electron. Holes and electrons are the two types of charge carriers responsible for current in semiconductor materials.

What are the two types of semiconductor?

In this way two types of semiconductor are available: Electrons are negatively charged carriers.

• N-type: An N-type semiconductor material has an excess of electrons.
• P-type: In a P-type semiconductor material there is a shortage of electrons, i.e. there are 'holes' in the crystal lattice.

What is meant by energy gap?

Definition of bandgap. : the difference in energy between the valence band and the conduction band of a solid material (such as an insulator or semiconductor) that consists of the range of energy values forbidden to electrons in the material.

What are semiconductors used for?

Semiconductor. Semiconductor, any of a class of crystalline solids intermediate in electrical conductivity between a conductor and an insulator. Semiconductors are employed in the manufacture of various kinds of electronic devices, including diodes, transistors, and integrated circuits.

How do you know if its type or p type?

The easiest would be judging form the periodic table. If the dopant has more electrons in the outer shell than the semiconductor material, it's going to be n-type, and with less electrons in the outer shell, it's p-type. At least for Group IV semiconductors (Si, Ge).

Why is it called P type?

Because an acceptor donates excess holes, which are considered to be positively charged, a semiconductor that has been doped with an acceptor is called a p-type semiconductor; "p" stands for positive. Notice that the material as a whole remains electrically neutral.

What is p and n type of semiconductor?

In n-type semiconductors, electrons are the majority carriers and holes are the minority carriers. N-type semiconductors are created by doping an intrinsic semiconductor with donor impurities. A common dopant for n-type silicon is phosphorus. The term p-type refers to the positive charge of the hole.

What is P type N type semiconductor?

The impurity added in p-type semiconductor provides extra holes known as Acceptor atom, whereas in n-type semiconductor impurity provides extra electrons and termed as Donor atom. In a p-type semiconductor, the majority carriers are holes, and minority carriers are electrons.

How many types of semiconductors are there?

In this way two types of semiconductor are available: Electrons are negatively charged carriers.

• N-type: An N-type semiconductor material has an excess of electrons.
• P-type: In a P-type semiconductor material there is a shortage of electrons, i.e. there are 'holes' in the crystal lattice.

How do you make silicon N type?

In doping, you mix a small amount of an impurity into the silicon crystal. N-type - In N-type doping, phosphorus or arsenic is added to the silicon in small quantities. Phosphorus and arsenic each have five outer electrons, so they're out of place when they get into the silicon lattice.

What is an acceptor impurity?

Acceptor Impurity. An acceptor Impurity is a physical material which when added to a semiconductor can form P-type region by creating positive charges or holes in the semiconductor material like silicon or germanium.

What is energy band diagram?

In solid-state physics of semiconductors, a band diagram is a diagram plotting various key electron energy levels (Fermi level and nearby energy band edges) as a function of some spatial dimension, which is often denoted x.

WHAT IS AN type material?

Definition of type material. : a group of equivalent specimens collected at the type locality at one time and used wholly or partially in the identification and description of a new taxonomic entity.

Why impurities are added to semiconductor?

Since conductivity depends on the no of charge carriers per unit volume, the conductivity increases. So , impurity is added to increase the carrier concentration. Note: So, to make these intrinsic semiconductors slightly conduct electricity, impurity atoms called dopants are added.

What is the n type and p type?

N-type semiconductors are created by doping an intrinsic semiconductor with donor impurities. A common dopant for n-type silicon is phosphorus. The term p-type refers to the positive charge of the hole. In p-type semiconductors, holes are the majority carriers and electrons are the minority carriers.

Why is N type semiconductor neutral?

An n-type material by itself has mainly negative charge carriers (electrons) which are able to move freely, but it is still neutral because the fixed donor atoms, having donated electrons, are positive. Since the atom on the whole is electrically neutral, the n-type semiconductor is also neutral.
