What is meant by dry density of soil?

Dry density of a soil is the ratio of total dry mass of soil to the total volume of soil. if degree of compaction will be more then dry density of that soil mass will be more.

.

Also to know is, how do you find the dry density of soil?

Calculate the dry density using the following equation: Dry Density (pcf) = Wet Density (pcf) – Moisture Content (pcf). 9.1. Report the moisture content of the soil to the nearest 0.1 percent and the moisture content of aggregate base materials to the nearest 0.1 pound per cubic foot.

Subsequently, question is, what is the meaning of maximum dry density? Definition of maximum dry density. The dry density obtained by the compaction of soil at its optimum moisture content.

Similarly, it is asked, what is the maximum dry density of soil?

The results of a set of standard Proctor compaction tests on a particular soil give a maximum dry density of 19.6 kN/m³ and an optimum moisture content of 12.5%. The specific gravity of solids for the soil is 2.68.

What is dry density test?

The Proctor compaction test is a laboratory method of experimentally determining the optimal moisture content at which a given soil type will become most dense and achieve its maximum dry density. The graphical relationship of the dry density to moisture content is then plotted to establish the compaction curve.

Related Question Answers

What is the unit of dry density?

The dry density refers to the soil solids. It is otherwise called as dry unit weight of soil. The dry density should be calculated using the expression as below, Here, γ d is dry density, M s is mass of the soil solids and V T is total soil solid volume.

What is the density of soil?

The weight per unit volume of the solid portion of soil is called particle density. Generally particle density of normal soils is 2.65 grams per cubic centimeter.

What is CBR value?

CBR is the ratio expressed in percentage of force per unit area required to penetrate a soil mass with a standard circular plunger of 50 mm diameter at the rate of 1.25 mm/min to that required for corresponding penetration in a standard material.

What is void ratio formula?

The void ratio is the ratio of the volume of voids (open spaces, i.e. air and water) in a soil to volume of solids. Where: e = Void Ratio. V_v = Volume of voids (m³ or ft³) V_s = Volume of solids (m³ or ft³)

Why is maximum dry density important?

Optimum Moisture Content/Maximum Dry Density (OMC/MDD) Optimum moisture content/maximum dry density (OMC/MDD) – when placing soils as fill materials, it is important to achieve suitable compaction, primarily in order to reduce the susceptibility of a soil to settlement.

What is specific gravity of soil?

NEED AND SCOPE. The knowledge of specific gravity is needed in calculation of soil properties like void ratio, degree of saturation etc. DEFINITION. Specific gravity G is defined as the ratio of the weight of an equal volume of distilled water at that temperature both weights taken in air.

How do you find the volume of a void?

Void Volume Calculation Multiply the voidage by the volume of the dry sand to find the volume of the void. With 1,000 ml of dry sand and a voidage of 0.4, you have a void volume of 400 ml.

How is OMC calculated?

To calculate the amount of liquid required per m3 to achieve OMC, multiply the answer in #5 (4grm) by 9000. Or, simply by a factor of 9. (4grm x 9 = 36ltr of liquid) This will give you the total amount liquid liters (36ltr) to achieve OMC.

What does 95% compaction mean?

For example, specifications often require compaction to be 95 percent of Standard Proctor. This means the on-site soil density must be equal to 95% of the maximum achievable compaction. • Compaction is achieved by applying three basic types of force to the soil mass.

What is OMC soil?

Optimum moisture content (OMC) is the percentage of water present in soil mass at which a specific compaction force can dry the soil mass to its maximum dry weight. The adjacent graph (please click to enlarge) shows that the void ratio at OMC is approximately zero and soil is densely compacted.

What is bulk density of soil?

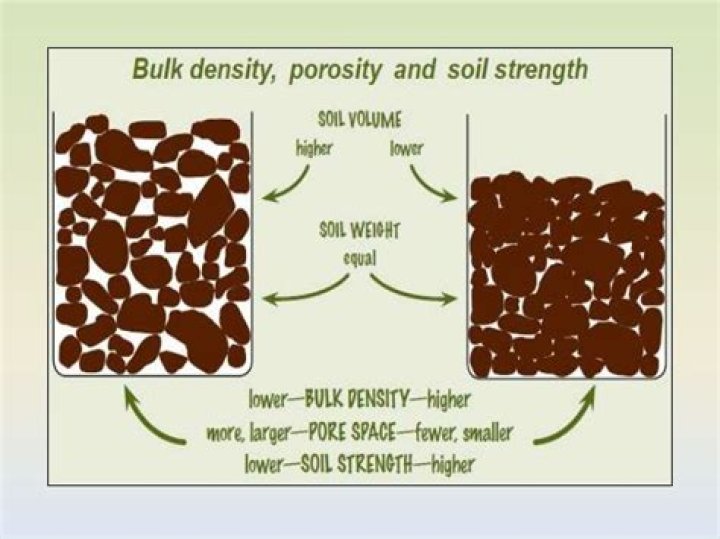

Bulk density is an indicator of soil compaction. It is calculated as the dry weight of soil divided by its volume. This volume includes the volume of soil particles and the volume of pores among soil particles. Bulk density is typically expressed in g/cm3.

What is wet density?

Wet bulk density = mass of soil plus liquids/ volume as a whole. The dry bulk density of a soil is inversely related to the porosity of the same soil: the more pore space in a soil the lower the value for bulk density.

Why MDD test is done?

Compaction testing in the laboratory is conducted for various reasons, but generally is it to determine for a pavement or earthwork material sample the Optimum Moisture Content (OMC) and Maximum Dry Density (MDD) or Maximum Wet Density (MWD). These tests are generally referred to as Proctor tests.

What is the zero air voids line?

Zero Air Voids. It means the soil is fully saturated, with the air is not present in the pores of the soil mass. It is obtained from the compaction test. The graph is plotted for dry density versus water content. To draw the zero-air void line, the dry density is to be calculated and that is expressed as below.

What is liquid limit of soil?

The liquid limit is the moisture content at which the groove, formed by a standard tool into the sample of soil taken in the standard cup, closes for 10 mm on being given 25 blows in a standard manner. This is the limiting moisture content at which the cohesive soil passes from liquid state to plastic state.

What is meant by bulk density?

Soil weight is most often expressed on a soil volume basis rather than on a particle basis. Bulk density is defined as the dry weight of soil per unit volume of soil. Bulk density considers both the solids and the pore space; whereas, particle density considers only the mineral solids. Now calculate the bulk density.

What is permeable soil?

Soil permeability is the property of the soil to transmit water and air and is one of the most important qualities to consider for fish culture. A pond built in impermeable soil will lose little water through seepage. The more permeable the soil, the greater the seepage.

What is OMC?

Noun. OMC (plural OMCs) (fandom slang) A male original character.

What is civil FDT test?

FDT which is acronym of Field Density Test is a Quality Control test carried out at site for knowing the increased density or compaction achieved at site on the soil layer. FDT is a part of in-situ soil testing which is a broad subject of geotechnical engineering.
