In an induction motor or transformer, it is the reactance associated with the inductance of the flux path linking (sort of overlapping) the primary and secondary (transformer) or stator and rotor (induction motor). The leakage is associated with the flux paths that do not link, and act just as series inductors..
Then, what is magnetizing reactance?
The magnetizing reactance is defined as the result of calculating the electric machine magnetic circuit.
One may also ask, what is magnetizing inductance in transformer? Magnetizing inductance is associated with the flux that actually links the core of the transformer (as opposed to leakage flux, which does not). If you're familiar with the 'open circuit test' for a transformer that's used to measure Xm, think about how the test is performed.
In this manner, what is Magnetising reactance of transformer?
In circuit theory terms, the magnetising reactance is simply the reactance due to the self-inductance of the primary of the transformer. In most transformers the reluctance of the core is small, and as a result the magnetising current (Im) is much smaller than the normal full-load (rated) primary current.
What is XM in transformer?
In a transformer model, Xm is simply the inductance of the primary winding and the core. Introducing a ferromagnetic core changes this behavior by dramatically increasing primary inductance at lower primary voltages (i.e., during normal operation).
Related Question Answers
How do you calculate magnetizing current?
Primary current begins to flow. This is the magnetizing current ( no secondary current ) and is governed by the differential equation V(t) = L x d(I)/dt + Rp x I(t), with units of volts, henries, amps, and seconds.How do you calculate magnetizing inductance?
- Use DC power to measure resistance R.
- Measure current by applying 110/220V Ac in primary coil while secondary coil is open-circuit.
- Find total impedance Z from step 2 using Vrms and I rms. 4.Find inductive reactance Xl by substracting R from Z. Z^2=R^2+Xl^2.
- By finding Xl use below formula to find inductance L. Xl=2πfL.
What is magnetizing current?
Magnetizing current is the term used to denote the total current that flows into the primary of a transformer when the transformer is energized at a specific voltage and frequency, with the secondaries open circuited.What is reactance physics?
In electric and electronic systems, reactance is the opposition of a circuit element to the flow of current due to that element's inductance or capacitance. As frequency goes up, inductive reactance also goes up and capacitive reactance goes down.What is leakage inductance in transformer?
Leakage inductance is an inductive component present in a transformer that results from the imperfect magnetic linking of one winding to another.What is magnetic inductor?
An inductor, also called a coil, choke, or reactor, is a passive two-terminal electrical component that stores energy in a magnetic field when electric current flows through it. An inductor typically consists of an insulated wire wound into a coil around a core.What is the equivalent circuit of a transformer?
The transformer is now ideal and the circuit elements account for the losses and voltage drops in the real transformer. The combination of the winding resistances is called equivalent resistance. The combination of the leakage reactances is called the equivalent reactance.What are hysteresis losses?
Hysteresis loss is due to the reversal of magnetization of transformer core whenever it is subjected to alternating nature of magnetizing force . Whenever the core is subjected to an alternating magnetic field, the domain present in the material will change their orientation after every half cycle.What is flux in transformer?
Flux is magnetic flux or a magnetic field created in the iron core of the transformer by the AC current flowing in the primary winding. A constantly changing magnetic field created by the AC applied to the primary is the means by which an AC voltage and current is induced in the secondary winding of the transformer.What is meant by leakage reactance?
Leakage reactance in Synchronous machine. It is the reactance due to flux setup by armature windings, but not crossing the air gap. It can be divided into end-winding leakage and slot leakage.What is meant by magnetic saturation?
Seen in some magnetic materials, saturation is the state reached when an increase in applied external magnetic field H cannot increase the magnetization of the material further, so the total magnetic flux density B more or less levels off. (It continues to increase very slowly due to the vacuum permeability.)What is fringing effect?
Fringing Effect The fringing effect results from the presence of the air gap in the magnetic circuit. The main consequence of the fringing effect is to make the magnetic flux density of the air gap different from the flux density of the core due to the path of the flux.What is impedance of a transformer?
The impedance of a transformer is defined as the percentage of the drop in voltage to the at full load to the rated voltage of the transformer. This drop in voltage is due to the winding resistance and leakage reactance. The secondary of the transformer whose percentage impedance is to be measured is shorted.What is transformer percentage reactance?
Percentage Reactance in Power System: The percentage reactance of a circuit is defined as under : It is the percentage of the total phase-voltage dropped in the circuit when full-load current is flowing.What is meant by leakage flux?

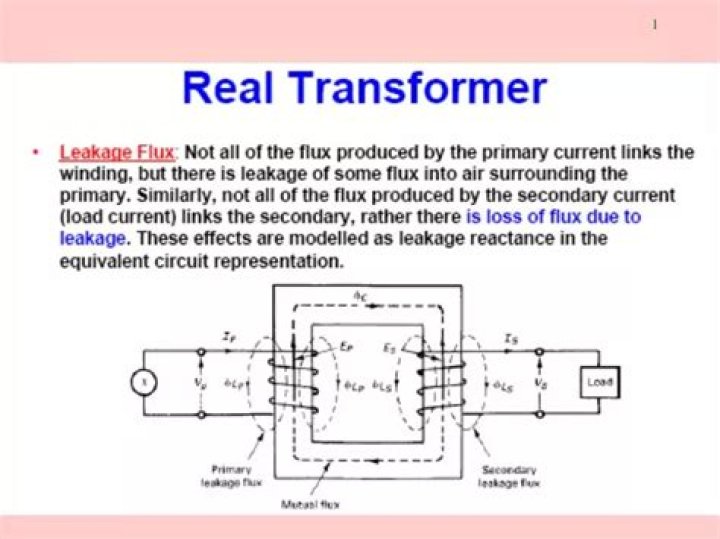

Leakage flux is defined as the magnetic flux which does not follow the particularly intended path in a magnetic circuit. Taking an example of solenoid you can explain the leakage flux and the fringing both. When a current is passed through a solenoid, magnetic flux is produced by it.Why leakage flux is represented by inductive reactance in a transformer?
In a transformer it is observed that, all the flux linked with primary winding does not get linked with secondary winding. Hence, leakage flux produces an effect equivalent to an inductive coil in series with each winding. And due to this there will be leakage reactance.What is mutual inductance?
Mutual Inductance is the interaction of one coils magnetic field on another coil as it induces a voltage in the adjacent coil. In the previous tutorial we saw that an inductor generates an induced emf within itself as a result of the changing magnetic field around its own turns.How is transformer inductance measured?
Yes, it is possible to measure the leakage inductance of a transformer via an LCR meter or impedance analyzer. Primary inductance (L1) and secondary inductance (L2) can be measured directly by connecting the instrument as shown in Figure 1 and Figure 2. All other transformer windings should be left open.What is magnetizing flux?
The magnetic flux is the net number of field lines passing through that surface; that is, the number passing through in one direction minus the number passing through in the other direction (see below for deciding in which direction the field lines carry a positive sign and in which they carry a negative sign).
