What is luminous intensity of LED?
.
Just so, how is luminous intensity of LED measured?
The luminous intensity (unit: candela) of LEDs can be measured with a conventional photometric bench and the standard photometers [2] under a far field condition, at a distance far enough so that the test LED can be regarded as a point source (typically 2 m or longer).
Secondly, what is MCD in LED brightness? The unit of measure commonly used to describe LED intensity is the millicandela (mcd), 1000 millicandela equals 1 candela. Candelas measures how much light is produced as measured at the light source.
Keeping this in view, what is the meaning of luminous intensity?
In photometry, luminous intensity is a measure of the wavelength-weighted power emitted by a light source in a particular direction per unit solid angle, based on the luminosity function, a standardized model of the sensitivity of the human eye. The SI unit of luminous intensity is the candela (cd), an SI base unit.
What is the measure of light intensity?
The lux (symbol: lx) is the SI unit of illuminance and luminous emittance, measuring luminous flux per unit area. It is equal to one lumen per square metre. In photometry, this is used as a measure of the intensity, as perceived by the human eye, of light that hits or passes through a surface.
Related Question AnswersHow are lumens measured?
Using the metric system, a lumen is measured by a square meter or a lux. Thus a foot-candle is equivalent to approximately 10 lux or 10.57 lux. A higher number of lumens are indicative of a brighter, more intense light, whereas a lower number of lumens represent dimmer, more subdued lighting.How is led power measured?
To calculate an LED's power use, simply multiply the LED's voltage (in volts) by the LED's current (in amperes). The result, measured in watts, is the amount of power your LEDs use. For example, if your LED has a voltage of 3.6 and a current of 20 milliamperes, it will use 72 milliwatts of power.Which instrument is used to measure luminous intensity?
photometerHow is luminous efficacy measured?
Luminous efficacy of radiation measures the fraction of electromagnetic power which is useful for lighting. It is obtained by dividing the luminous flux by the radiant flux.What is SI unit of intensity?
The SI unit of intensity is the watt per square meter/metre (W/m^2.) Intensity is equal to the power transferred per unit area.What is the unit of light?
The lux (symbol: lx) is the SI derived unit of illuminance, measuring luminous flux per unit area. It is equal to one lumen per square metre. In photometry, this is used as a measure of the intensity, as perceived by the human eye, of light that hits or passes through a surface.What is the unit of intensity of sound?
decibel (dB)What is the unit of luminous flux?

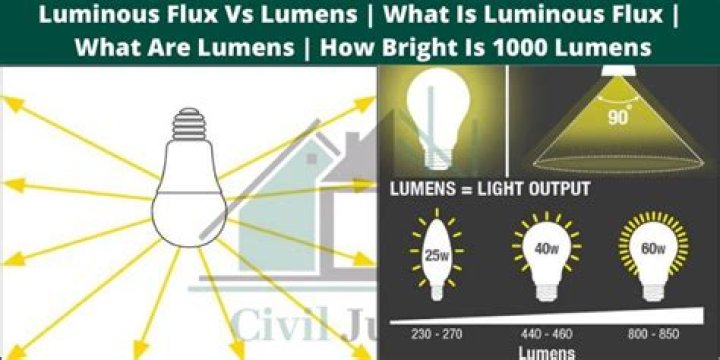

The SI unit of luminous flux is the lumen (lm). One lumen is defined as the luminous flux of light produced by a light source that emits one candela of luminous intensity over a solid angle of one steradian. In other systems of units, luminous flux may have units of power.How many volts can an LED take?
Typically, the forward voltage of an LED is between 1.8 and 3.3 volts. It varies by the color of the LED. A red LED typically drops 1.8 volts, but since both voltage drop and light frequency increase with band gap, a blue LED may drop from 3 to 3.3 volts.How many watts is 600 lumens?
Lumens to watts table| Lumens | Incandescent light bulb (watts) | Fluorescent / LED (watts) |
|---|---|---|
| 375 lm | 25 W | 6.23 W |
| 600 lm | 40 W | 10 W |
| 900 lm | 60 W | 15 W |
| 1125 lm | 75 W | 18.75 W |
