What is LSA and LSU in OSPF?

so LSA is a data structure that can be transported in full detail in LSU packets. other OSPF messages carry the so called LSA header made of the three fields described above. to be noted: an OSPF LSU packet can carry multiple LSA bodies for link efficiency up to interface MTU (including IP and OSPF headers)

.

Regarding this, what is LSA in OSPF?

The link-state advertisement (LSA) is a basic communication means of the OSPF routing protocol for the Internet Protocol (IP). It communicates the router's local routing topology to all other local routers in the same OSPF area.

Likewise, what is the function of the OSPF LSU packet? Link State Update (LSU) packets are OSPF packet Type 4. These packets implement the flooding of LSAs. Each LSA contains routing, metric and topology information to describe a portion of OSPF network. The local router advertises LSA within an LSU packet to its neighboring routers.

Considering this, what are the LSA types in OSPF?

OSPF LSA Types Explained

• LSA Type 1: Router LSA.
• LSA Type 2: Network LSA.
• LSA Type 3: Summary LSA.
• LSA Type 4: Summary ASBR LSA.
• LSA Type 5: Autonomous system external LSA.
• LSA Type 6: Multicast OSPF LSA.
• LSA Type 7: Not-so-stubby area LSA.
• LSA Type 8: External attribute LSA for BGP.

What is LSA type5?

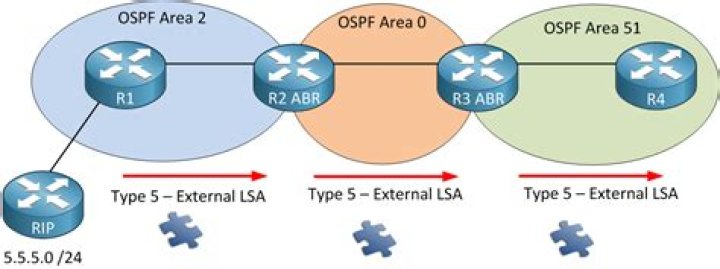

OSPF creates a type 5 LSA for a subnet that is injected into OSPF from an external source. To inject the route, the autonomous System Border Router (ASBR), which is by definition a router that connects to a non-OSPF routing domain, uses the redistribute command. LSA contains the metric as dictated by the ASBR.

Related Question Answers

What is a Type 3 LSA?

Type 3 LSA uses network address as Link ID and router id of advertising router as ADV Router in OSPF database. By default a type 3 LSA contains information about only one network learned in the area, so, ABR (Area Border Router) will generate one type 3 LSA per network learned via type 1 LSA.

Why is type 4 LSA required?

So, a type-4 asbr-summary LSA is needed to help make the ASBR reachable and, by extension make the associated type-5 prefix valid. The type-4 acts like a glue record, and uses the ABRs well known RID as a care-of address for the ASBR and it's advertised prefixes.

Does OSPF use TCP or UDP?

Open Shortest Path First (OSPF) is a link-state routing protocol. OSPF does not use a TCP/IP transport protocol (UDP, TCP), but is encapsulated directly in IP datagrams with protocol number 89. BGP uses the Transmission Control Protocol (TCP) as its transport protocol, and is assigned the reserved port 179.

How can I remember OSPF States?

When OSPF is enabled neighbor routers it may goes through various states. MNEMONIC – Dogs Attack Individuals To Earn Eating Lovely Food. DOWN state – everyone is down, nobody sent anything. INIT state – Received Hello without my router-id in hello.

What does LSA?

What is LSA? LSA, d-lysergic acid amide or ergine, is a product during the creation of LSD, and psychoactive in itself. As a precursor to LSD, the chemical structure of LSA and LSD is similar. Although active in microgram doses, LSA is not as potent as synthesised LSD, and shows a distinct character in its effects.

Why do we use OSPF?

The idea behind the OSPF areas is to lower the amount of routing traffic and lower the processing of your core routers. Different areas are connected with each other through Area Border Router (ABR). OSPF is link state routing protocol and you can tune a link state routing protocol to converge fast.

What is Type 7 LSA OSPF?

LSA Type 7 (NSSA External LSA) Type 7 LSA allow injection of external routes throug Not-so-Stubby-Areas (NSSA). Generally external routes are advertised by type 5 LSA but they are not allowed inside any stub area. That's why Type 7 LSA is used, to trick OSPF.

What is a Type 1 LSA?

Type 1 LSA (also called Router LSA) contains information about directed connected links in the area to which the router belong. They are flooded to all routers in that area.

What is a Type 2 LSA?

Type 2 – Network LSA – the designated router (DR) on a broadcast segment (e.g. Ethernet) lists which routers are joined together by the segment. Type 2 LSAs are flooded across their own area only. The link-state ID of the type 2 LSA is the IP interface address of the DR.

What are the benefits of OSPF?

OSPF supports/provides/advantages –

• Both IPv4 and IPv6 routed protocols.
• Load balancing with equal cost routes for same destination.
• VLSM and route summarization.
• Unlimited hop counts.
• Trigger updates for fast convergence.
• A loop free topology using SPF algorithm.
• Run on most routers.
• Classless protocol.

How does OSPF protocol work?

OSPF is a routing protocol. Each OSPF router passes along information about the routes and costs they've heard about to all of their adjacent OSPF routers, called neighbors. OSPF routers rely on cost to compute the shortest path through the network between themselves and a remote router or network destination.

What is Asbr?

Asbr stands for autonomous system boundary router when ever you perform redistribution by using commands like redistribute connected subnets (to redistribute the connected subnets to that router) then that router is called as asbr.

What are OSPF neighbor states?

OSPF Neighbor States Explained with Example. OSPF routers go through the seven states, called Down, Attempt/Init, Two ways, Exstart, Exchange, Loading and full while building adjacency with other OSPF speaking routers.

What is opaque LSA?

Opaque LSAs consist of a standard LSA header followed by application-specific information. The information field may be used directly by OSPF or by other applications. Standard OSPF link-state database flooding mechanisms are used to distribute Opaque LSAs to all or some limited portion of the OSPF topology.

What does an OSPF area contain?

An OSPF network can be divided into areas that are logical groupings of hosts and networks. An area includes its connecting router having interfaces connected to the network. Each area maintains a separate link state database whose information may be summarized towards the rest of the network by the connecting router.

Which protocol does BGP use?

Border Gateway Protocol (BGP) is a standardized exterior gateway protocol designed to exchange routing and reachability information among autonomous systems (AS) on the Internet. The protocol is classified as a path vector protocol.

What is DBD in networking?

When was DBD(database descriptor) packets sent ? My understanding is when the routers go into an exchange state, the dbd packets are sent to describe the networks that the router knows about to its neighbor. The dbd packet has the lsa headers of its lsdb and it's sent to the neighbor.

How many network types are there in OSPF?

three

Which packet is not an OSPF packet type?

Which packet is NOT an OSPF packet type? Explanation: LSU is the Link State Update packet, LSR is the Link State Request packet and DBD is the Database Descriptor packet in OSPF. Query packet is NOT an OSPF packet type.
