In graphical analysis of nonlinear electronic circuits,a load line is a line drawn on the characteristiccurve, a graph of the current vs. the voltage in a nonlinear devicelike a diode or transistor. It represents the constraint put on thevoltage and current in the nonlinear device by the externalcircuit..
Thereof, what is meant by load line?
A load line is used in graphical analysis ofnonlinear electronic circuits, representing the constraint otherparts of the circuit place on a non-linear device, like a diode ortransistor. It is usually drawn on a graph of the current vs thevoltage in the nonlinear device, called the device's characteristiccurve.
One may also ask, what is the importance of load line? The purpose of the load line is to ensure that aship has sufficient freeboard (the height from the waterline to themain deck) and thus sufficient reserve buoyancy (volume of shipabove the waterline). It should also ensure adequate stability andavoid excessive stress on the ship's hull as a result ofoverloading.
In this manner, what is load line of a transistor?

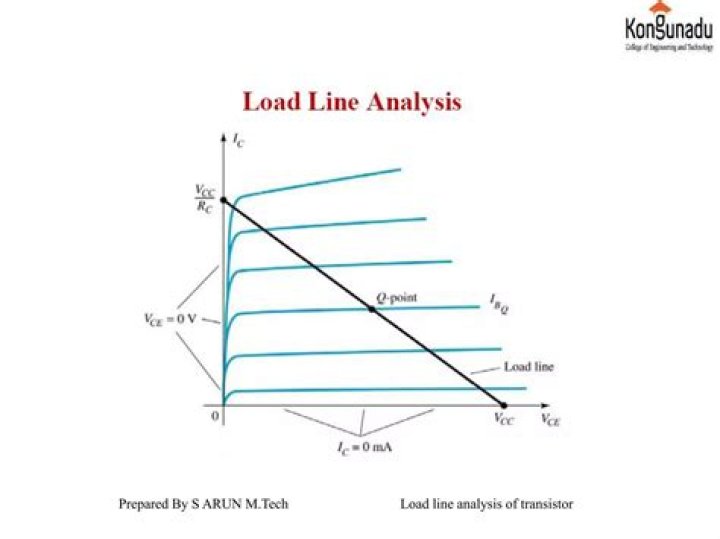

Load line is locus of operating point of thetransistor. It is graph plotted between Ic and Vce for anyconfiguration. It helps you to decide respective values ofcollector current and collector to emitter voltage to operatetransistor in any particular mode or region.
What is load line of a diode?
A plot of the current, I, versus the voltage drop acrossthe diode, VD, will yield a straight line, called the"Load Line", of possible values of current flow in thecircuit. This provides a graphical solution for the currents andvoltages in a circuit with a diode.
Related Question Answers
How is load line obtained?
When a line is drawn joining these two points,such a line can be called as Load line. This iscalled so as it symbolizes the output at the load. Thisline, when drawn over the output characteristic curve, makescontact at a point called as Operating point. The load linehas to be drawn in order to obtain the Q-point.What is the difference between line and load?
Line is the side of the device where the wiresfrom the panel (or other equipment feeding the device) areconnected. Load is where any devices that are to beprotected by the GFCI device are connected. Most "newer" GFCIdevices will not reset if they are not connectedprobably.What is AC load?
An AC load is any device which receivesalternating-current (AC) electrical power from a source inan electrical system. Loads are integrated into circuits fortesting and measurement of current, voltage andfrequency.What is stability factor?
The stability factor is the rate of change ofcollector current with respect to the reverse saturation currentwhen the collector-emitter current gain (β) and base currentis constant. The stability factor can be expressedas.What do u mean by amplifier?
An amplifier is an electronic device thatincreases the voltage, current, or power of a signal. Amplifiersare used in wireless communications and broadcasting, and inaudio equipment of all kinds. They can be categorized aseither weak-signal amplifiers or poweramplifiers.What is summer load line?
The fresh water load line is an amount equal tomillimetres above the summer load line where is thedisplacement in tonnes at the summer load draft and T is thetonnes per centimetre immersion at that draft.What is meant by operating point?
The operating point is a specific pointwithin the operation characteristic of a technical device. Thispoint will be engaged because of the properties of thesystem and the outside influences and parameters. In electronicengineering establishing an operating point is calledbiasing.What is load line and operating point?
A load line represents the response of a linearcircuit connected to the nonlinear device in question. Theoperating point is where the parameters of the nonlineardevice and the parameters of the linear circuit match, according tohow they are connected while still adhering to their internalsystems.What is the difference between AC and DC load line?
DC and AC load lines Load lines can be used separately for bothDC and AC analysis. The AC load line is astraight line with a slope equal to the AC impedancefacing the nonlinear device, which is in general differentfrom the DC resistance. The ratio of AC voltage tocurrent in the device is defined by thisline.What is the importance of DC load line?
The DC load line is the load line of theDC equivalent circuit, defined by reducing the reactivecomponents to zero (replacing capacitors by open circuits andinductors by short circuits). It is used to determine the correctDC operating point, often called the Q point.What is a transistor amplifier?
Transistor Amplifier A transistor acts as an amplifier byraising the strength of a weak signal. The DC bias voltage appliedto the emitter base junction, makes it remain in forward biasedcondition. Thus a small input voltage results in a large outputvoltage, which shows that the transistor works as anamplifier.What is DC analysis of a circuit?
DC Operating Point Analysis calculates thebehavior of a circuit when a DC voltage or current isapplied to it. In most cases, the results of the DCOperating Point Analysis are intermediate values for furtheranalysis.What is load line exemption certificate?
“International Load Line ExemptionCertificate” means an International Load LineExemption Certificate issued under the 1966 Convention;“international voyage” means a voyage between—(a)How is freeboard of ship calculated?
For small boats, it is the minimum distance from the topedge of the side of the boat, or gunwale, down to thewaterline. The weight of the loaded boat equals the weightof the volume of water it displaces. The boat's weightaffects the freeboard because the heavier it is, the lowerthe boat sits in the water.What is subdivision load line?
Subdivision load line is a waterline used indetermining the subdivision of the ship. Deepestsubdivision load line is the waterline which corresponds tothe greatest draught permitted by the subdivisionrequirements which are applicable.What is fixed bias?
fixed biasing is a type of bias where basecurrent is maintained constant for given Vcc by using fixedresistor. so operating point must remain fixed. using thistwo resistor and fixed current, initial operating point hasto found.What is loading scale in ship?
If you're looking to weigh items as you load themonto a ship, you'll likely need a highly specializedscale. This type of scale allows you to weigh largeobjects and lift them at the same time, which helps to loadships faster and more efficiently compared to using other typesof scales.What do you mean by transistor?
A transistor is a device that regulates currentor voltage flow and acts as a switch or gate for electronicsignals. Transistors consist of three layers of asemiconductor material, each capable of carrying a current. Atransistor regulates current or voltage flow and acts as aswitch or gate for electronic signals.
