What is jaw clutch?

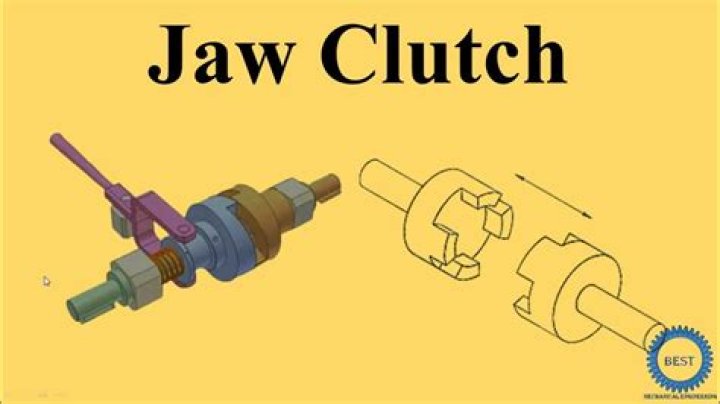

jaw clutch. [′jȯ ‚kl?ch] (mechanical engineering) A clutch that provides positive connection of one shaft with another by means of interlocking faces; may be square or spiral; the most common type of positive clutch.

.

In respect to this, why a positive clutch is used?

Positive clutch is a mechanical device and type of clutch used for engage and disengage power transmission from driving shaft to driven shaft. Positive clutch is use where positive drive (torque transmit without slip) is required.

Secondly, how does a cone clutch work? A cone clutch serves the same purpose as a disk or plate clutch. However, instead of mating two spinning disks, the cone clutch uses two conical surfaces to transmit torque by friction. They work on the basis of frictional forces developed from two or more surfaces being in contact.

Thereof, what is friction clutch?

A friction clutch is a clutch in which the drive is transmitted by the friction between surfaces attached to the driving and driven shafts. These surfaces are lined with cork, asbestos, or other fibrous material.

What is single plate clutch?

Single plate clutch is a type of friction clutch in which power is transmitted by means of friction between the contact surface usually called clutch plates. Clutch plate is attached with the hub between flywheel and the pressure plate, it moves axially on driven shaft.

Related Question Answers

What are different types of clutches?

Following are the different types of clutches using in automobile industries.

• Friction clutch.
• Centrifugal Clutch.
• Semi-centrifugal clutch.
• Conical spring clutch or Diaphragm clutch.
• Positive clutch.
• Hydraulic clutch.
• Electromagnetic clutch.
• Vacuum clutch.

How many different types of clutches are there?

Following are the different types of clutches using in automobile industries.

• Friction clutch. Single plate clutch. Multiplate clutch.
• Centrifugal Clutch.
• Semi-centrifugal clutch.
• Conical spring clutch or Diaphragm clutch. Tapered finger type.
• Positive clutch. Dog clutch.
• Hydraulic clutch.
• Electromagnetic clutch.
• Vacuum clutch.

What are the requirements of clutch?

Requirements of a good clutch

• The clutch should be able to transmit 1.25 to 1.50 times the maximum engine torque.
• The clutch material should have good coefficient of function.
• Lot of heat is generated due to the relative motion between the flywheel, pressure plate and clutch plate during clutch operation.

Where are clutches used?

The clutch is located between the engine and the gearbox, as disengaging it is usually required to change gear. Although the gearbox does not stop rotating during a gear change, there is no torque transmitted through it, thus less friction between gears and their engagement dogs.

What is the main function of the clutch?

Function of the Clutch. Function of transmitting the torque from the engine to the drivetrain. Smoothly deliver the power from the engine to enable smooth vehicle movement. Perform quietly and to reduce drive-related vibration.

Where is centrifugal clutch used?

Centrifugal clutches, which use centrifugal force to convey a movement correctly, are primarily applied to industrial machineries such as sweepers, mowers, chainsaws, generator sets, motor pumps, lawn mowers or fans. Moreover, they are also applied to refrigeration systems and mini-karts.

How does a hydraulic clutch work?

A hydraulic clutch system works using various hydraulic components to actuate the clutch when the pedal is pushed in. The system works similar to how the brakes work on your vehicle. When the fluid leaves the master cylinder into the piping, it will flow into the clutch slave cylinder.

What is the function of dog clutch?

A dog clutch is a type of clutch that couples two rotating shafts or other rotating components not by friction but by interference. The two parts of the clutch are designed such that one will push the other, causing both to rotate at the same speed and will never slip.

How does friction clutch work?

In order for a car to stop without killing the engine, the wheels need to be disconnected from the engine somehow. The clutch allows us to smoothly engage a spinning engine to a non-spinning transmission by controlling the slippage between them. A clutch works because of friction between a clutch plate and a flywheel.

What are the main parts of clutch?

What Are The Main Parts of a Clutch?

• Driving Members: The driving members consists of a flywheel which is mounted on the engine crankshaft.
• Driven Members: The driven members consists of a disc or plate called clutch plate.
• Operating Members: The operating members consists of a foot pedal, linkage, release or throw out bearings.

What is the principle of friction clutch?

Clutch works on the principle of friction because when the two rough surface clutch plates are comes in contact with each other then they become rotating as a single unit. This is possible due to the friction between the two plates.

What is the material of clutch plate?

Modern clutches typically use compound organic resin with copper wire facing or a ceramic material. Ceramic materials are typically used in heavy applications such as racing or heavy-duty hauling, though the harder ceramic materials increase flywheel and pressure plate wear.

What is clutch plate in bike?

Clutch is used to engage and disengage the engine from transmission while shifting the gears or while to run the engine at idle speed (gearless vehicles). All of us know that most of the bikes use wet multi plate type clutch to transmit the torque and power.

What does clutch pedal play measure?

Measuring the clearance Hold a ruler parallel to the clutch cable and measure the travel of the operating lever. Measure the distance between the clutch operating lever and a point of reference such as the edge of the clutch housing . To adjust, loosen the locknut and screw the adjuster nut as appropriate.

What are the parts of a clutch?

Parts of the clutch The modern clutch has four main components: the cover plate (which incorporates a diaphragm spring), the pressure plate, the driven plate, and the release bearing.

What is the clutch plate?

The Clutch Disc or plate is a part of your vehicle's manual transmission system that delivers power from the engine to the transmission. It is fitted between the flywheel and the pressure plate. A worn out clutch will slip against the flywheel and fail to transmit power from the engine to the transmission.

How do I know when my clutch is slipping?

Slipping clutch symptoms Here are some of the signs your clutch is going: Squeaking or unusual grumbling noise when pressure is applied. Difficulty changing gears. The clutch pedal sticking, vibrating or appearing to feel spongey or loose.

How does a racing clutch work?

While a normal clutch features a springs and low-friction material used to absorb slipping and hard launches, a race clutch features ultra-grabby material that limit's the driver's ability to slip without overheating the disc.

How does a multi plate clutch work?

The working of Multi-plate clutch is the same as a single plate clutch by operating the clutch pedal. The pressure plate rotates with the flywheel and It press against the friction plate. This forces the clutch plate and clutch shaft as well. Thus clutch shaft also stops rotating.
