What is included in design development documents?

The Design Development Documents shall illustrate and describe the refinement of the design of the Project, establishing the scope, relationships, forms, size and appearance of the Project by means of plans, sections and elevations, typical construction details, and equipment layouts.

.

Just so, what is included in design development phase?

Design Development: This phase involves finalizing the design and specifying such items as materials, window and door locations and general structural details. Design development usually yields a more detailed site plan as well as floor plans, elevations and section drawings with full dimensions.

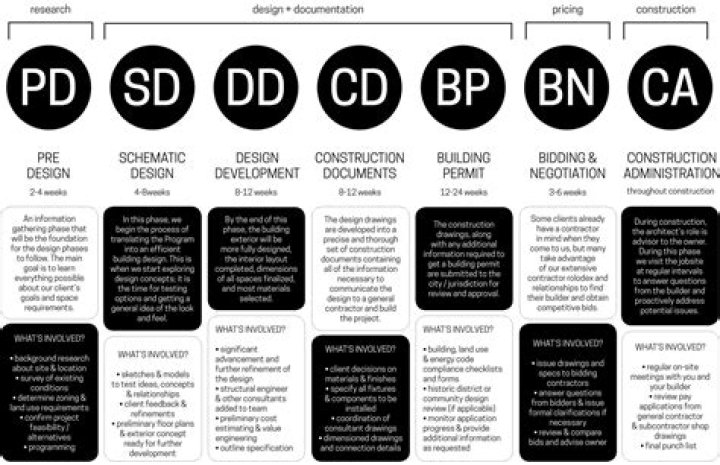

Similarly, what are the five phases of a design project? There are 5 design phases to architectural services. They are (in order) Schematic Design, Design Development, Construction Documents, Bidding, and Construction Administration. These phases are the breakdown of how architects define their design services. They are the steps of an architect's role in design.

Similarly, it is asked, what is included in schematic design?

Schematic Design Phase. The purpose of schematic design is to translate the project program into physical drawings of space. Schematic design includes a complete description of building systems (structural, mechanical, HVAC, plumbing and electrical), interior and exterior finishes and the building site.

What is a design development?

Design Development. The Design Development defines or refines and describes all important aspects of the project focusing on the selection of materials; development of technical specifications for detailed engineering and construction; and generation of construction drawings and document.

Related Question Answers

What are the phases of design?

There are 5 design phases to architectural services. They are (in order) Schematic Design, Design Development, Construction Documents, Bidding, and Construction Administration. These phases are the breakdown of how architects define their design services.

What happens during schematic design?

Schematic Design: Schematic design is the first phase. In this step, an architect talks with the client to determine the project requirements and goals. Schematic Design often produces rough drawings of a site plan, floor plans, elevations and often illustrative sketches or computer renderings.

What is design concept?

A design concept is the idea behind a design. It's how you plan on solving the design problem in front of you. It's the underlying logic, thinking, and reasoning for how you'll design a website. Your concept will lead to your choices in color and type. It'll choose your aesthetic and determine your grid.

What is the difference between concept design and schematic design?

During conceptual design, the owner is convinced that the design team has a vision worth pursuing. During schematic design, the design team convinces itself that the vision sold to the owner is in fact feasible.

What comes first schematic design VS design development?

The design development phase occurs after a schematic design has been chosen, but before finalized construction documents are produced. During the schematic design stage, the architect produces a number of drawings embodying different directions the project could take.

What is preliminary design?

Preliminary Design means the preliminary flow diagrams, general arrangement drawings, and Equipment sizing as described in the Design Contract. Preliminary Design means the submission of Contractor's Documents which comprise the initial stage of the design phase.

What is a schematic plan?

schematic plan. Scale drawing of a floor plan over which planners can move scale models of the equipment, machines, or other elements to determine their most effective placement.

What is scheme design in construction?

Scheme Design stage will generally be used for Planning Submission Stage. The scheme design will provide a developed stage of design that coordinates other design disciplines, such as Structural, Civils and Services to such a level to enable Contractor Costs to be obtained.

What is schematic design?

Schematic Design Phase. The purpose of schematic design is to translate the project program into physical drawings of space. Schematic design includes a complete description of building systems (structural, mechanical, HVAC, plumbing and electrical), interior and exterior finishes and the building site.

What is a schematic design report?

Manage the development of the schematic design The key deliverable at the end of this stage will be the schematic design report, which contains drawings and outline specifications for all design disciplines.

What is a bubble diagram?

Definition of a Bubble Diagram By definition, the bubble diagram is a freehand diagrammatic drawing made by architects and interior designers to be used for space planning and organization at the preliminary phase of the design process.

What is pre design planning?

Pre-design is the phase of analysis that occurs after some form of funding is available and before design begins. Funds may be available to develop a detailed project program or only to investigate certain technical issues in order to determine scope, budget, or project schedule.

What is included in construction documents?

The Construction Documents contain contract forms, conditions of the contract, specifications, and drawings. These requirements are a part of the Bidding Documents. During the Bidding Phase, addenda may be issued which also become a part of the Construction Documents.

What is a DD set of drawings?

DD - Design Drawings - Also called as ID Drawings (For Interiors) / Architectural Drawings (For Architecture) or IFT Drawings (Issued for Tender) - Generally in construction projects designer will design and provides to employer in order to Float tenders. These drawings were made progressively based on the CD Drawings.

What are the 12 steps of the design process?

Terms in this set (12)

• Define a problem. *Identify a problem that exists.
• Brainstorm. *Present ideas in group.
• Research and generate ideas.
• Identify criteria and specify constraints.
• Explore possibilities.
• Select an approach.
• Develop a design proposal.
• Make a model or prototype.

What are the 4 steps of the design process?

Through a rich and often boisterous discussion, four teachers collectively broke down the engineering design process into four main phases: problem definition, design exploration, design optimization, and design communication.

What are the five steps in the design process?

The five steps that make up the design thinking process: Empathize, Define, Ideate, Prototype, and Test.

Is schematic a design?

Schematic Design: Schematic design is the first phase. In this step, an architect talks with the client to determine the project requirements and goals. Schematic Design often produces rough drawings of a site plan, floor plans, elevations and often illustrative sketches or computer renderings.

What are the three sub phases of the design phase?

Three Phases of Design

• Research and Investigation. I) Research and Investigation is the key to developing design solutions.
• Concept and Design. II) Concept and Design is the phase when potential solutions are conceived and developed, based upon information gathered in the first phase.
• Implementation and Supervision.
