What is friction loss in duct?

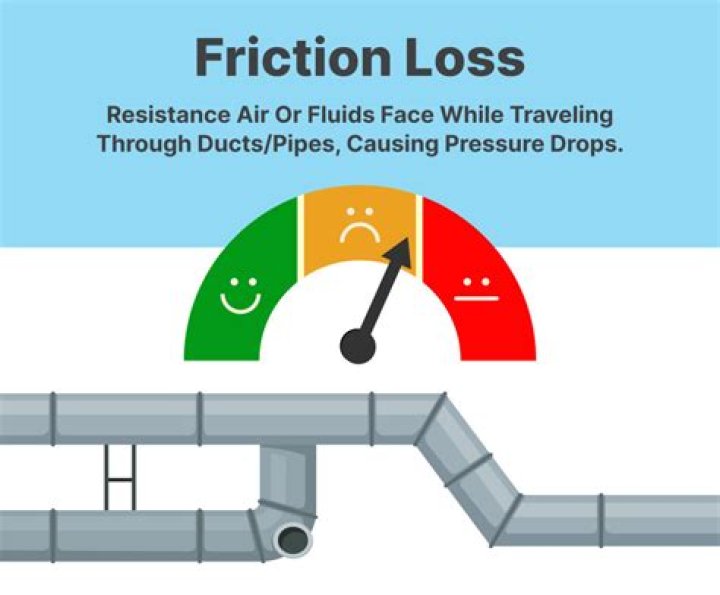

From Wikipedia, the free encyclopedia. In fluid flow, friction loss (or skin friction) is the loss of pressure or “head” that occurs in pipe or duct flow due to the effect of the fluid's viscosity near the surface of the pipe or duct.

.

Also question is, how do you find friction loss in a duct?

A major loss diagram for air ducts - Imperial units ranging 10 - 100 000 cfm

1. 1 inch water = 248.8 N/m² (Pa)= 0.0361 lb/in² (psi) = 25.4 kg/m² = 0.0739 in mercury.
2. 1 ft³/min (cfm) = 1.7 m³/h = 0.47 l/s.
3. 1 ft/min = 5.08x10^-3 m/s.
4. 1 inch = 25.4 mm = 2.54 cm = 0.0254 m = 0.08333 ft.

One may also ask, what is head loss in HVAC? Air Resistance In Ducts The efficiency of any given air path is generally measured by its resistance to air flow. This is its static pressure loss or "head loss." Head loss occurs in two ways: By fluid drag against the walls of the pipe itself, which is called major head loss.

Thereof, is friction loss the same as static pressure?

The static pressure (SP) is the combined resistance to airflow of the hood, straight ductwork, elbows, tran si tions, etc. Ductwork static pressure is figured as friction loss per 100 feet of duct at a certain CFM. This will be the static pressure caused by the ductwork.

Why is friction loss important?

The faster that water moves over the roughness of a pipe wall, the greater the turbulence of the water flow and the greater the energy (pressure) loss. Knowledge about friction loss is important for sizing pipes in an irrigation system. Friction loss is commonly expressed in terms of "psi per 100 feet of pipe".

Related Question Answers

What is the formula for static pressure?

There are two common ways to measure this pressure. The first and most common is to use the force exerted by the fluid divided by unit area. Another way to calculate static pressure is to determine the fluid's pressure head, or how far the fluid will rise when it's no longer constrained.

How do I calculate friction?

How to find force of friction

1. Choose the normal force acting between the object and the ground. Let's assume a normal force of 250 N.
2. Determine the friction coefficient.
3. Multiply these values by each other: 250 N * 0.13 = 32.5 N .
4. You just found the force of friction!

How do you size a duct system?

To calculate CFM, you need to know the size of your heating or cooling unit in tons. Multiply this number by 400, which is the average output of an HVAC unit. Then divide by the total square footage of your home. This will give you the multiplier for all your rooms' CFM.

How do you measure duct size?

How to Measure Ductwork

1. Measure the top width of the ductwork.
2. Measure the side height of the ductwork.
3. Ascertain the size of the ductwork.
4. Wrap a string or other flexible object completely around the circumference of the ductwork.
5. Unwrap the string and stretch it out on a flat surface.

What is static pressure loss?

Air resistance in ventilation system is mainly determined by air speed in this system. Air resistance grows directly proportional to air flow. This phenomenon is known as pressure loss. Static pressure produced by a fan causes air motion in the ventilation system with a certain resistance.

How much CFM do I need calculator?

How to Calculate the CFM of a Room

1. Measure the room's width and length.
2. Multiply the three measurements from step 1 to determine the cubic footage of the room.
3. Multiply the cubic volume of the room by the number of times you want the air to turn over or exchange in an hour.
4. Divide your answer from step 3 by 60 to calculate CFM.

What is equal friction method?

The Equal Friction method creates an initial guess for duct sizing by establishing a constant pressure loss per unit of duct length. Total pressure losses to each section of the critical path are assigned as the recommended pressure loss per unit of length multiplied by the actual section length.

What friction rate should be used to size a duct?

So, friction rate is usually given not as the pressure drop per foot but instead as the pressure drop per 100 feet. Let's redo our work now with that new convention. In this case, our friction rate is 0.073 iwc/100'. That's the number we use to size the ducts.

How do you read static pressure?

Insert the static pressure tip into the test port on the return side with the tip facing the airflow. Read and record the negative static pressure. Don't forget to insert port plugs into the test ports when you're done testing. STEP 6: Calculate the system's Total External Static Pressure by adding the two values.

What does CFM vs static pressure mean?

water static pressure and deliver a given airflow rate in cubic feet per minute (cfm) at a particular static pressure. water by delivering a cfm airflow rate similar to the cfm rate at much lower static pressures. The performance of a fan is defined as the amount of airflow in cfm at a given static pressure.

How do you increase airflow in air ducts?

3 Simple Ways to Improve Your Furnace's Airflow for More Comfort

1. Unblock and clean your vents. Here's a super easy way to increase air flow.
2. Change your filters and clean your return grill. A dirty air filter impedes air movement and makes it hard for your furnace to work efficiently.
3. Seal leaky ductwork. Snap on some goggles and a dust mask, it's time to check out your air ducts.

How do you find velocity with pressure?

Velocity pressure is calculated by taking the difference of the total pressure and static pressure. To measure the velocity pressure, connect a Pitot or averaging tube to a velocity sensor and place the tube into the air flow of the duct.

What is the unit of head loss?

Head-loss form Δh is the head loss due to pipe friction over the given length of pipe (SI units: m); g is the local acceleration due to gravity (m/s²).

What is friction slope?

Note: Manning's Equation can be rearranged to solve for slope (S), which is termed the friction slope, (Sf). The friction slope is part of the gradually varied flow used to solve for the water surface profile through a culvert.

What is loss coefficient k?

Defining K, the loss coefficient, by. allows for easy integration of minor losses into the Darcy-Weisbach equation. K is the sum of all of the loss coefficients in the length of pipe, each contributing to the overall head loss. Although K appears to be a constant coefficient, it varies with different flow conditions.

What does static head mean?

The static head, sometimes referred to as the pressure head, is a term primarily used in Hydraulics to denote the static pressure in a pipe, channel, or duct flow. It has the physical dimensions of length (hence the term "head") and represents the flow-work per unit weight of fluid.

What is minor head loss?

Pressure loss in straight pipes or ducts are called the major, linear or friction loss. Pressure loss in components like valves, bends, tees and similar are called the minor, dynamic or local loss. In fact - when a valve is closed or nearly closed - the minor loss is infinite.

What is meant by laminar flow?

Laminar flow occurs when a fluid flows in parallel layers, with no disruption between the layers. At low velocities the fluid tends to flow without lateral mixing, and adjacent layers slide past one another like playing cards.
