What is fit and its types?

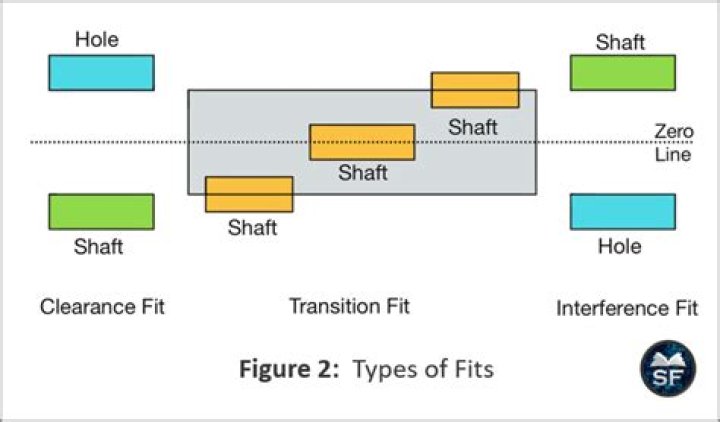

The three types of fit are: Clearance: The hole is larger than the shaft, enabling the two parts to slide and / or rotate when assembled. Location / transition: The hole is fractionally smaller than the shaft and mild force is required to assemble / disassemble.
.
Also, what is fit and types?
Fit is defined as a degree of tightness or looseness between two mating parts to perform definite function when they are assembled together. A fit may result either in a movable joint or a fixed joint. This type of fit between the shaft and hole will give the permanent type of fit and can be used as a solid component.
One may also ask, what is tolerance and its types? Tolerance is a range of how far a true measurement can range from what is intended. Physical tolerances specify the deviation from a specific dimension. Any dimension between any two points can have a tolerance. Limits are a type of tolerance that specifies a different lower and upper deviation.
Also know, what are the 3 types of tolerances?
Three basic tolerances that occur most often on working drawings are: limit dimensions, unilateral, and bilateral tolerances. Limit dimensions are two dimensional values stacked on top of each other.
What are the different types of fits we use in the United States?
Types of Fits In Engineering
- Clearance Fit.
- Interference Fit.
- Transition Fit.
What is a fit medical definition?
Medical Definition of fit (Entry 1 of 3) 1 : a sudden violent attack of a disease (as epilepsy) especially when marked by convulsions or unconsciousness : paroxysm. 2 : a sudden but transient attack of a physical disturbance fits of shivering. fit.What is h7 tolerance?
International Tolerance grades For example: H7 (hole, tapped hole, or nut) and h7 (shaft or bolt). H7/h6 is a very common standard tolerance which gives a tight fit. For a shaft of the same size, h6 would mean 10+0−0.009, which means the shaft may be as small as 0.009 mm smaller than the base dimension and 0 mm larger.What is a running fit?
running fit. [′r?n·iŋ ¦fit] (design engineering) The intentional difference in dimensions of mating mechanical parts that permits them to move relative to each other.What is a transition fit used for?
Transition fits are a compromise between clearance and interference fits. They are used for applications where accurate location is important but either a small amount of clearance or interference is permissible. As shown in Figure 3.3, there is overlapping of tolerance zones of the hole and shaft.What is a slip fit?
Slip Fit Basics Obvious from the name “slip fit” is this: The parts must have minimal assembly friction. The goal of a slip fit is easy alignment, requiring enough space around the dowel that alignment is easier: no excessively tight fits. Slip fit pins allow separation of the locating requirements from bolts.What is tolerance in drawing?
Tolerance is the total amount a dimension may vary and is the difference between the maximum and minimum limits. Tolerance = 0,3 mm. Tolerances are represented as Tolerance Values (A) or as Direct Limits (B).What is limit system?
In mechanical engineering System of limits or Limit System is a concept of controlling the sizes of machine elements while manufacturing of each component. these are the two bases of the limit system.What is limit engineering?
The subject of Limits Fits and Tolerances can sometimes be a little confusing for practising engineers and technicians. 'The extreme permissible values of a dimension are known as limits. The degree of tightness or looseness between two mating parts that are intended to act together is known as the fit of the parts.What do you mean by limit?
Limit (mathematics) In mathematics, a limit is the value that a function (or sequence) "approaches" as the input (or index) "approaches" some value. Limits are essential to calculus (and mathematical analysis in general) and are used to define continuity, derivatives, and integrals.Why do we need GD&T?
GD&T, a vital part of complex machining, offers a number of major advantages: Saving Money — GD&T enhances design accuracy by allowing for appropriate tolerances that maximize production. For many projects, the process provides extra or bonus tolerances, further increasing cost effectiveness.How is tolerance decided?
Tolerances are chosen initially from the middle of the range for each dimension and process, then adjusted to match the design limits and reduce production costs.What is GDT used for?
GD&T stands for Geometric Dimensioning and Tolerancing. It is a system of symbols, rules and definitions used to define the geometry of mechanical parts. GD&T is one of the most powerful tools available that can improve quality, reduce cost and shorten delivery time.What is the importance of tolerance?
