What is colorimetric capnography? | ContextResponse.com
• Colorimetric End-Tidal CO2 Monitoring. A. End-tidal CO2 (EtCO2) is a measurement of carbon dioxide in the airway at the end of each breath. Capnography provides a numeric reading of the EtCO2 and a graphic display (waveform) of CO2.
.
Subsequently, one may also ask, what color does the co2 detector change?
yellow

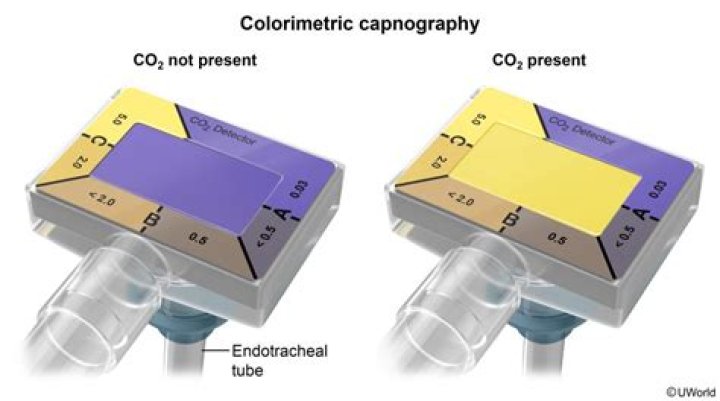

Additionally, what is a colorimetric device? Colorimetric capnography is a qualitative-type device that uses a pH-sensitive impregnated paper that attaches to the end of an endotracheal tube or is built into the exhalation valve of the bag-valve ventilation device. The built-in paper changes from purple to yellow in the presence of exhaled CO2.
In respect to this, how does a colorimetric co2 detector work?
The detector attaches directly to the endotracheal tube and responds quickly to exhaled CO2 by changing from purple to yellow. Product Features: Reliable carbon dioxide detectors help verify endotracheal tube placement. Responds quickly to exhaled CO2 with a color change from purple to yellow.
What is waveform capnography?
Quantitative waveform capnography is the continuous, noninvasive measurement and graphical display of end-tidal carbon dioxide/ETCO2 (also called PetCO2). Capnography uses a sample chamber/sensor placed for optimum evaluation of expired CO2. Two very practical uses of waveform capnography in CPR are: 1.)
Related Question AnswersHow is capnography measured?
Waveform capnography represents the amount of carbon dioxide (CO2) in exhaled air, which assesses ventilation. It consists of a number and a graph. The number is capnometry, which is the partial pressure of CO2 detected at the end of exhalation. This is end-tidal CO2 (ETCO2) which is normally 35-45 mm Hg.What is capnography monitoring?
Capnography is the monitoring of the concentration or partial pressure of carbon dioxide (CO. 2) in the respiratory gases. Its main development has been as a monitoring tool for use during anesthesia and intensive care. It is usually presented as a graph of expiratory CO.What is the difference between etco2 and PaCO2?
However, the normal overall V/Q is 0.8. Under normal physiologic conditions, the difference between arterial PCO2 (from ABG) and alveolar PCO2 (ETCO2 from capnograph) is 2-5 mmHg. This difference is termed the PaCO2 – PETCO2 gradient or the a-ADCO2 and can be increased by: COPD (causing incomplete alveolar emptying).What is the normal range for capnography?
Normal Capnography Values ETCO2 35-45 mm Hg is the normal value for capnography. However, some experts say 30 mm HG – 43 mm Hg can be considered normal.What causes low etco2?
Hemorrhage is a common cause of rapid decrease in ETCO2. Thromboembolus abruptly reduces pulmonary perfusion and increases alveolar dead space, abruptly reducing ETCO2. Air embolus abruptly reduces pulmonary perfusion and increases alveolar dead space, abruptly reducing ETCO2.How does a Capnometer work?
Basic Principle of how it works Amount of infrared rays absorbed is proportional to the concentration of the infrared absorbing substance. The CO2 analyser works on this principle. More the CO2 present, more is the infrared rays absorbed.What does high end tidal co2 mean?
An elevated EtCO2 level is typically an indication of hypoventilation or increased metabolic activity. A low exhaled CO2 level may be an indication of hyperventilation, decreased cardiac output or poor pulmonary perfusion, which can occur in shock.How do you use a co2 detector?
Place the alarm at least 15 feet away from fuel-burning appliances. Make sure nothing is covering or obstructing the unit. Do not place the unit in dead air spaces or next to a window or door. Test the carbon monoxide alarm once a week by pressing the test/reset button.What is the difference between capnography and Capnometry?
Capnography comprises the continuous analysis and recording of carbon dioxide concentrations [CO2] in respiratory gases. Although the terms capnography and capnometry are sometimes considered synonymous, capnometry suggests measurement (ie, analysis alone) without a continuous written record or waveform.Why are carbon dioxide detectors used?
[1] On the most basic level, end-tidal CO2 (ETCO2) detectors are used to measure the exhaled concentration of carbon dioxide. The concentration of exhaled CO2 correlates to the arterial concentration of CO2, although multiple factors can impact the relationship.What is petco2?
BACKGROUND: End-tidal carbon dioxide (PETCO2) is a surrogate, noninvasive measurement of ar- terial carbon dioxide (PaCO2), but the clinical applicability of PETCO2 in the intensive care unit remains. unclear.What is end tidal co2 monitoring?
End-tidal CO2 (EtCO2) monitoring is a noninvasive technique which measures the partial pressure or maximal concentration of carbon dioxide (CO2) at the end of an exhaled breath, which is expressed as a percentage of CO2 or mmHg. The normal values are 5% to 6% CO2, which is equivalent to 35-45 mmHg.Why is capnography important?
Capnography can readily determine if a seizing patient is apneic or breathing and whether their breathing is effective or ineffective. In patients with acute respiratory distress, waveform capnography helps to assess the degree of airway flow obstruction and (numerically) illustrates the effectiveness of ventilation.What is the use of capnography?
It is well recognized that capnography can be used to detect displaced tracheal tubes and tracheostomy tubes and to diagnose inadvertent oesophageal intubation. In addition, capnography has other uses in ICU relating to airway management and monitoring of respiratory and cardiovascular function.What does Rosc mean in medical terms?
Return of spontaneous circulationWhat 2 things can quantitative capnography be used for?
What 2 things can quantitative capnography be used for? -Quantitative capnography: ETT placement, CPR is adequate.What are the three types of etco2 monitors?
