What is cable and connector?

1. Alternatively referred to as a cord, connector or plug, a cable is one or more wires covered in plastic that transmit power or data between devices or locations. There are two main types of computer cables, a data cable and a power cable. A data cable is a cable that provides communication between devices.

.

Accordingly, what are the different types of cable connectors?

Computer Cable types and descriptions

• VGA Cable. Also known as D-sub cable, analog video cable.
• DVI Cable. Connect one end to: computer monitor.
• PS/2 Cable. Connect one end to: PS/2 keyboard, PS/2 mouse.
• Ethernet Cable. Also known as RJ-45 cable.
• 3.5mm Audio Cable.
• USB Cable.
• Computer Power Cord (Kettle Plug)

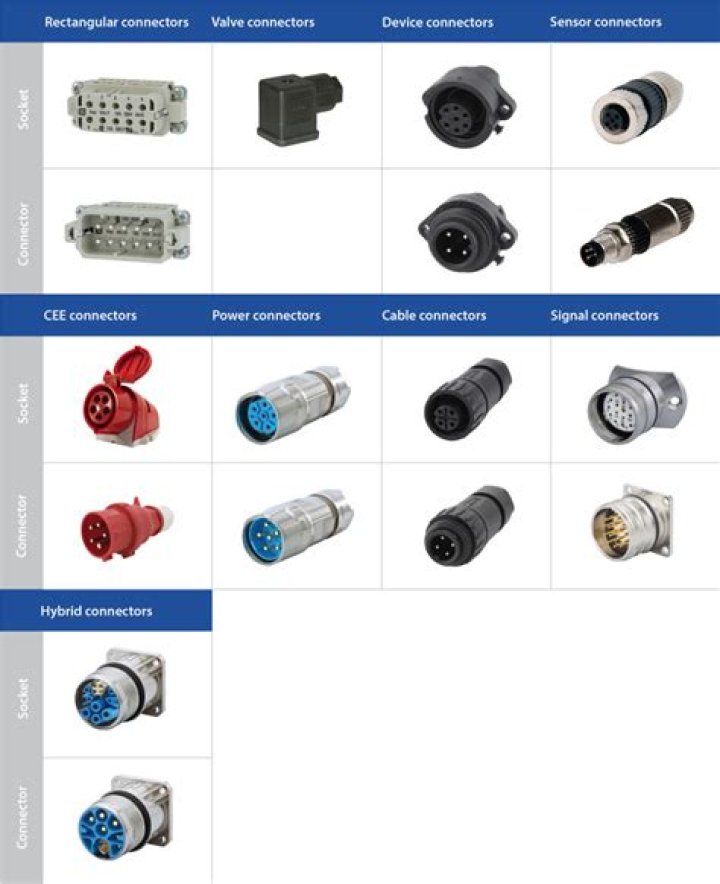

Likewise, what are the 3 types of connectors? There are three types cable connectors in a basic cabling installation techniques: twisted-pair connectors,coaxial cable connectors and fiber-optic connectors.

Likewise, people ask, what is the difference between a port and a connector?

A connector is the unique end of a plug, jack, or the edge of a card that connects into a port. Port: The port has either holes or a slot that matches the plug or card being connected into the port. For example: cables are plugged into Ethernet ports, and cables and flash drives are plugged into USB ports.

What are the different types of connectors?

Analog Audio Connectors:

• RCA Connectors:
• XLR Connectors:
• XLR Male: This is used to connect a variety of hardware inputs.
• XLR Female: It is used to connect a microphone and a variety of hardware inputs.
• TRS: It is used to connect both input and output devices.
• ¼” Audio Connectors:
• S/PDIF:
• AES/EBU:

Related Question Answers

What is Cable and types of cable?

Different types of network cables, such as coaxial cable, optical fiber cable, and twisted pair cables, are used depending on the network's physical layer, topology, and size. Electrical connections using twisted pair or coaxial cable are used within a building.

Do DisplayPort cables matter?

Despite what you may read, there is no such thing as a DisplayPort 1.1 cable and DisplayPort 1.2 cable. All standard DisplayPort cables support RBR, HBR (High Bit Rate), and HBR2 (High Bit Rate 2), which can support 4K at 60Hz, or up to four 1080p displays using multi-stream.

What is a cable adapter?

The TV Adapter is a small device that lets you enjoy content from an all-digital cable network, right on your analog TV. Even if your TV has an embedded electronic program guide, you'll need to use your TV Adapter remote control to change and tune channels.

What do you mean by serial port?

In computing, a serial port is a serial communication interface through which information transfers in or out sequentially one bit at a time. Throughout most of the history of personal computers, data was transferred through serial ports to devices such as modems, terminals, and various peripherals.

What is a SATA cable?

SATA. Stands for "Serial Advanced Technology Attachment," or "Serial ATA." It is an interface used to connect ATA hard drives to a computer's motherboard. SATA cables can be as long as one meter, while PATA cables max out at 40cm.

What is a cable cord called?

Alternatively referred to as a cord, connector or plug, a cable is one or more wires covered in plastic that transmit power or data between devices or locations. Other popular examples of data cables include the CAT5, IDE/EIDE, SATA, and USB cables. A power cable is any cable that powers the device.

What are the five common audio ports?

Click on the links below for more information on connection types, jacks and ports.

• Optical.
• Coaxial.
• HDMI.
• RF Coax.
• A/V Jacks.
• Analog Audio (RCA) – Two Speakers.
• Digital (Compressed) – Five Speakers.

What is a c2g cable used for?

C2G is an industry leading manufacturer of high performance cabling and connectivity solutions. Founded in 1984 as Cables To Go, C2G provides end-to-end connectivity solutions serving a variety of markets–including corporate, digital signage, education, healthcare, home theater, and hospitality.

What are the different types of ports on a computer?

16 Types of Computer Ports and Their Functions

• PS/2.
• Serial Port. DB-25. DE-9 or RS-232 or COM Port.
• Parallel Port or Centronics 36 Pin Port.
• Audio Ports. Surround Sound Connectors or 3.5 mm TRS Connector.
• S/PDIF / TOSLINK.
• Video Ports. VGA Port.
• Digital Video Interface (DVI) Mini-DVI. Micro-DVI.
• Display Port.

What is the importance of ports?

Ports are also important for the support of economic activities in the hinterland since they act as a crucial connection between sea and land transport. As a supplier of jobs, ports do not only serve an economic but also a social function.

What is a cable connector?

)The part of a cable that plugs into a port or interface to connect one device to another. Most connectors are either male (containing one or more exposed pins) or female (containing holes in which the male connector can be inserted).

Why is it called a jack plug?

Jack was first used of telephony, at least according to the OED's account, in 1891, referring to that special electrical socket Apple is obsolescing. Plugging this socket is a jack plug, or now just jack, attested by 1931. And so the various tools and technologies took the name of the man they stood in for: Jack.

What is the role of ports and connectors?

A port is a connector at the back or side of a computer where you plug in an external device such as a printer, keyboard, scanner, mouse, or modem. This connection allows instructions and data to flow between the computer and the device.

What is a plug called?

This type of connector is also known as a plug. A male connector can be recognized by the fact that, when it is disconnected or removed, the unshielded electrical prongs are plainly visible. The most common male connector is a two- or three-prong plug attached to the end of the cord for an electrical appliance.

What is a port on a computer?

1. When referring to a physical device, a hardware port or peripheral port is a hole or connection found on the front or back of a computer. Ports allow computers to access external devices such as printers. Below is a short listing of the different computer ports you may find on a computer.

What is the plug in part of a charger called?

It is simply the Lightning Cable or USB to Lightning cable. The small square piece the USB end of the cable plugs in to is called the wall adapter or power adapter.

What is port and its types?

A hardware port is a physical connection on a computer or another electronic device. Common ports on modern desktop computers include USB, Thunderbolt, Ethernet, and DisplayPort. Previous generations of computers used different ports, such a serial ports, parallel ports, and VGA ports.

What is a connector in grammar?

Key points : Connectors - also called conjunctive words - are words that link two similar elements in a sentence. The four categories of connector are. coordinating conjunctions, such as and or or, subordinating conjunctions such as if, so that, because or while. and.

What is a connector person?

The Connector, according to Gladwell, is a person who is able to make connections between what seem to be very different and disparate people and ideas. They are the ones who seem to know everyone, and are always trying to connect people and their ideas.
