What is Bob weight crankshafts?
Every high-performance crankshaft has a specific bob weight value, such as 1,800 grams. A gram is a metric measurement equivalent to 11/428 ounce. An 1,800-gram bob weight is basically the amount of weight in each of the counterweights. However, you don't just add all the values up to determine bob weight.
.
Also to know is, why do crankshafts have counterweights?
Counterweights are used because they nullify the reaction caused by the rotation. This is helpful because it helps in achieving higher RPM's in an engine and makes the engine run smoothly. What are the forces that are stressing the crankshaft in an internal combustion engine?
Subsequently, question is, what is the weight of a crankshaft? Weighs an impressive 104 grams! The same size steel piece only weighs 47 grams. Tungsten heavy metal crankshaft balancing weights for tuning imbalances and removing vibrations in high-performance large diesel engines in cars, aircraft, Formula 1, and more. Measured at 0.628” x 1.20” length – 0.23 pounds.
One may also ask, how is the crankshaft usually balanced?
If the counterweights are the correct weight to offset the weight of the rods and pistons, the crankshaft is balanced. This is usually done by drilling a hole in the counterweight and filling the hole with "heavy metal" or "mallory".
How much does it cost to balance a rotating assembly?
As for the cost, most balance jobs price in at around $200 and typically take up to two hours to complete—of course, this is assuming everything checks out clean. If weight has to be added for a perfect balance, you can expect the price and the amount of time it takes to get the job done to go up accordingly.
Related Question AnswersHow do you know if your crank is internally balanced?
Internal Balance An internally balanced engine has all the counterweight on the crank. External parts like the balancer and flexplate/flywheel have a neutral balance. They will not affect the other rotating parts.Why do some Pistons have a contoured face?
The body of the piston of the present invention is contoured in manner to reduce the undesirable build-up of oil pressure that frequently occurs at the oil control ring or rings when the piston is in operation.How do crankshafts work?

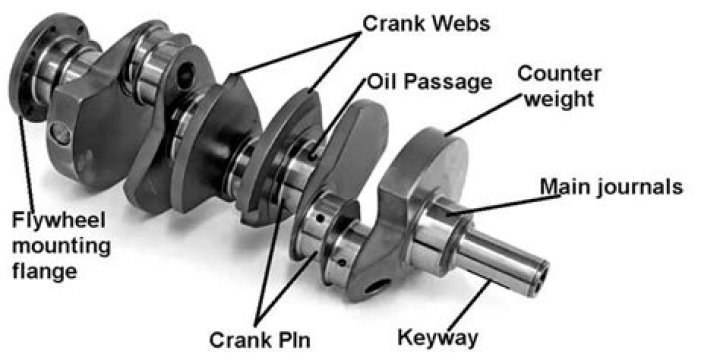

A crankshaft is a fundamental feature in a vehicle's engine. It is the system that converts linear energy into rotational energy. All the pistons in the engine are attached to the crank which is also connected to the flywheel. The crank works in association with other engine components to achieve a synchronized motion.How do they make crankshafts?
The most common construction methods for crankshafts are forging (usually through roll forging) or casting. Most crankshafts are made in a single piece, however some smaller and larger engines use crankshafts assembled from multiple pieces.What causes crankshaft damage?
Crankshaft bearings can wear out due to:- excessive heat (if the oil doesn't provide sufficient cooling)
- pressure.
- etching or corrosion due to exposure to chemicals or acid in contaminated oil.
- exposure to dirt or debris in the oil, which will scratch the bearings (in turn scratching the engine parts they contact)
What holds the crankshaft in place?
In a piston engine, the main bearings are the bearings which hold the crankshaft in place and allow it to rotate within the engine block. The number of main bearings per engine varies between engines, often in accordance with the forces produced by the operation of the engine.Where is the crankshaft position sensor located?
The location of the crankshaft position sensor can vary from one vehicle to another. Obviously it must be close to the crankshaft, so it is most often located on the front underside of the engine. It can usually be found mounted to the timing cover. Sometimes it may be mounted at the rear or the side of the engine.How do you calculate Bob weight?
An 1,800-gram bob weight is basically the amount of weight in each of the counterweights. However, you don't just add all the values up to determine bob weight. The formula is 100 percent of the rotating weight plus 50 percent of the reciprocating weight.Can I change Pistons without balancing?
There is no need to balance the entire assembly. Just bring your new pistons with one old piston to a machine shop and they can lighten the new ones to be the same weight as the old. Very often when you get a new set of TRW or similar quality brands they are not all of equal weight.Do you have to balance rotating assembly?
It will still run and you may not notice anything but an engine put together with non factory parts in the rotating assembly should always be balanced for a smoother running engine and longer life before it beats the bearings out.Do I need to balance my engine?
Street engines do not necessarily need balancing. Except for a couple of rare occasions, almost no factory engine ever came fully balanced, even most "performance" engines weren't balanced. Balancing helps an engine run smoother with less vibration which creates less havoc on main bearings and helps things last longer.How do you remove a crankshaft from an engine?
How to Remove a Crankshaft From Under the Car- Remove the engine's belts.
- Remove the pulley which attaches to the harmonic balancer.
- Remove the harmonic balancer.
- Drain the radiator by removing the radiator's drain plug.
- Remove the water pump.
- Remove the timing chain cover.
- Remove the timing chain.
- Remove the oil pan.
