What is beam height on a boat?

Overall Length is measured from the tip of the bow to the center of the stern. Overall Height is measured from the bottom of the keel to the highest non-removable part of the boat. Beam is measured from the widest point of the boat, including the rub-rail.

Subsequently, one may also ask, what does the beam mean on a boat?

The beam of a ship is its width at its widest point.

how is beam measured on a boat? In simple terms, when measuring a ship at the widest point on the waterline that is known as, “Waterline Beam” whereas above, “Beam” is the widest part of the vessel. The reason for this is the cargo ship's width and flatter bottom make it incredibly stable in the water.

Also question is, what is the height of a boat?

The overall height of your boat is the distance between the keel and highest part of the vessel. This dimension is important for three reasons: Safety of your boat: After spending your money on the luxurious vessel, safety is at the top of your mind.

What is beam and draft on a boat?

Beam: It's width at the widest point, the more narrow it is when compared to length generally the faster the ship was designed to go but with a loss of stability. Draft: The distance from the waterline to the bottom of the hull. AKA: how much of the ship is physically in the water.

What part of the boat is the beam?

In simple terms, when measuring a ship at the widest point on the waterline that is known as, “Waterline Beam” whereas above, “Beam” is the widest part of the vessel.

What is deadrise on a boat?

A boat's deadrise is the amount of angle that forms between the boat bottom and a horizontal plane on either side of center keel. The deadrise angle is the least (meaning flattest) at the transom and gradually increases (more vee) as the bottom goes forward and then increases at a greater rate at the bow.

How do you measure the height of a boat?

How to Measure Your Boat for Transport

Overall Length is measured from the tip of the bow to the center of the stern.
Overall Height is measured from the bottom of the keel to the highest non-removable part of the boat.
Beam is measured from the widest point of the boat, including the rub-rail.

What is the depth of a boat?

The depth is measured at the middle of the length, from the top of the keel to the top of the deck beam at the side of the uppermost continuous deck. Draft is measured from the keel to the waterline, while freeboard is measured from the…

What is the LWL of a boat?

waterline length

What is chine width on a boat?

A chine in boat design is a sharp change in angle in the cross section of a hull. A hull without chines has a gradually curving cross section. A hard chine is an angle with little rounding, where a soft chine would be more rounded, but still involve the meeting of distinct planes.

What does draft mean on a boat?

The draft or draught of a ship's hull is the vertical distance between the waterline and the bottom of the hull (keel), with the thickness of the hull included; in the case of not being included the draft outline would be obtained. Draft determines the minimum depth of water a ship or boat can safely navigate.

What is abaft the beam?

Abaft the beam. See under Beam. (Naut.) in an arc of the horizon between a line that crosses the ship at right angles, or in the direction of her beams, and that point of the compass toward which her stern is directed.

What is a good size fishing boat?

If you have no desire to venture offshore for your fishing, then a bay boat may be the perfect buy for you. They typically range from 16 to 24 feet in length and often come with smaller, economical, (compared to center consoles and walkarounds) single outboard motors in the 100 to 200 hp range.

How would you measure a boat?

Overall Length is measured from the tip of the bow to the center of the stern. Include bow pulpits, swim platforms, motor brackets and the length of the motors, or out drives in the raised position. Overall Height is measured from the bottom of the keel to the highest non-removable part of the boat.

How long is a small boat?

Length of Vessel By Class

Small Boat Category	Definition
Class I	16 to less than 26 feet length overall
Class II	26 to less than 40 feet length overall
Class III	40 to 65 feet length overall
Small Research Vessel (SRV)	greater than 65 feet length overall but less than 300 gross tons

How do you measure the depth of a boat?

The vessel's depth is measured vertically from the lowest point of the hull, ordinarily from the bottom of the keel, to the side of any deck that you may choose as a reference point. Therefore, it has to be stated in specific terms such as depth to upper deck amidships.

How do ships float?

A ship floats because its average density is relatively small. Divide its total mass (its own mass plus that of its contents) by its volume and you get its average density. That's less than the density of a solid metal box or a metal box filled with water, and that's why the ship floats.

What is Max Draft?

The maximum and minimum drafts refer to whether your drive leg is up or down so 3 feet of water is enough even with the leg fully down. If the bottom is mud its also less of an issue but would check tide hights at low water springs just be on safe side.

What is boat bridge clearance?

Total Height is measured from the bottom of the keel to the highest non-removable part of the boat. The typical bridge clearance in the USA is 13'6" to 14'. The draft which is the distance from the bottom of the keel to the waterline plus from the waterline to the highest part of the vessel equal the standing height.

How much of a ship is under water?

When loaded, ships are around 35 feet deep, depending on the type. If the full height is 80 feet, then it's about 40% under water by its crossection. By weight, a much higher % is under water.

How do you read a vessel draft?

Draft marks are numbers marked on each side of the bow and stern of the vessel. Draft marks show the distance from the bottom of the keel to the waterline. The draft numbers shown in the figure are 6 inches high and 6 inches apart. The bottom of each number shows the foot draft mark.

What is the draft measurement on a boat?

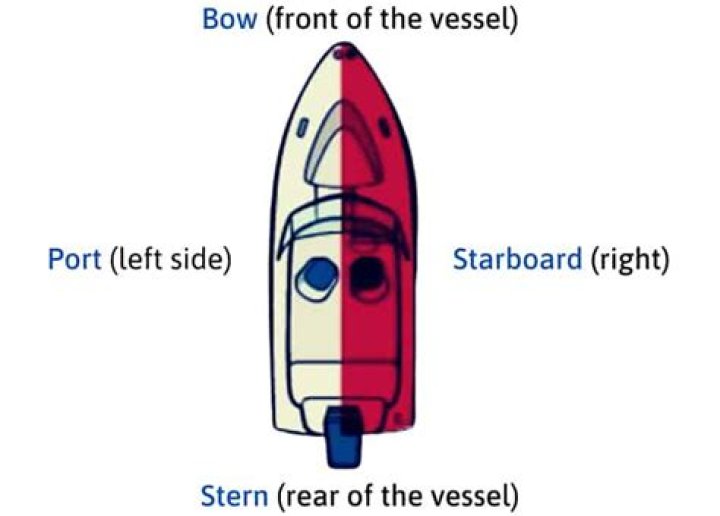

What are the 4 sides of a boat called?

What Are The Front, Back, Left and Right of a Boat Called?

The front of a boat is called the bow, while the rear of a boat is called the stern.
When looking towards the bow, the left-hand side of the boat is the port side.
And starboard is the corresponding word for the right side of a boat.
